SAMPLE LAYOUTS

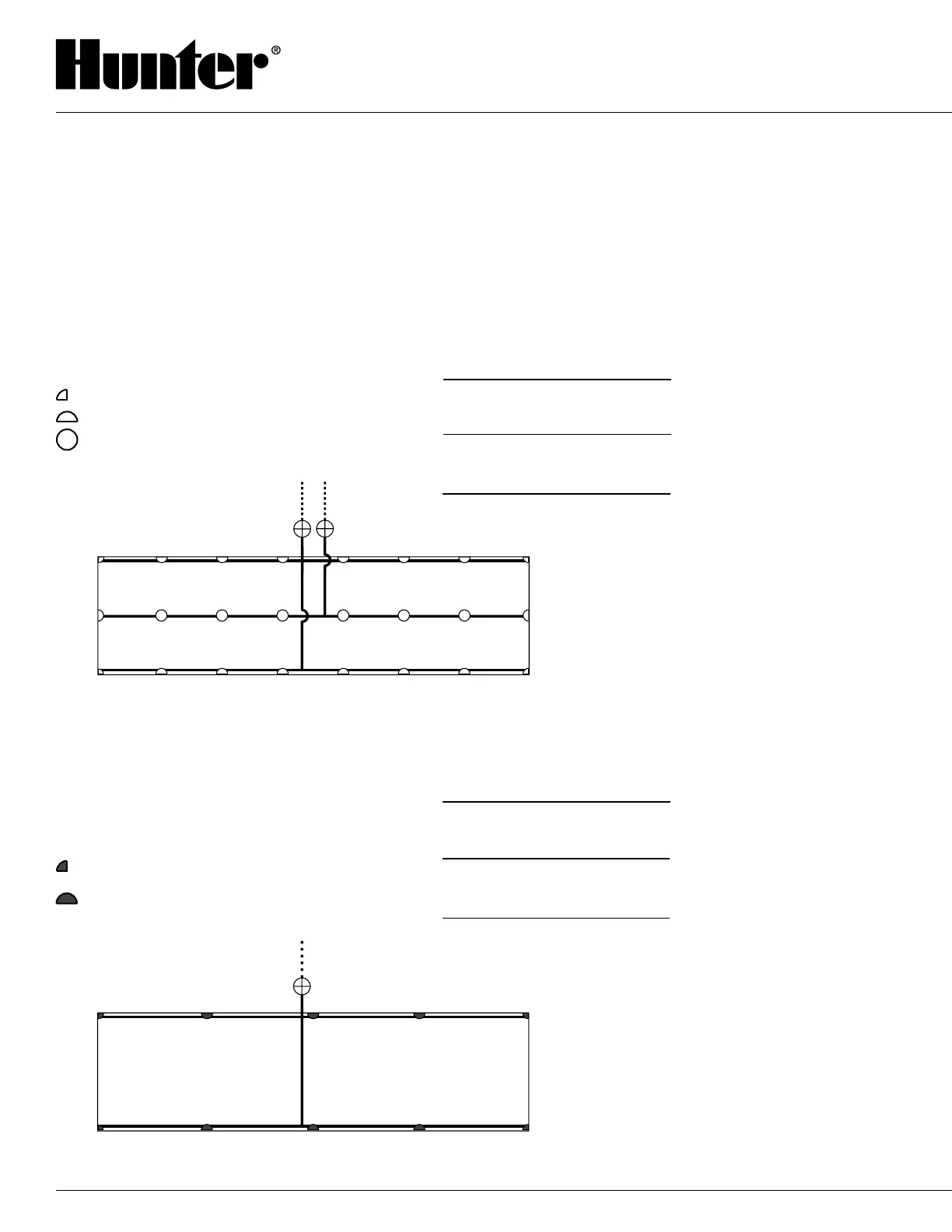

3-Row Spray Head System versus PGJ Rotor 2-Row System
Typically, in long and narrow landscapes, three rows of spray heads have been installed to
irrigate the areas. Now, with the PGJ, two rows can irrigate the same area, more efciently,
while saving dollars on piping, valves, stations on the controller, trenching, labor and most
importantly, water use!
PS 3-Row Spray System
Zone #1=18.8 GPM (4.27 m
3
/hr; 71.17 l/min)
Zone #2=15.8 GPM (3.59 m
3
/hr; 59.81 l/min)
.... PS 04 12A 90° .8 GPM (0.18 m
3
/hr; 3.0 l/min)
.. PS 04 12A 180° 1.3 GPM (0.30 m
3
/hr; 4.9 l/min)
.. PS 04 12A 360° 2.2 GPM (0.50 m
3
/hr; 8.3 l/min)
PGJ 2-Row Rotor System
Saves installation time and labor,
and reduces material costs.
Zone #1=16 GPM
.... PGJ 04 90° #1.0 1.0 GPM (0.23 m
3
/hr; 3.8 l/min)
.. PGJ 04 180° #2.0 2.0 GPM (0.45 m
3
/hr; 7.6 l/min)
96.25 x 34.6 gpm (total gpm for area)
1932 sq. ft. (23' x 84' = total area)
= 1.72"/hr
96.25 x 16 gpm (total gpm for area)
1932 sq. ft. (23' x 84' = total area)
= .80"/hr
PS Spray 3-Row System Precipitation Rate:
PGJ 2-Row Rotor System Precipitation Rate:
130.9 l/min x 60
179.5 m
2
(7.0 m x 25.6 m = total area)
= 44 mm/hr
7.85 m
3
/hr x 1000
179.5 m
2
(7.0 m x 25.6 m = total area)
= 44 mm/hr
60.6 l/min x 60
179.5 m
2
(7.0 m x 25.6 m = total area)
= 20 mm/hr
3.63 m
3
/hr x 1000
179.5 m
2
(7.0 m x 25.6 m = total area)
= 20 mm/hr
96.25 x 34.6 gpm (total gpm for area)
1932 sq. ft. (23' x 84' = total area)
= 1.72"/hr
96.25 x 16 gpm (total gpm for area)
1932 sq. ft. (23' x 84' = total area)
= .80"/hr
PS Spray 3-Row System Precipitation Rate:
PGJ 2-Row Rotor System Precipitation Rate:
130.9 l/min x 60
179.5 m
2
(7.0 m x 25.6 m = total area)
= 44 mm/hr
7.85 m
3
/hr x 1000
179.5 m
2
(7.0 m x 25.6 m = total area)
= 44 mm/hr
60.6 l/min x 60
179.5 m
2
(7.0 m x 25.6 m = total area)
= 20 mm/hr
3.63 m
3
/hr x 1000
179.5 m
2
(7.0 m x 25.6 m = total area)
= 20 mm/hr
#1 #2
23'
(7.0 m)
84'
(25.6 m)
10
