14 4. Detailed Operation Instructions RL, RLHD OPERATION MANUAL
4.2 Chocking Procedure
Adjust the turning angle gauges (with lock pins installed) to match the tread width of
the vehicle.
Carefully drive the vehicle onto the runways until the front wheels are centered on the
turning angle gauges.
Place the transmission in PARK, and SET the emergency brake.
Place a wheel chock, 22-422-2, at the front and rear of the left rear wheel.

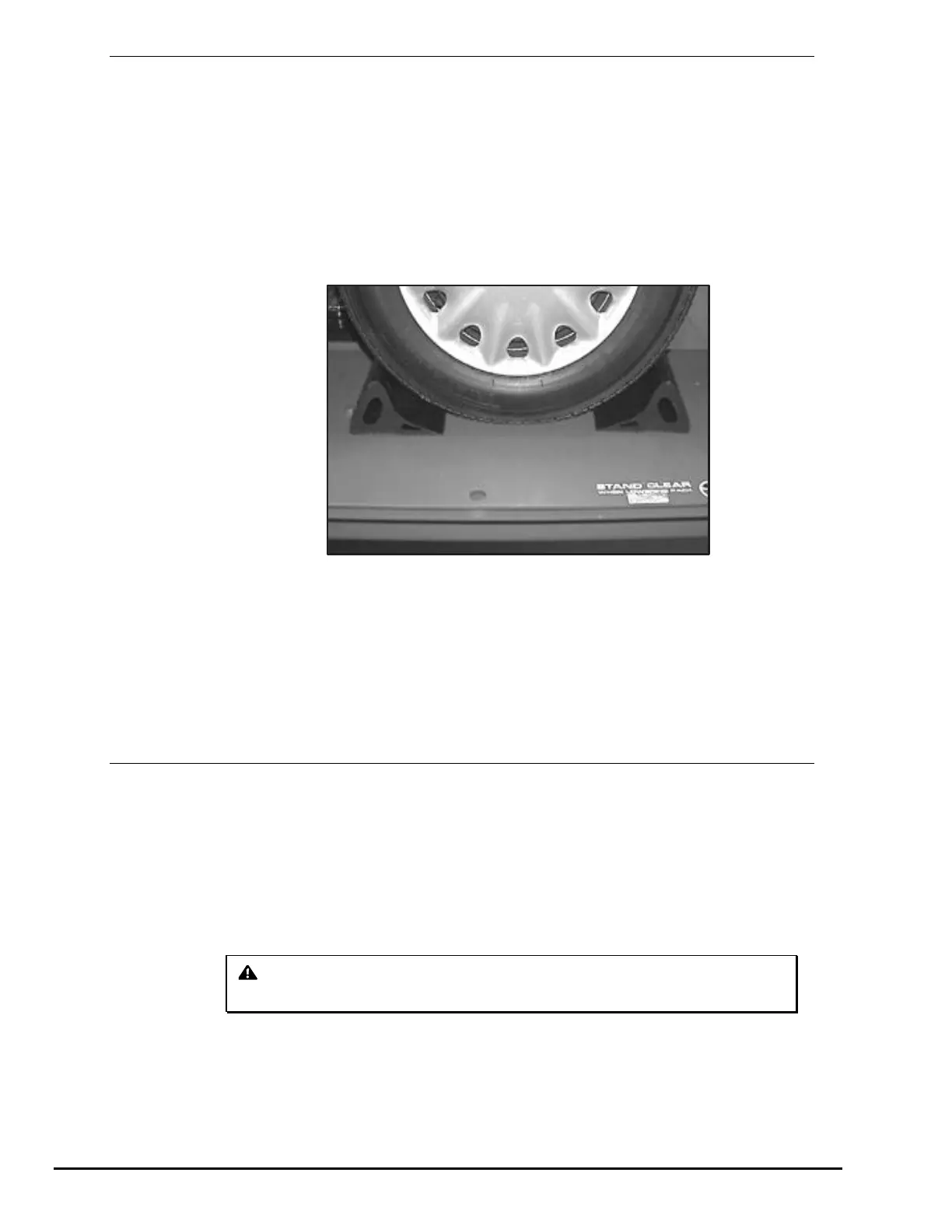

LEFT REAR WHEEL SHOWN
Check to ensure that the rear of the vehicle does not extend past yellow/black mark
on ramp.
Leave the wheel chocks in place while elevating the lift, performing service operations
on the vehicle, and while lowering the lift.
After lowering the lift, remove the wheel chocks from the front and rear of the tire
before moving the vehicle.
4.3 Lift Operation
Raising the Lift
Check the lift and immediate area for obstructions and, if found, remove.
Check that the turning angle gauge and runway slip plate lock pins are installed.
Check rear of vehicle for clearance.
CAUTION: Runways move to the rear as they go up. Observe the rear
of the vehicle as it raises to avoid hitting any obstructions.
