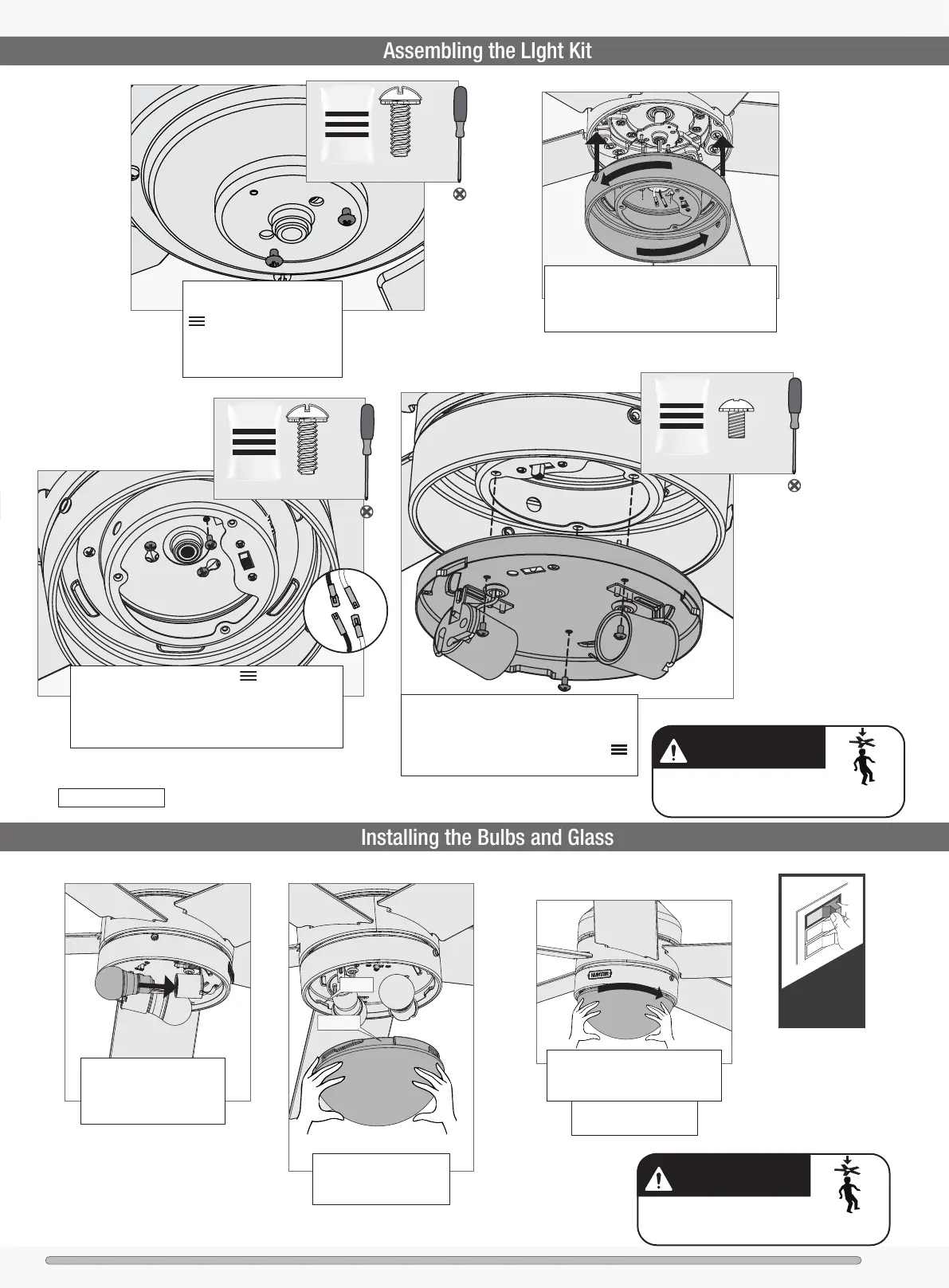

Installing the Bulbs and Glass
ON
Turn Power
Install the included bulbs
into the sockets. When
necessary, replace with
bulbs of same wattage.
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.
Notch
Tab
Feed the wire plugs through the center hole
of the upper switch housing, then wrap
keyhole slots around the screws and twist
counterclockwise.
Partially install two light kit
assembly screws, found in the
hardware bag, halfway into
the motor housing as shown.
It does not matter which two
screw holes you choose.
FAN FALL HAZARD
Make sure all screws are tight to secure
the light xture.
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
2 of 3
Light Kit Screw
bag
1 of 3
Light Kit Screw
bag
3 of 3
Short Light Kit
Screw
bag
Insert the third screw, found in the hardware
bag, in place and rmly tighten all the three screws.
Connect the single-pin connectors from the LED
assembly to the connectors from the fan. Connect the
white wires together. Connect the black wires together.
Lift the lower switch housing until its screw
holes are aligned with the screw holes in the
upper switch housing. Install the three short
light kit screws, found in the hardware bag .
Tighten all three screws.
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
Fan style may vary.
Note:
To Next Page
