Downrod

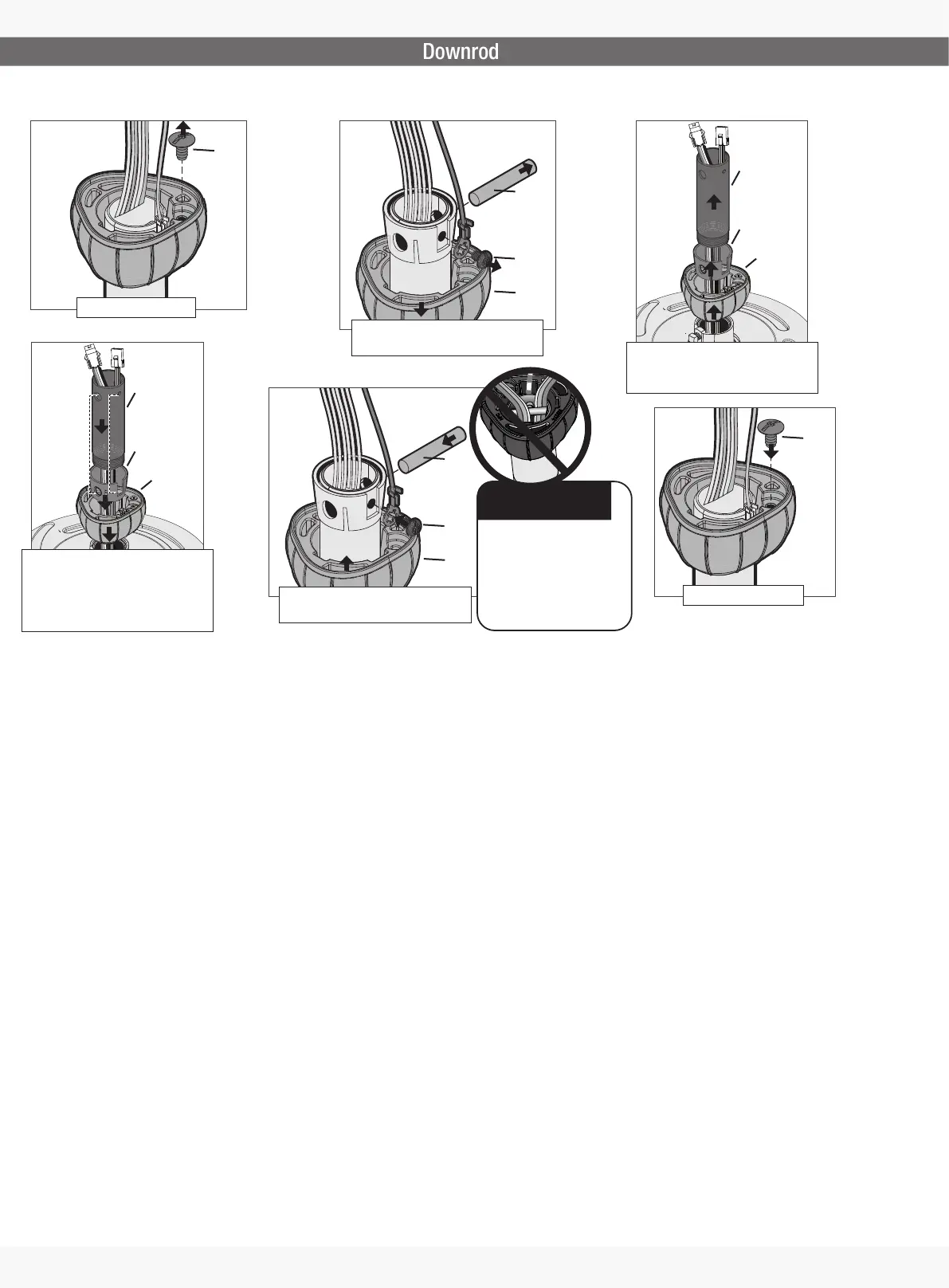

If you need a different downrod length follow these steps:
A
A
A
A
A
A
B
B
C
C
B
B
C
C
Remove ball screw (A).
Reinstall ball screw (A).
Slide ball down (A), remove small
metal pin (B) and ground screw (C).
Reinstall small metal pin (B) and
ground screw (C). Slide ball up (C).
Remove ball (A), inner sleeve (B) and
downrod (C) from fan body and wiring
harnesses.
Route wiring harnesses from the fan
through the accessory downrod (C).
Slide inner sleeve (B) and ball (A) over
downrod. Make sure to align the holes
for the sleeve (B) and downrod (C).
NOTICE
Make sure all wiring from the
wiring harnesses are on one
side of the downrod pin to
avoid wire entanglement when
engaging the dowrod. Do not
have wiring on the same side
as the grounding screw to
avoid damage to the wiring.
