Hunter Type 3 - Setting Remote Control; Setting DIP Switches

11
45066-01 • 03/03/10 • Hunter Fan Company

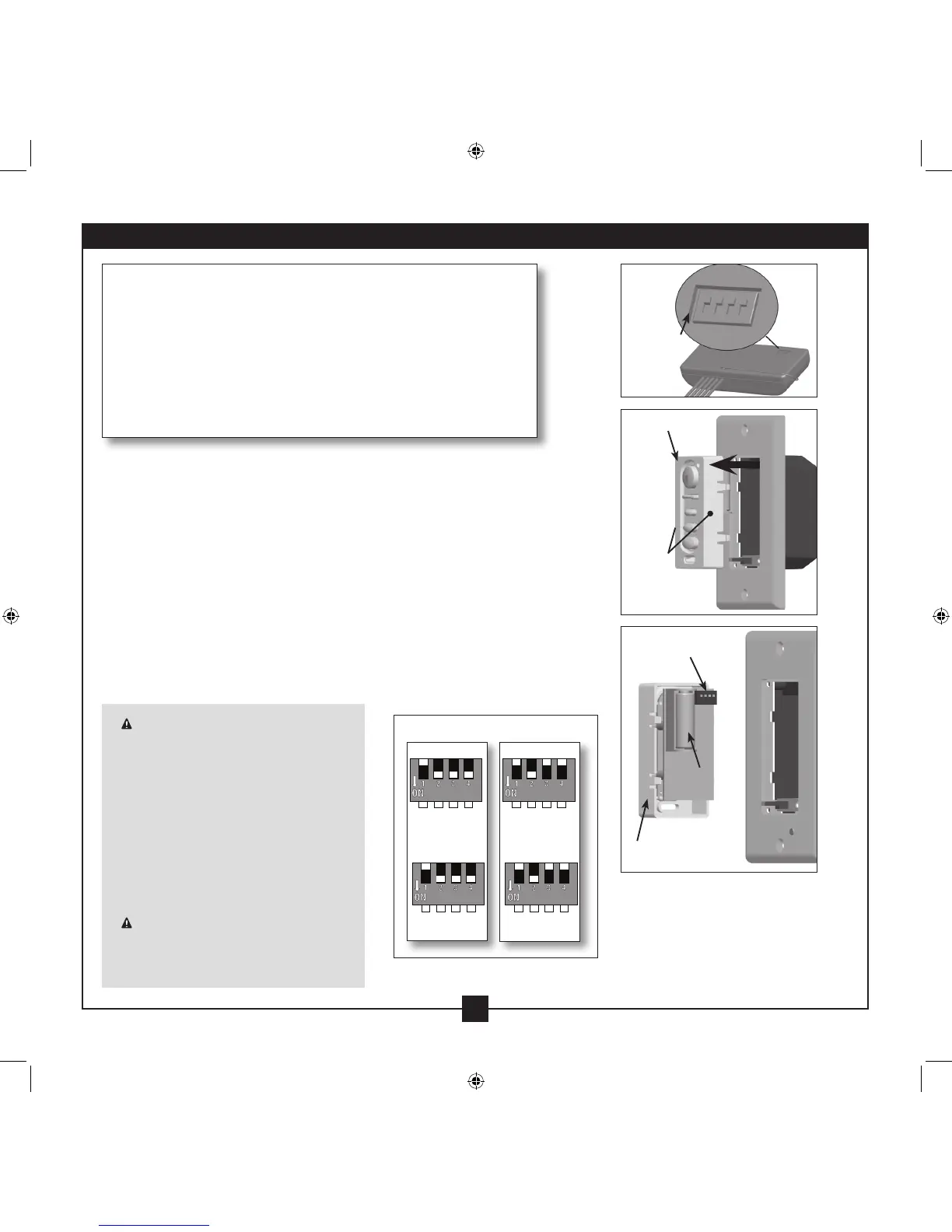

5-1. Press inward on each side of the wall control to remove the face
cover. Set the dip switches to match the dip switches in the
receiver.
IMPORTANT! Before you change the DIP switch settings, make
sure the battery is not connected to the transmitter.
Change the position of the DIP switches in the remote transmitter
and the receiver. Make sure that the DIP switches match in
the remote receiver and transmitter. If they don’t match, the
transmitter will not function.
5-2. Install a 12 Volt alkaline battery (A23, MN21, or equivalent).
5-3. Replace the face cover.
Setting DIP switches
When two or more fans are located near each other, you may desire
to have the receiver/transmitter for each fan set to a dierent code,
so that the operation of one fan does not aect the operation of the
other fans.
e DIP switches for the receiver are located on the at surface of the
receiver. e DIP switches for the transmitter are in the the battery
compartment.
Receiver DIP
switches
Face Cover
Face Cover
Press
Inward
Wall Control
DIP Switches
Battery
Dip Switches
Set to 01110
Dip Switches
Set to 01001
Dip Switches
Set to 01110
Dip Switches
Set to 01001
Receiver 1
Receiver 2
Wall Control 2
Wall Control 1
Example DIP Switch Settings
DIP Switches
Set to 0111
DIP Switches
Set to 0100
DIP Switches
Set to 0100
DIP Switches
Set to 0111
CAUTION: e remote control device
complies with part 15 of the FCC rules.
Changes or modications not expressly
approved by Hunter Fan Company could void
your authority to operate this equipment.
Operation is subject to the following two
conditions:
1. is device may not cause harmful
interference.
2. is device must accept any interference
received, including interference that may
cause undesired operation.
WARNING: Use only the Hunter Fan
speed control supplied with this fan.
5 • Setting the Remote Wall Control and Receiver
