Hunter Type 3 User Manual

14
45066-01 • 03/03/10 • Hunter Fan Company
Steps 8-2 – 8-3
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).

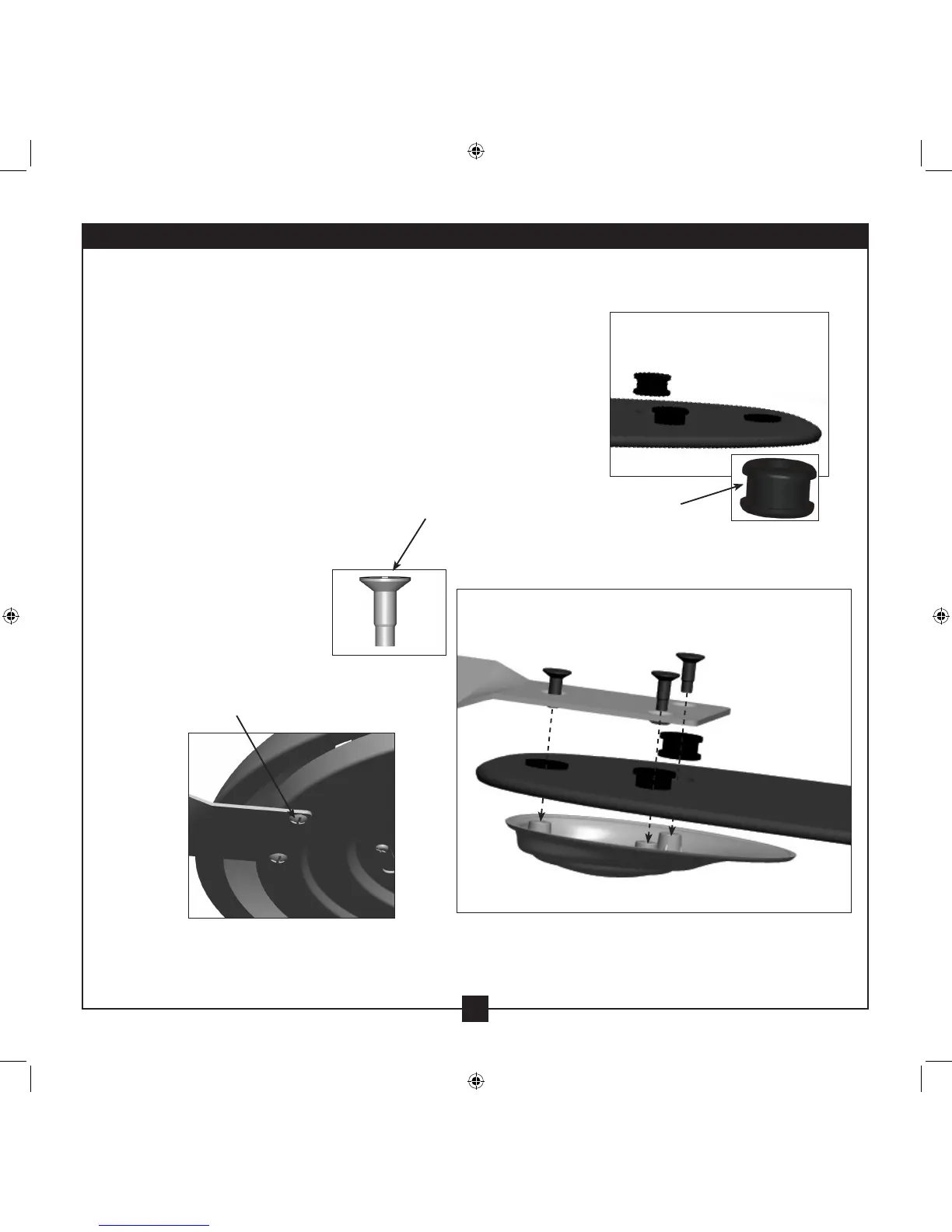

8-1. Install the grommets into the blades by hand.
8-2. Place each blade between a blade iron and medallion. Install three
blade assembly screws to attach the medallion to the blade iron.
Repeat for all blades.
8-3. For each blade, insert one blade iron armature screw through the
blade iron, and attach lightly to the fan. Insert the second blade
iron armature screw, then securely tighten both screws.
Blade Assembly
Screw
Grommet
Step 8-1 (Detail)
Blade Iron
Armature
Screw
8 • Assembling the Blades
