Your Hunter fan comes with an integrated light xture assembly.
WARNING: Use only the light xture supplied with this fan model.
9-1. To attach the light kit top housing, partially install two housing
assembly screws into the light kit mounting plate.
9-2. Feed the upper plug connector through the center opening of the
light kit top housing.
9-3. Align the keyhole slots in the housing with the housing assembly
screws.
9-4. Turn the light kit top housing counterclockwise until the housing
assembly screws are rmly situated in the narrow ends of the
keyhole slots. Install the remaining screw into the housing. Tighten
all three screws rmly.
CAUTION: Make sure the light kit top housing is securely
attached to the light kit mounting plate. Failure to properly attach
and tighten all three assembly screws could result in the light kit top
housing and light xture falling.

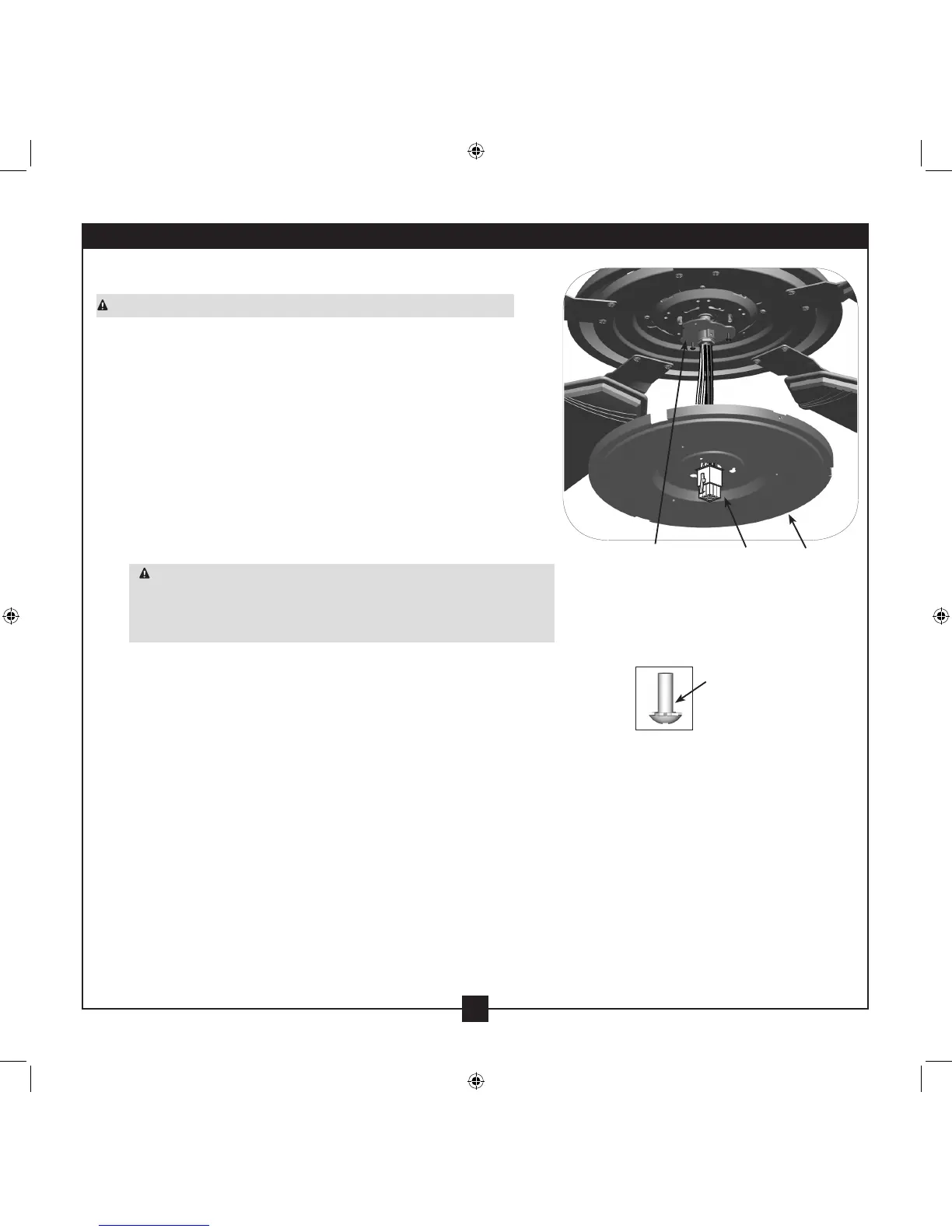

Steps 9-1 – 9-3
Housing
Assembly
Screw
Light
Kit Top
Housing
Light Kit
Mounting
Plate
Upper Plug
Connector
9 • Completing Your Installation With a Light Fixture
