You can assemble your fan for standard or angled mounting as shown
in steps 4-1 – 4-3. For low profile mounting (ceilings less than 8 feet
high), go to steps 4-6 – 4-9 on the next page.
4-1. To assemble fan to hang down from a at or angled ceiling, place
the canopy and canopy trim ring around the adapter so that they
rest on the fan assembly.
4-2. Feed the wires from the fan through the downrod.
Note: Make sure all the wires are on the same side of the metal
dowel pin inside the dowrod.
4-3. Loosen the square head setscrew on the adapter to install the pipe
and ball assembly. Note: When the pipe and ball assembly is fully
installed, 2-3 threads on the pipe will still be visible; this is normal.
Securely retighten the setscrew with a wrench or pliers.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
WARNING: Do not carry or lift fan by canopy.
4-4. Raise the fan and place the ball into the hanger bracket.
4-5. Align the notch on the ball with the indent in the hanger bracket.
(Rotate the fan until you hear the notch pop into place.)
Go to 5 • Setting the remote wall control and receiver.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.

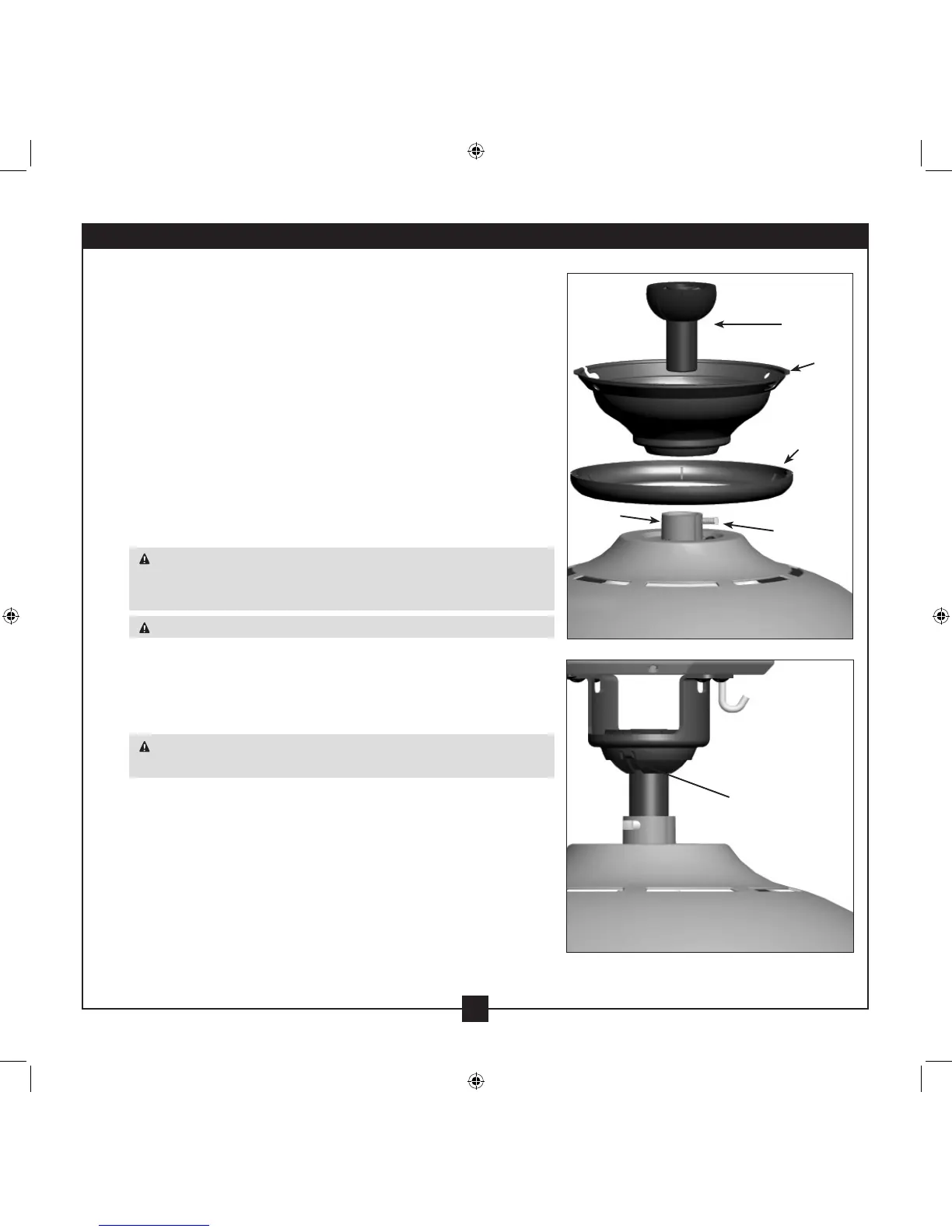

Steps 4-4 –4-5
Indent
Steps 4-1 – 4-3
Downrod
Canopy
Canopy
Trim
Ring
Setscrew
Adapter
4 • Assembling and Hanging the Fan
To Next Page
