G109 AXIS MAP DIAGRAM

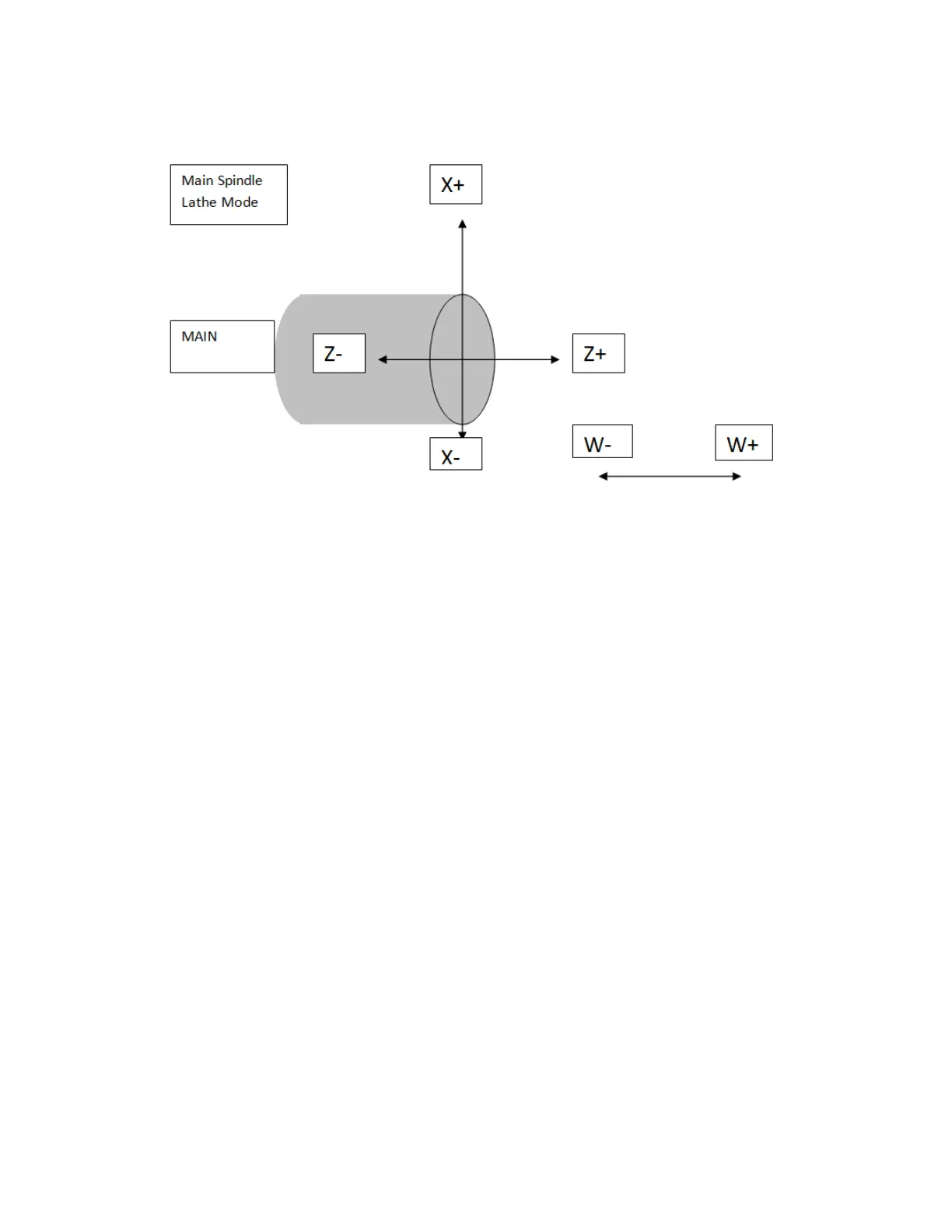

This axis map uses standard axes for a lathe and is suitable
for all turning operations.
The typical mode for this map is the Turning Mode (M130)
This map also can be used in conjunction with the Milling
Mode (M131) for drilling holes with X, Z, and C positions.
