MX Pool and Spa Heater Page 10

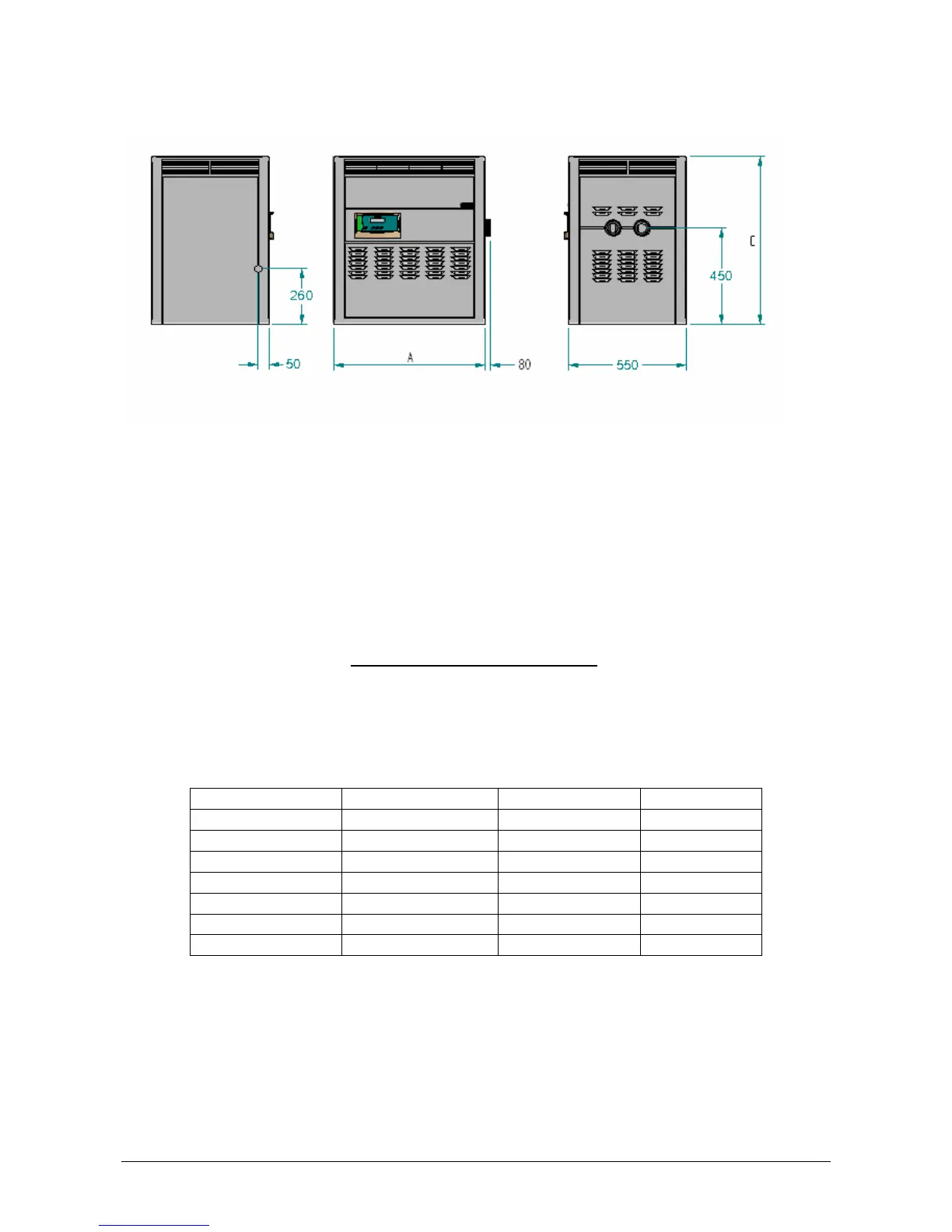

HEATER DIMENSIONS
INDOOR INSTALLATION
If the MX Heater is to be installed indoors, an indoor draught hood kit must be purchased from
AstralPool and installed on the Hurlcon MX Heater to convert it to an indoor model.
Product code numbers for draught hoods are:
Heater model Indoor top model Flue size Part number
MX 125 DH 10MX 150mm 10982
MX 150 DH 15MX 150mm 10983
MX 200 DH 20 175 mm 10966
MX 250 DH 25 175 mm 10964
MX 300 DH 30 200 mm 10967
MX 400 DH 40 250 mm 10965
MX 500 DH 50 300 mm 10968
A flue no smaller than the draught diverter diameter must be installed and terminated with an
approved gas flue cowl (not a Chinaman’s hat) 600mm above any roofline that is within 1.5
metres horizontally from the flue.
Model Dimension A Dimension C
MX 125 370mm 790mm
MX 150 460mm 790mm
MX 200 640mm 790mm
MX 250 710mm 790mm
MX 300 775mm 790mm
MX 400 910mm 790mm
MX 500 1100mm 930mm
