CHAMbER SEAL ASSEMbLY

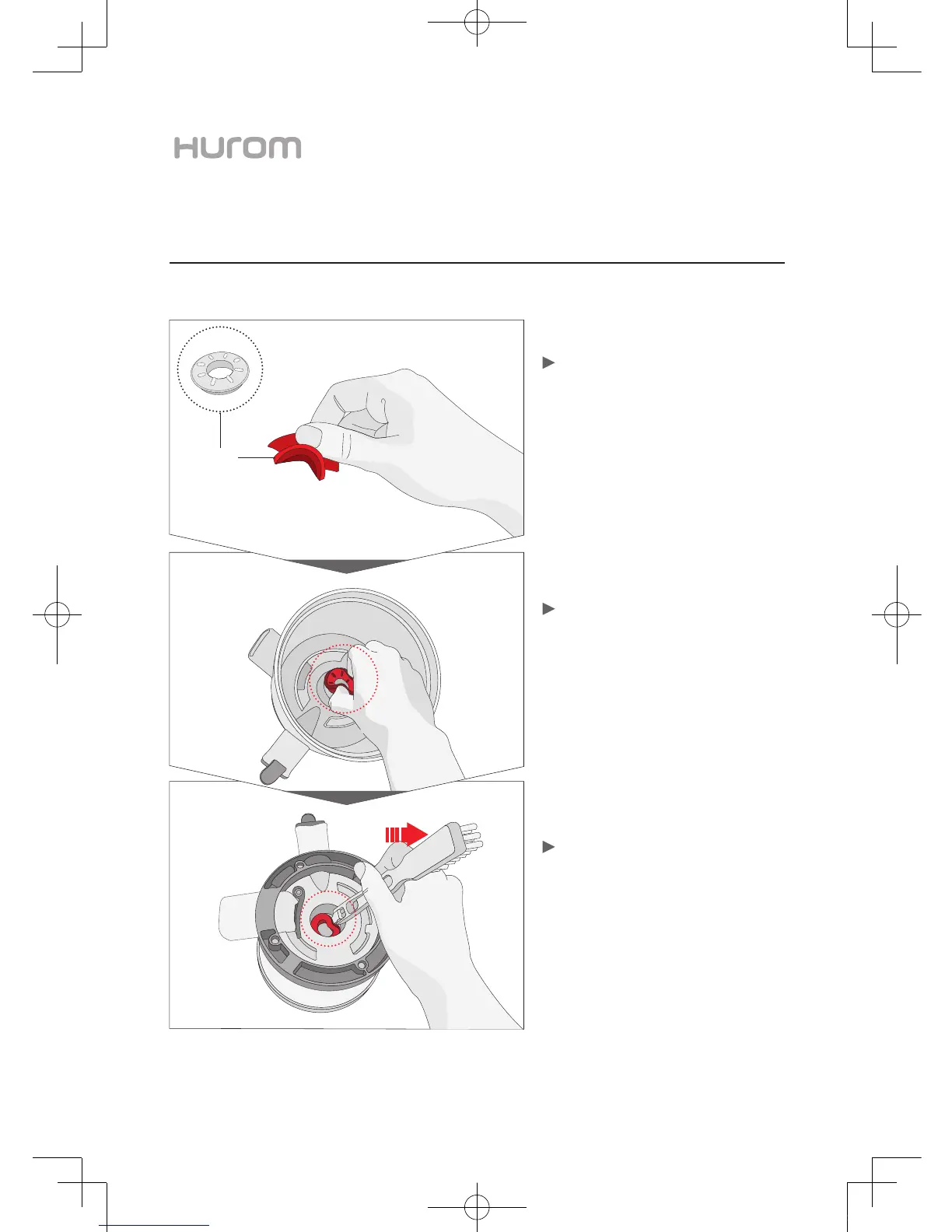

Insert the chamber seal into the
chamber hole.
Turn over the chamber and organize
the chamber seal in place.
Insert the bottom of the chamber seal into the
chamber hole and fully press it down.
Do not insert whole part of chamber seal.
The upper part of the chamber seal must be shown.
If the chamber seal at the bottom of the chamber
is not fully inserted and bent, organize it with the
rotating attractor of the cleaning brush.
Hold the chamber seal like pinching.
As shown to the left in a dotted circle, let the protru-
sion part on the chamber seal face upward and hold
it like pinching with your thumb and index finger.
20 l
Chamber seal
3
2
1
