HURST SP 333 - Page 28

28

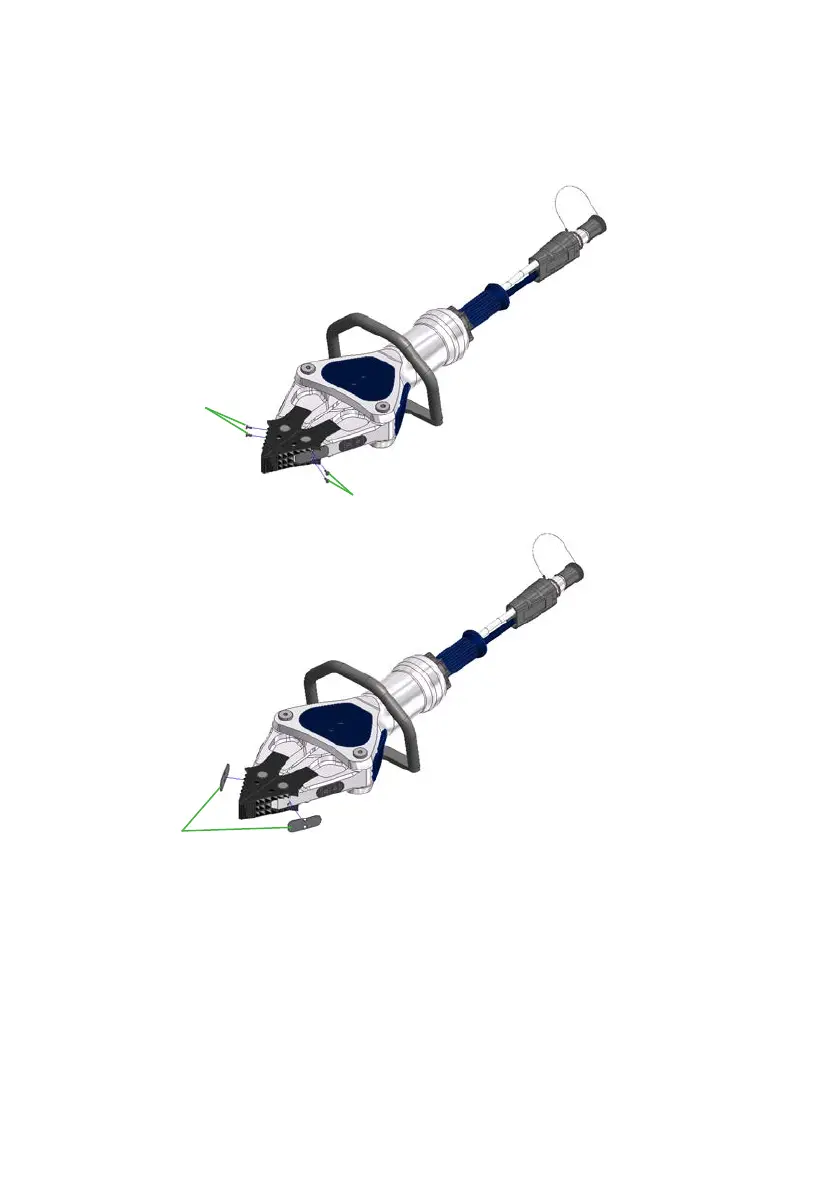

1. Close the rescue unit until a gap of only a few mm remains between the tips. Disconnect
the equipment from the hydraulic power supply unit and clean thoroughly.
2. Remove the xing screws “A” and remove the protective plates “B”.
10.3.6 Replacing the protective plates
3. Install the new protective plates.
A
B
A
