DISMOUNTING AND MOUNTING THE ENGINE
B
1

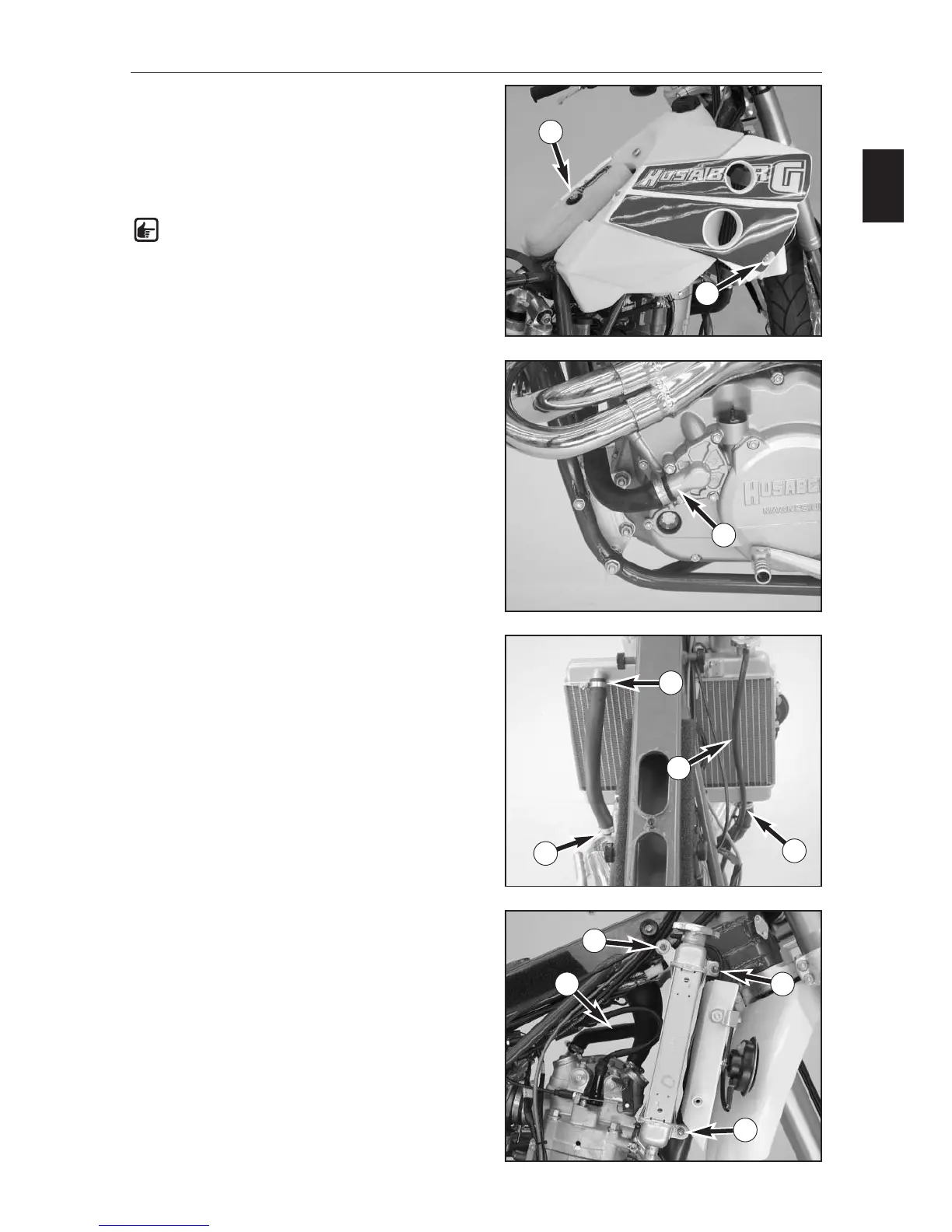

DISMOUNTING THE ENGINE
– Thoroughly clean the motorcycle and jack up on a
sturdy work stand.
– Remove the seat.
– Unscrew the air filter (1).
–Close both fuel taps and disconnect the fuel hoses
– Unscrew both lateral bolts (2) on the spoiler.
NOTE: Hold the retaining sleeve on the radiator
shield with pliers if it turns at the same time.
– Remove the tank with the spoilers.
–Disconnect the ground and positive cable.
– Loosen the hose clamp connecting the water pump
(3), remove the hose and drain the cooling liquid in a
suitable vessel.
– Loosen the hose clamps on the cylinder head (4) and
the radiator (5) and dismount both radiator hoses
together with the overflow hose (6).
–Dismount the engine vent hose (7).
– Remove the three nuts (8) from the radiator mounting
and pull the radiator out of the right side of the frame.
1
5
5
6
2
3
4
8
8
8
7
