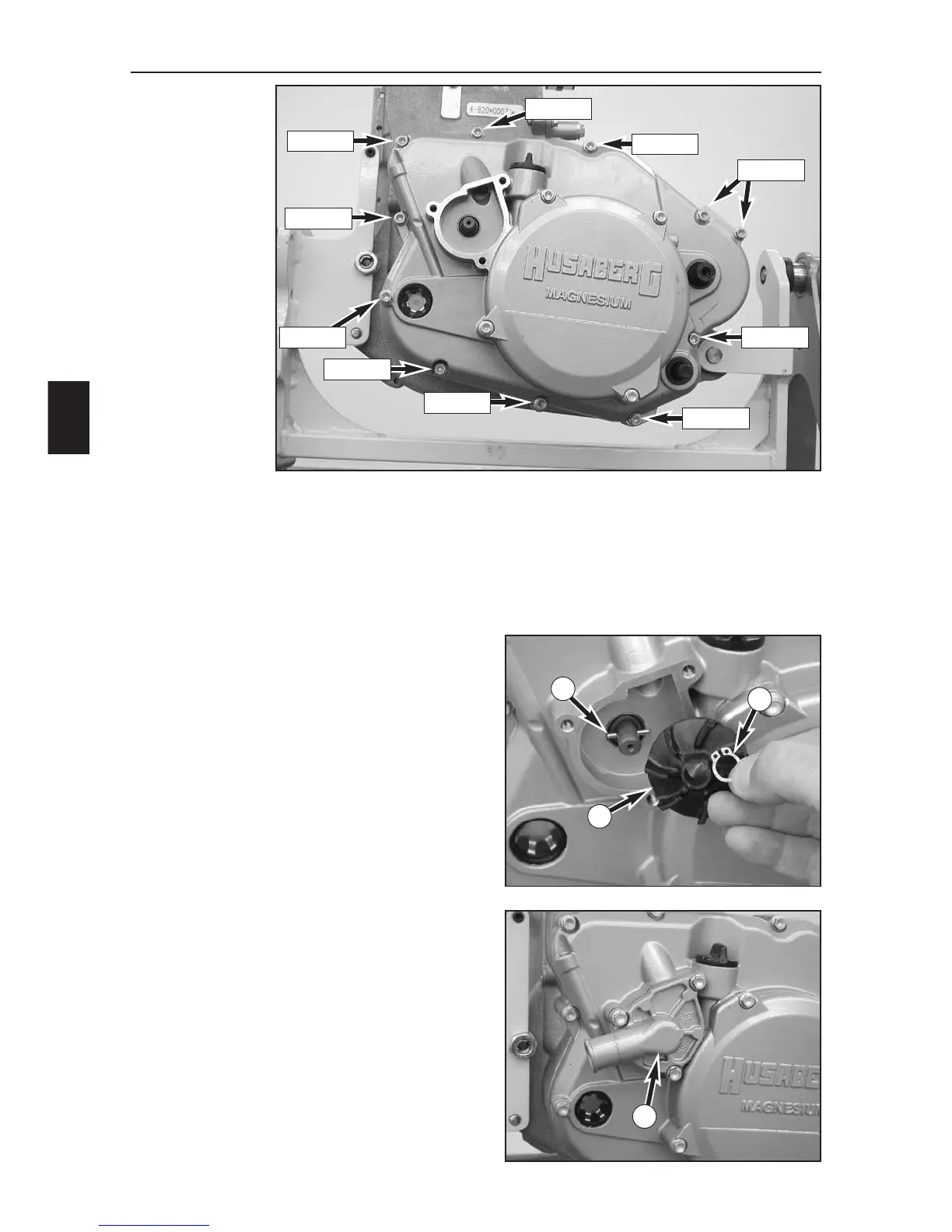

– Screw in the bolts (see photo for bolt lengths).
–Tightening torque: 10 Nm.
– Insert the pin (1) in the water pump shaft, slip on the
water pump wheel (2) and mount the circlip (3).
– Mount the water pump cover (4) with a new gasket,
tighten the M6x15 bolts to 10 Nm.
ASSEMBLING THE ENGINE
E
12
M6x25
M6x25
M6x30
M6x30
M6x25
M6x25
M6x25
M6x25
M6x25
M6x25
1
2
3
4
