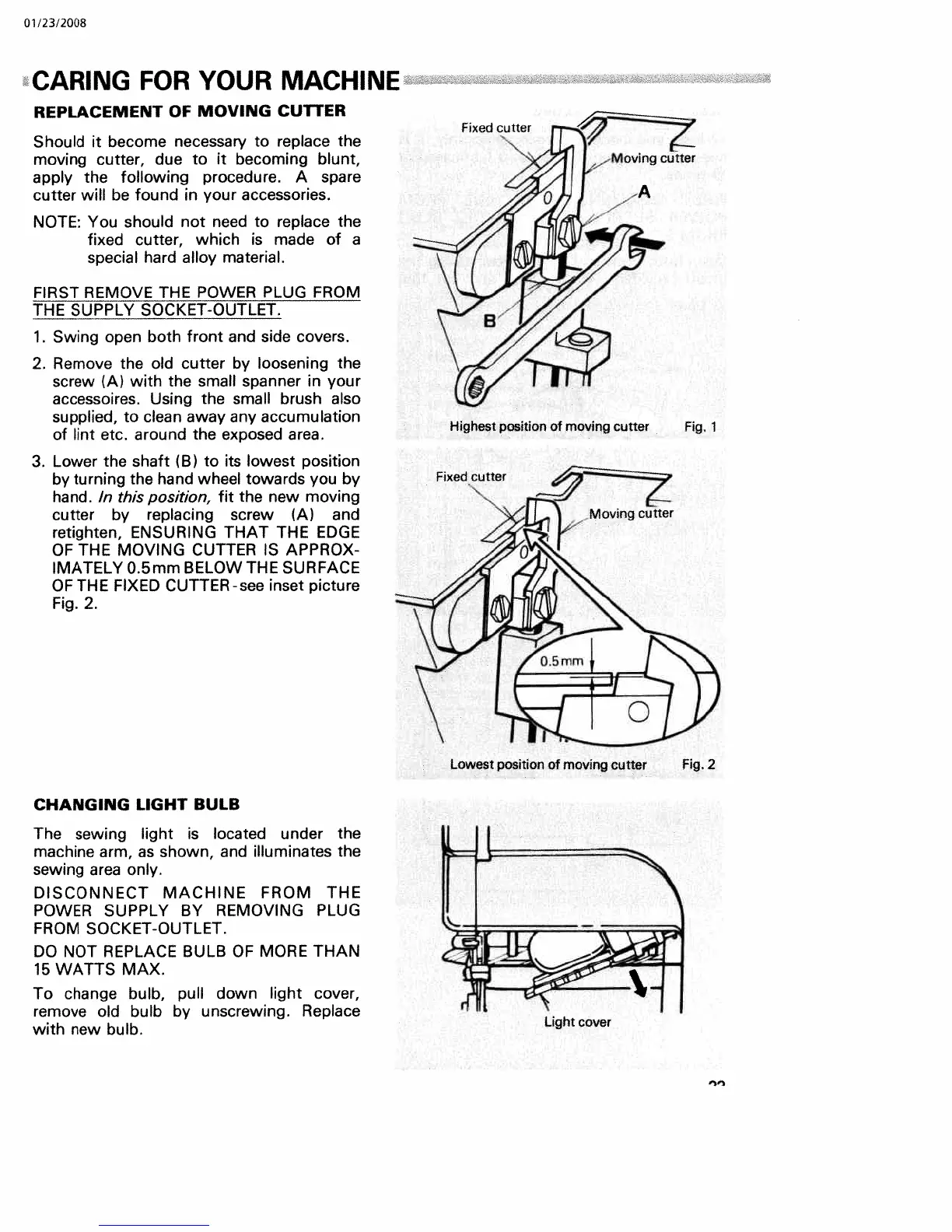

CARING FOR YOUR MACHINE
REPLACEMENT
OF
MOVING
CUTlER
Should
it become
necessary to replace the
moving
cutter,
due
to it
becoming blunt,
apply the
following procedure.
A
spare
cutter
will
be
found in your accessories.
NOTE: You
should not need to replace the
fixed
cutter, which is made of a
special hard
alloy material.
FIRST
REMOVE THE POWER PLUG
FROM
THE SUPPLY SOCKET-OUTLET.
1.
Swing open both
front and
side
covers.
2. Remove the old
cutter
by
loosening the
screw
(A>
with the small spanner in
your
accessoires. Using the small brush
also
supplied, to clean away
any accumulation
of lint etc. around the exposed area.
3.
Lower the shaft
(B)
to its lowest
position
by
turning the
hand wheel towards
you by
hand. In this position,
fit the new moving
cutter
by
replacing screw
(A)
and
retighten,
ENSURING THAT
THE
EDGE
OF THE MOVING
CUTTER
IS
APPROX
IMATELY 0.5mm BELOW THE SURFACE
OF THE FIXED
CUTTER-see inset
Fig. 2.
CHANGING
LIGHT BULB
The sewing light is located
under the
machine arm, as
shown, and illuminates
the
sewing area only.
DISCONNECT
MACHINE FROM THE
POWER SUPPLY BY
REMOVING PLUG
FROM SOCKET-OUTLET.
DO
NOT REPLACE BULB OF MORE
THAN
15 WATTS MAX.
To
change bulb,
pull
down
light cover,
remove old bulb by
unscrewing. Replace
with new bulb.
Highest
position of moving cutter Fig,
1
Lowest position of
moving cutter
Fig.
2
Light cover
