Husqvarna 701 Enduro User Manual

BRAKE SYSTEM 13
149

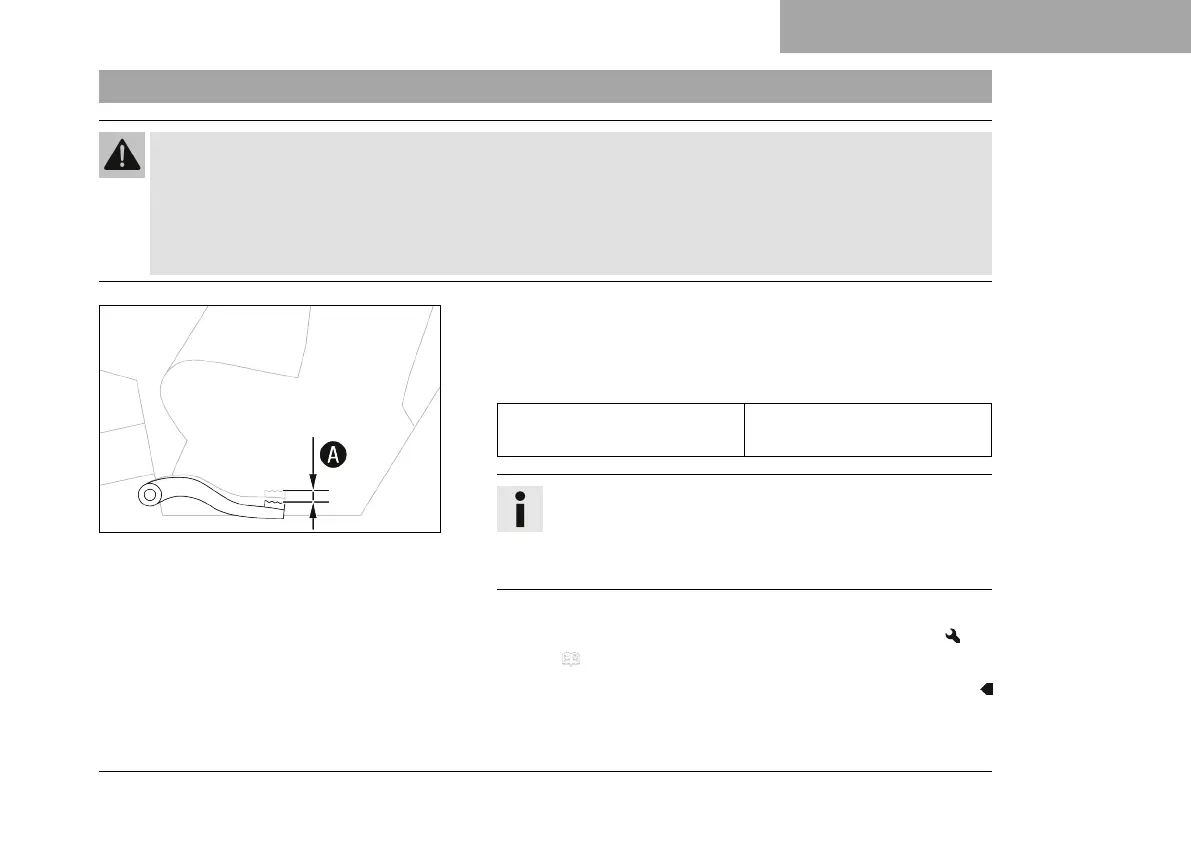

13.8 Checking the free travel of foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.
402027-10
– Move the foot brake lever back and forth between the end
stop and the contact to the foot brake cylinder piston and
check free travel
A
.
Guideline
Free travel at foot brake
lever
3 … 5 mm (0.12 … 0.2 in)
Info
You will know that contact has been made with the
foot brake cylinder piston when there is increased
resistance when you activate the foot brake lever.
» If the free travel does not meet specifications:
–
Adjust the basic position of the foot brake lever.
( p. 150)

Husqvarna 701 Enduro Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	692.7 cc
Transmission	6-speed
Rear Suspension	WP XPLOR with Pro-Lever linkage
Bore x Stroke	105 mm x 80 mm
Lubrication	Forced oil lubrication with 2 oil pumps
Cooling	Liquid cooled
Frame	Chromium-Molybdenum steel trellis frame
Front Tire	90/90-21
Rear Tire	140/80-18
Compression Ratio	12.7:1
Starter	Electric
Final Drive	Chain
Power	55 kW (74 hp)
Torque	73.5 Nm
Fuel Capacity	13 liters
Front Suspension	WP XPLOR
Fuel System	Keihin EFI with 50 mm throttle body
Clutch	APTCTM slipper clutch, hydraulically actuated
Front Brake	Disc brake
Rear Brake	Disc brake
ABS	Bosch 9.1 MP
Wheelbase	1, 502 mm
Dry Weight	146 kg
Front Suspension Travel	250 mm
Rear Suspension Travel	250 mm
Front Brake Details	300 mm disc
Rear Brake Details	240 mm disc
Ground Clearance	270 mm
