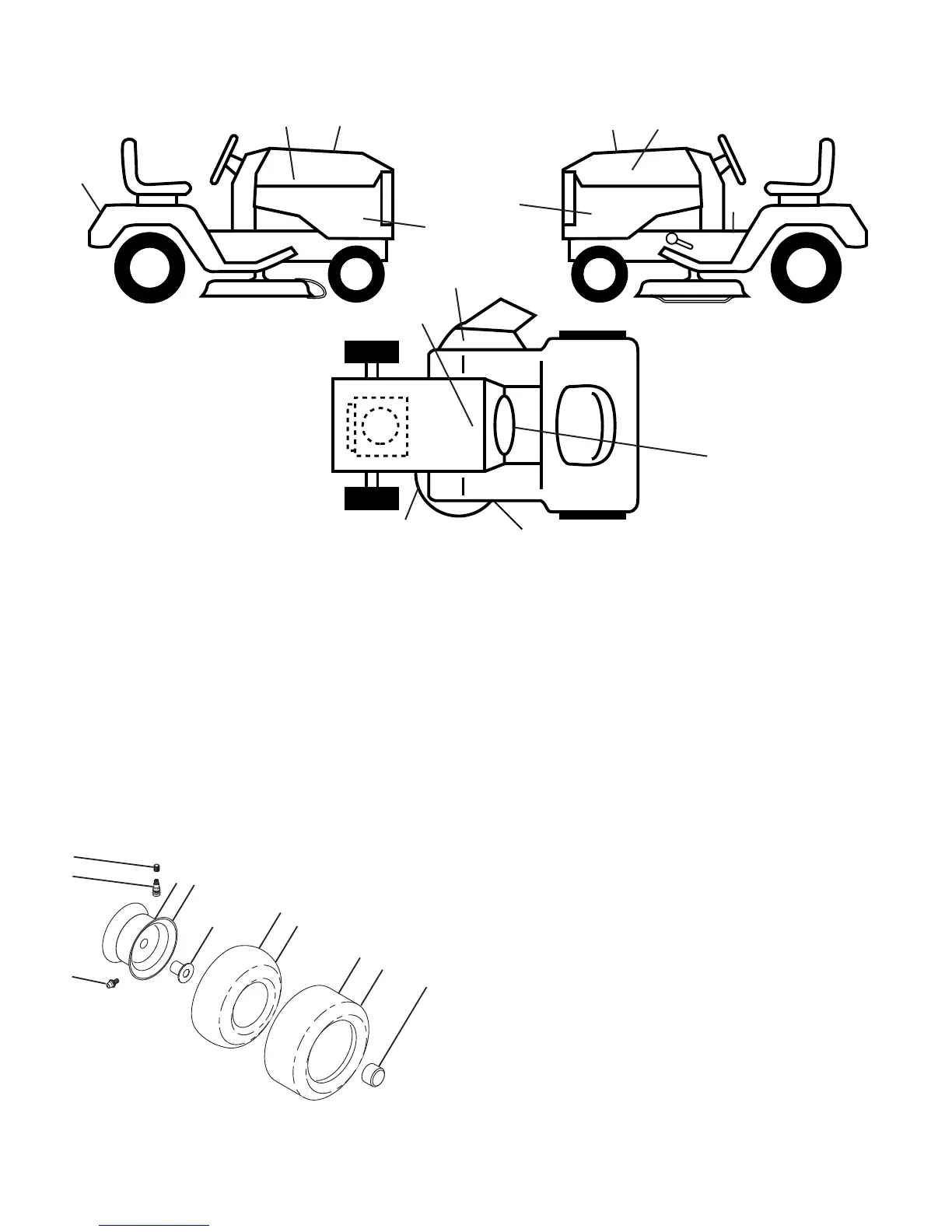

TRACTOR - MODEL NO. YTH24K48 (96045003600), PRODUCT NO. 960 45 00-36
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 13 83-36 Rim Assembly, Front
4 532 05 99-04 Tube, Front (Ser vice Item Only)
5 532 10 62-22 Tire, Front
6 532 12 49-57 Fitting, Grease (Front Wheel Only)
7 532 12 49-59 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Axle
9 532 13 84-68 Tire, Rear
10 532 12 49-26 Tube, Rear (Service Item Only)
11 532 13 83-37 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 41 91-38 Decal, Operator's
2 532 17 05-63 Decal, Mower Keep Hand Away
3 532 42 41-02 Decal, Warning Spark Arrestor
4 532 19 15-54 Decal, Fender
5 532 17 84-55 Decal, Caution
8 532 19 87-85 Decal, Mower Sch.
9 532 14 50-05 Decal, Battery Dnge/Poi
14 532 44 63-18 Decal, Panel Side
15 532 42 38-29 Decal, Cust. Resp.
16 532 42 91-96 Decal, Hood Logo
17 532 44 54-68 Decal, Replacement
- - 532 16 69-60 Decal, Bypass
- - 532 43 96-81 Pad, Footrest, LH
- - 532 43 96-82 Pad, Footrest, RH
- - 532 44 54-72 Manual, Operator's (Eng/Span)
- - 532 44 58-89 Manual, Parts (Eng/Span)
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
