this manual. All other maintenance work must be
done by an approved service agent.
• Stop the motor and disconnect the power plug when
you replace the diamond tools.
• Do the inspection and/or maintenance with the motor
stopped and the power plug disconnected.
• Do the maintenance to make sure that the product
operates correctly. Refer to
Maintenance schedule
on page 23
.
Operation
Introduction
WARNING: Read and understand the
safety chapter before you use the product.
To do before you operate the product
CAUTION: Do not use an extension
cord longer than maximum 100 ft and less
than minimum 10 AWG.
• Read the operator's manual carefully and make sure
that you understand the instructions.
• Read the instructions that are supplied with the
cutting blade by the cutting blade manufacturer.
• Before each operation of the product, do these
steps:
a) Do the daily maintenance. Refer to
Maintenance
schedule on page 23
.
b) Make line marks for all cuts. Prepare the
operation sequence carefully to prevent injury
and damage.
c) Make sure that the cutting blade and the blade
guard is correctly installed. Refer to
To install
a cutting blade on page 13
and
To install the
blade guard on page 15
.
d) Adjust the handle to an applicable operation
position. Refer to
To adjust the handle height on
page 13
.
e) Fill the water tank or connect the external water
supply. Refer to
To fill the water tank on page
18
and
To connect the external water supply on
page 19
.
f) Make sure that the water tube in the blade guard
is open. Each side of the cutting blade must have
sufficient supply of water.
g) Make sure that the pointer is aligned with the
cutting blade. Refer to
To align the pointer with
the cutting blade on page 17
.
h) Connect the power plug of the product into a
extension cord and then into the mains outlet.
i) Turn the machine stop button clockwise to make
sure that the button is disengaged.
Cutting blades
WARNING: Do not use a cutting blade
for other materials than which it is made for.
WARNING: Only use diamond blades
for wet cutting. The diamond blade must be
applicable to the same speed or a higher
speed than the value given on the product
type plate. Only use diamond blades that
are in compliance with national or regional
standards, for example EN13236 or ANSI
B7.1.
The cutting blade manufacturer gives warnings and
recommendations for the operation and correct
maintenance of the cutting blade. Those warnings are
supplied with the cutting blade.
Diamond blades

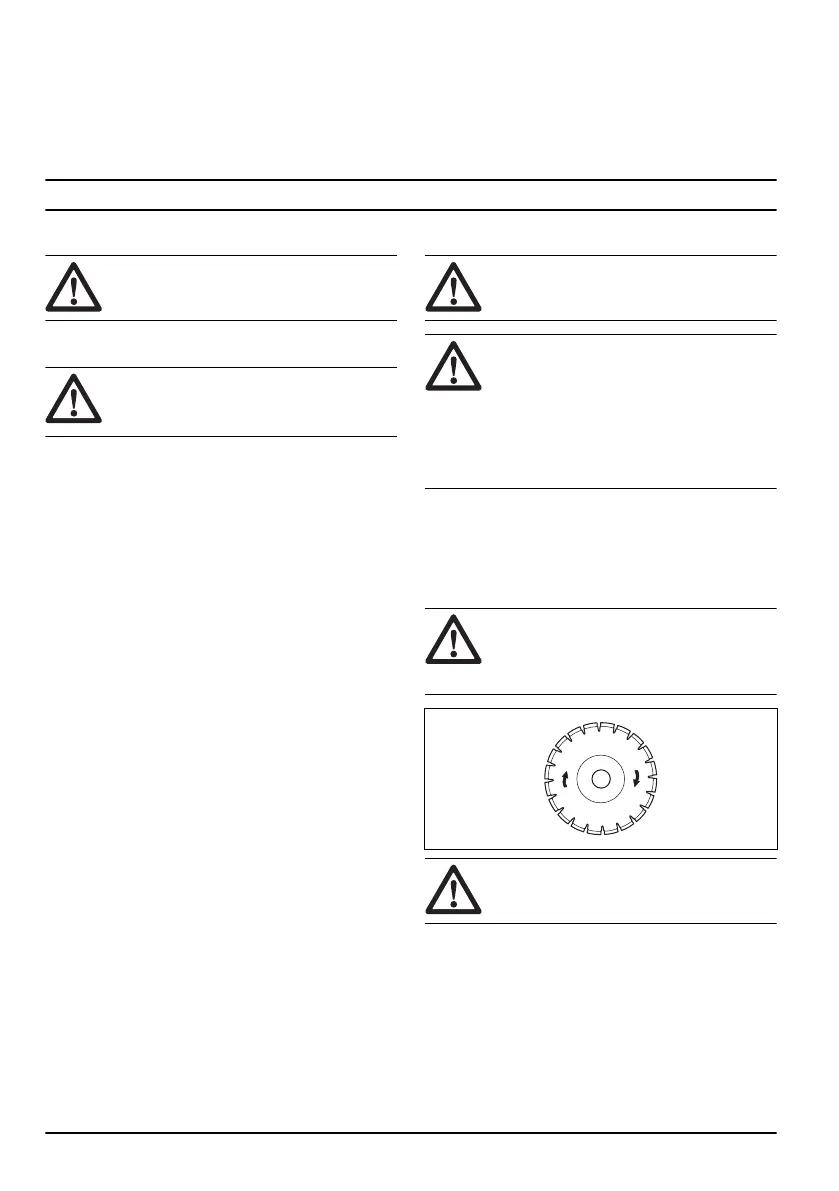

WARNING: Make sure that the
direction of rotation for the diamond blade
shown on the diamond blade aligns with the
direction of rotation shown on the product.
CAUTION: Always use a sharp
diamond blade.
There is a wide range of diamond blades that is used
for different operations. From new made concrete to
concrete and asphalt that has become hard and for
different hardness classes.
Diamond blades has a steel core with segments that are
made of industrial diamonds.
