Pump Belt
The belts are not adjustable. Replace belts if they
begin to slip from wear.
Replacing Pump Belt
Park the mower on a level surface. Engage the
parking brake.
Belt Removal
Remove the deck belt (see 1. Deck Belt Removal in
this section of the manual).
Remove clutch stop to access the belt.2.
Disconnect clutch wire.3.
With a ½" breaker bar and using the square 4.
opening in the idler arm, shift the arm to create
slack in the belt.
Remove belt from the engine and pump pulleys.5.
Belt Installation
Wrap the belt around the engine pulley.1.
Wrap the belt around the left pump pulley.2.
Route the belt around the inside of the idler pulley.3.
With a ½" breaker bar and using the square 4.
opening in the idler arm, shift the arm to create
slack in the belt.
While holding the idler back with the breaker bar,
wrap the belt around the right pump pulley.
Replace and secure clutch stop.5.
Reinstall the deck belt. (See 6. Deck Belt Installation
in this section of the manual).
8068-092
Electric clutch1.
Idler release placement2.
Clutch stop3.

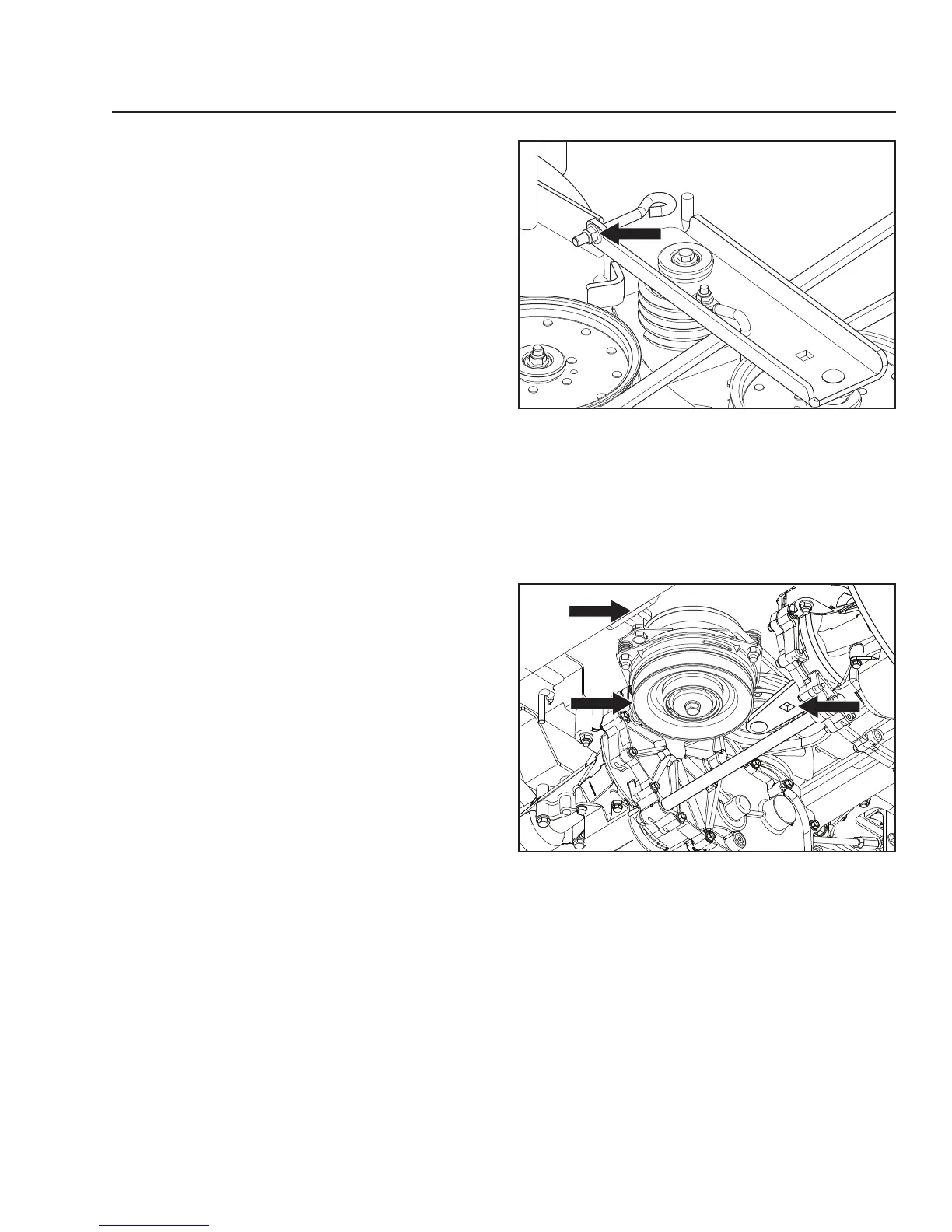

Pump belt removal
V-belts
Check every 100 hours of operation. Check for severe
cracking and large nicks.
NOTE: The belt will show some small cracks in normal
operation.
Double check belt routing to make sure it matches 4.
the routing decal, and that the belt does not have
any twist. Correct if needed.
Adjust belt tension by turning the eyebolt until 5.
there is approximately
7
/8" -1" of threads showing
outside the nut.
Belt tension should be set to 60-70 lbs.6.
Replace belt shields on both mandrel housings 7.
and secure with fasteners.
8065-054
Adjust belt tension
