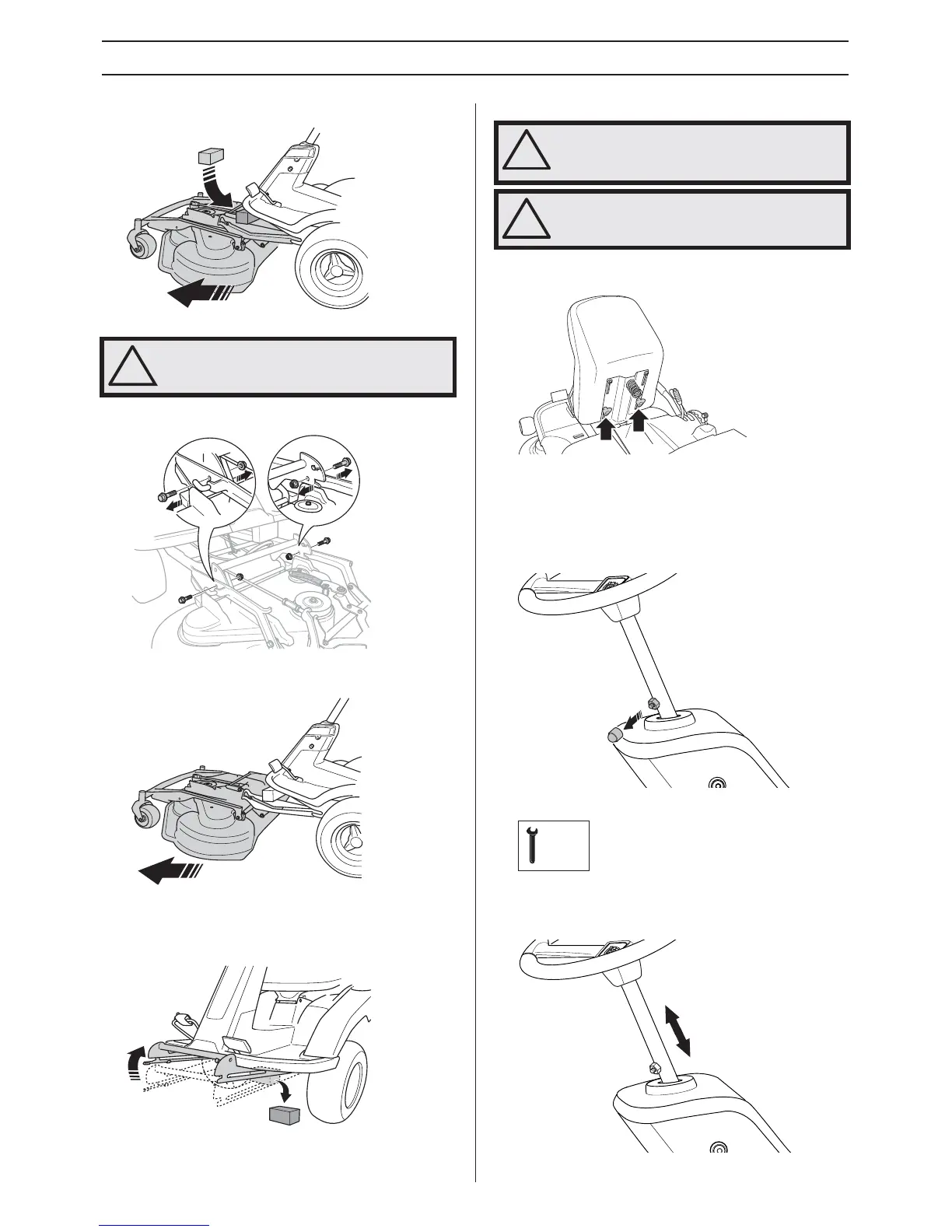

ASSEMBLING AND ADJUSTMENTS
7 To secure the cutting deck from spring back, place a
wooden block between equipment frame and chassis.
8 Remove the two screws on the equipment frame.
9 Pull out the cutting unit.
10 Remove the wooden block.
Assemble the parts in the reverse order.
Seat adjustment
The seat has a jointed attachment on the front edge and can
be tipped forward.
The seat can also be adjusted lengthways.
Loosen the handles under the seat and adjust it forwards or
backwards to the desired position.
Steering wheel height adjustment
1 Remove the cover.
2 Loosen the nut.
3 Loosening the locking screw with a 4 mm hex key.
4 Adjust the height. The height can be adjusted approx. 40
mm.
5 Tighten the lock screw and nut. Refit the cover.
!
WARNING! Observe caution to avoid
trapping your hand.
!
WARNING! Take care so that hands are not
trapped or injured by the locking hooks
when the seat is folded back.
!
WARNING! Do not adjust seat settings while
driving. Risk of unsafe manoeuvring.
