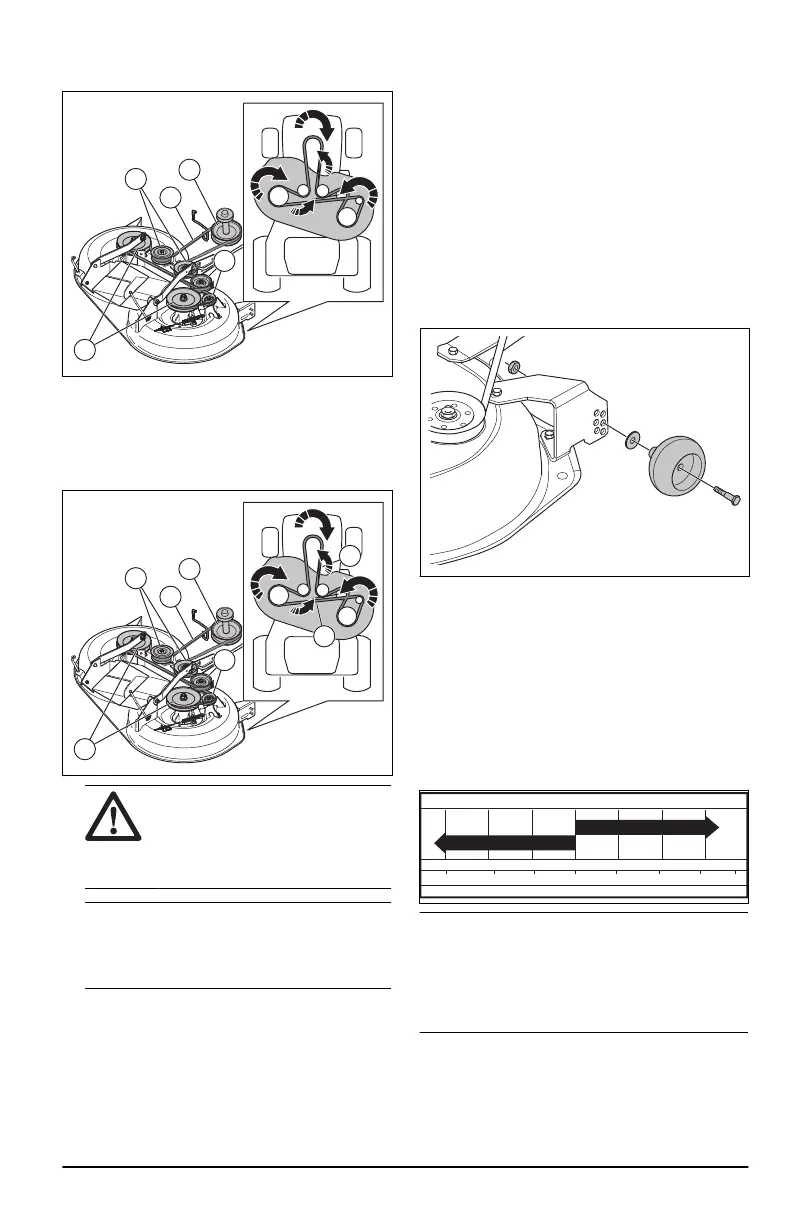

4. Remove the drive belt (A) from the clutch pulley
(B) on the engine shaft.
5. Remove the drive belt from the mandrel pulleys
(C) and the idler pulleys (D).
To install the drive belt for the cutting deck
1. Install the drive belt (A) around the mandrel
pulleys (B).
CAUTION: Put the drive belt
correctly in all the grooves on the
cutting deck pulleys. The drive belt
can become damaged if it is not
installed correctly.
Note: You must twist the drive belt 180° at 2
positions (X) to align with the pulleys. Make sure
that the thinner part of the drive belt is in the
direction of the groove in each pulley.
2. Install the drive belt around the idler pulleys (C).
3. Install the drive belt around the clutch pulley (D)
on the engine shaft.
4. Put the cutting deck in transport position. Refer
to
To set the cutting deck in transport position or
mow position on page 17
.
To adjust the anti-scalp rollers
The anti-scalp rollers keep the cutting deck in the
correct position on the ground and prevent lawn
scalping in most terrain conditions. The anti-scalp
rollers are adjusted correctly when they are slightly
off the ground when the cutting deck is at the
necessary cutting height.
1. Park the product on a level surface and stop the
engine.
2. Adjust the product to the necessary cutting
height. Refer to
To set the cutting height on page
17
.
3. Remove the nut, the bolt, the washer, and the
anti-scalp roller.
4. Install the anti-scalp roller, the bolt, the washer,
and the nut in the correct position.
5. Adjust all anti-scalp rollers and install them in the
same procedure.
Engine
To lubricate the engine
Only use high quality detergent oil rated with API
service classification SJ-SN. The oil’s SAE viscosity
grade refers to the correct temperature for operation.
-20 0 30 40
80
100
-30
-20 0
20 30 40
F
C
32
-10
10
60
5W-30
SAE 30
Note:
Multi-viscosity oils (5W30, 10W30, and so
on) help the engine start easily in cold weather but
causes increased oil use when used in temperatures
above 32°F/0°C. Do a check of your engine oil
level frequently to prevent possible engine damage
caused by low oil level.
• Change the oil after intervals of 50 hours of
operation. If the product is not used for 50 hours
in a year, change the oil at a minimum of 1 time a
year.
2010 - 003 - 10.04.2023
31
