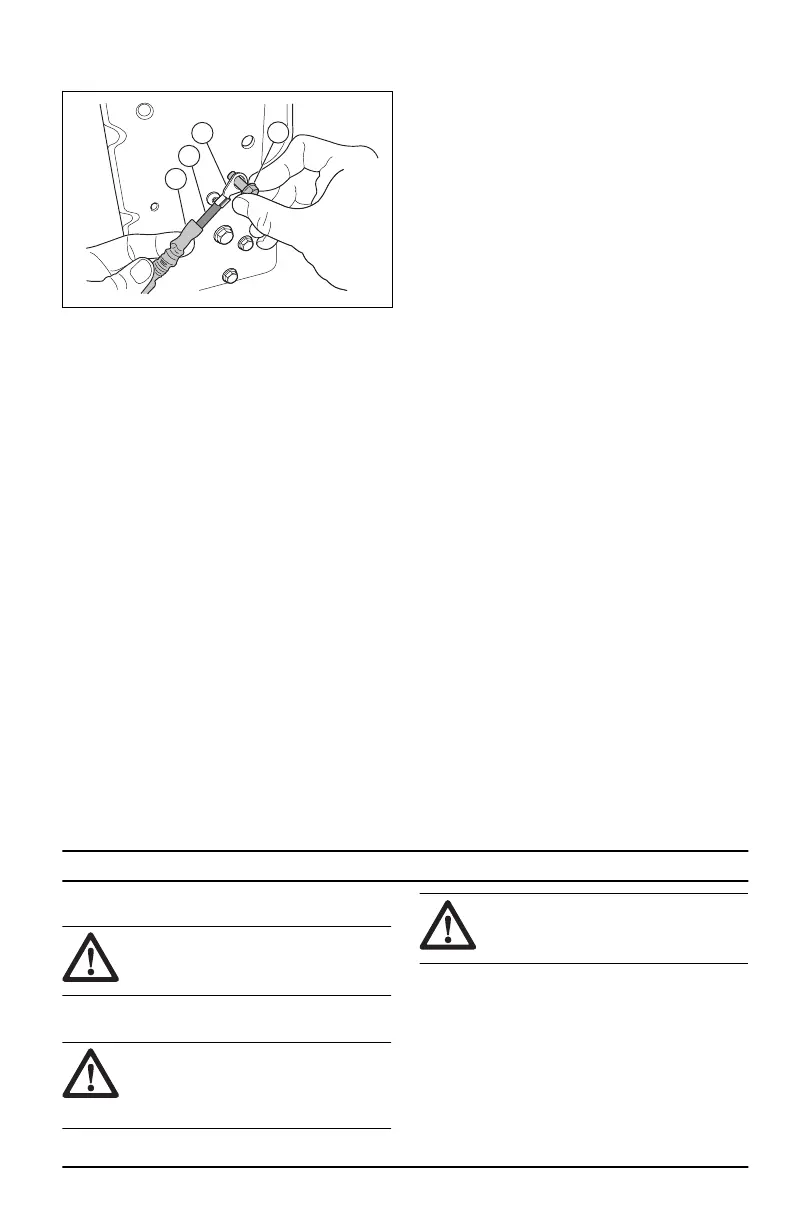

3. Use a ½ in (13 mm) wrench or socket to remove
the ground screw (E) and the black cable (F).
4. Retract the protective sleeve (G) from the
terminal end (H).
5. Install the terminal end on the plate with the
ground screw.
6. Tighten the ground screw.
7. Visually examine the black cable to make sure
that no part of the protective sleeve touches the
head of the ground screw.
8. If it is necessary, loosen the ground screw and
retract the protective sleeve and tighten the
ground screw again.
To move the product off the skid
1. Lift the cutting deck to its highest position. Use
the lift lever.
2. Push the clutch/brake pedal down to release the
parking brake.
3. Put the freewheel control in the "Transmission
disengaged" position, refer to
Transportation,
storage and disposal on page 38
.
4. Push the product forward off the skid.
5. Remove the strap that holds the deflector
protection up against the product.
To do a check after the assembly
• Make sure that all assembly instructions are
completed.
• Make sure that no remaining parts are in the
package.
• Make sure that the battery is prepared and
charged correctly.
• Make sure that the bolts for the seat are
tightened and that the seat is adjusted correctly.
• Make sure that the tires are correctly inflated.
• For best cutting results, make sure that the
cutting deck is balanced side to side and front
to rear. Make sure that the tires are correctly
inflated for a balanced cutting deck.
• Examine the cutting deck and the drive belts.
Make sure that the drive belts are installed
correctly around the pulleys and inner part of all
belt keepers.
• Examine the electrical wires. Make sure that all
wires and connections are safe.
• Make sure that the freewheel control is in
the “Transmission engaged” position. Refer to
Transportation on page 38
.
• Make sure that the engine oil is at the correct
level.
• Make sure that the tank is filled with the correct
type of fuel.
• Make sure that you know the location and
function of all controls.
• Make sure that the brake system is in safe to
operate condition.
• Make sure that the Operator Presence Control
(OPC) and the Reverse Operation System (ROS)
operate correctly. Refer to
To do a check of the
operator presence control (OPC) on page 7
and
To do a check of the reverse operation system
(ROS) on page 8
.
• Remove the air from the transmission before
first use. Refer to
To remove the air from the
transmission on page 33
.
Operation
Introduction
WARNING: Read and understand
the safety chapter before you use the
product.
To fill fuel
WARNING: Gasoline is very
flammable. Be careful and refuel
outdoors. Refer to
Fuel safety on page
9
.
CAUTION: Always use correct fuel
type. Incorrect fuel type causes damage
to the product.
• Use gasoline of the correct type. Refer
to
Technical data on page 40
. For more
information about the fuel, refer to the engine
manual supplied by the engine manufacturer.
• Do a check of the fuel level before each use and
refuel if necessary.
• Do not fully fill the fuel tank. Keep a space of a
minimum 1 in.
2010 - 003 - 10.04.2023 15
