• Before you clean with water, clean with a brush.
Remove grass cuttings and dirt on and around
the transaxle fan and cooling fins.
• Examine the cooling fan to make sure the fan
blades are clean and not damaged.
To examine the transaxle pump fluid
• Make sure that the transaxle pump fluid does not
leak.
• Speak to the nearest approved service center or
department if the transaxle pump fluid leaks.
To adjust the front wheel toe-in and camber
The front wheel toe-in and camber is correctly set at
the factory. The front wheel toe-in and camber are
not adjustable.
• Speak to an approved service center if the
factory-set front wheel toe-in or camber is
damaged.
To replace the fuse
This product has an automotive-type fuse. The fuse
holder is located behind the dashboard.
1. Hold the fuse holder and pull the blown fuse out.
2. Put a new fuse in the fuse holder.
To remove and install the engine cover and
the grill assembly
1. Lift the engine cover.
2. Disconnect the headlight wire connector (A).
3. Stay in front of the tractor. Hold the engine cover
on its sides. Tilt the engine cover in the direction
of the engine and lift it to remove it from the
product.
4. Install in the opposite sequence.
To replace the drive belt
1. Park the product on a level surface and engage
the parking brake. Refer to
To stop the product
on page 18
.
2. Remove the grass catcher.
3. Remove the center discharge chute. Refer to
To
remove and install the center chute on page 28
.
4. Remove the cutting deck. Refer to
To remove
and install the cutting deck on page 28
.

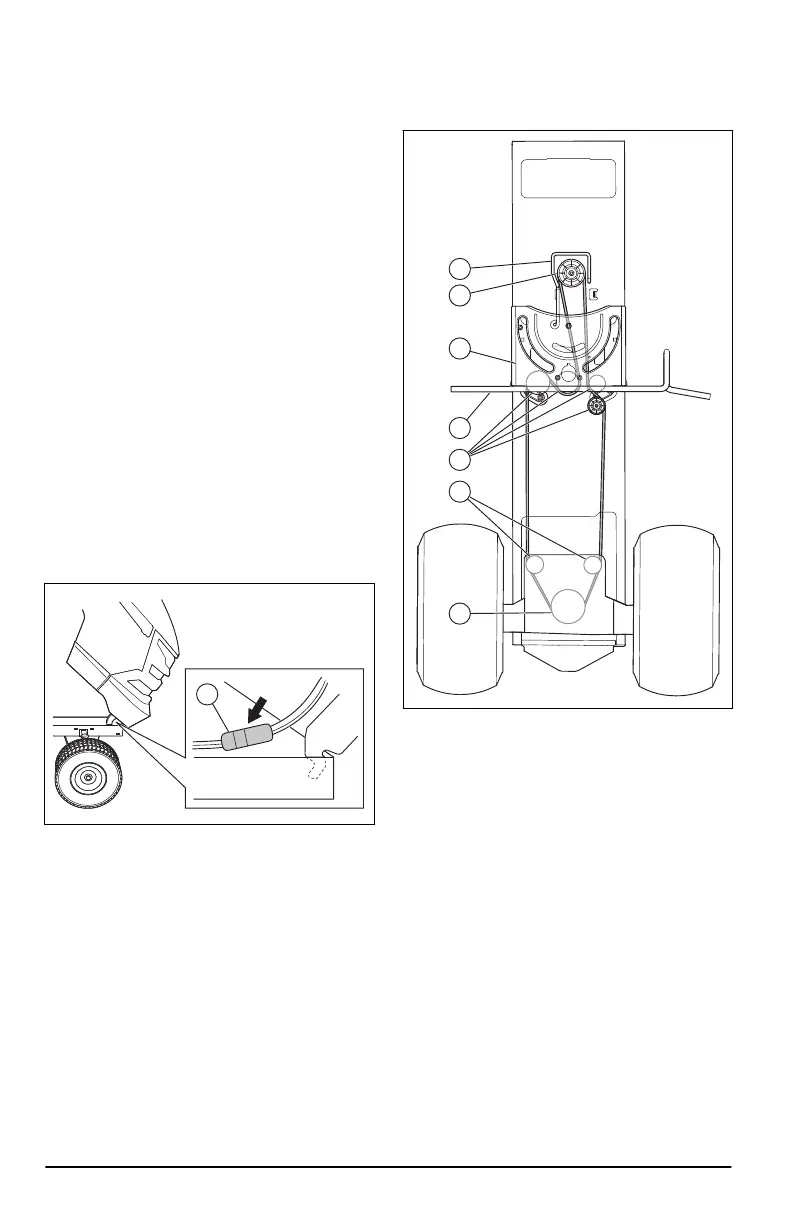

5. Remove the drive belt from the transaxle pulley
(A) and the rear idler pulleys (B).
6. Remove the drive belt from the middle idler
pulleys (C).
7. Remove the drive belt from the engine pulley (D)
and the belt guide (E).
8. Remove the movement drive belt from the
product.
9. Install a new drive belt in the opposite sequence.
Make sure that you install the drive belt on top
of the steering support plate (F) and the clutch/
brake pedal shaft (G).
Battery
To clean the battery and the terminals
Corrosion and dirt on the battery and terminals can
cause the battery to drain power.
1. Remove the terminal guard.
2. Disconnect the BLACK battery cable.
3. Disconnect the RED battery cable and remove
the battery from the product.
4. Spray the battery with water and let dry.
26
2009 - 003 - 10.04.2023
