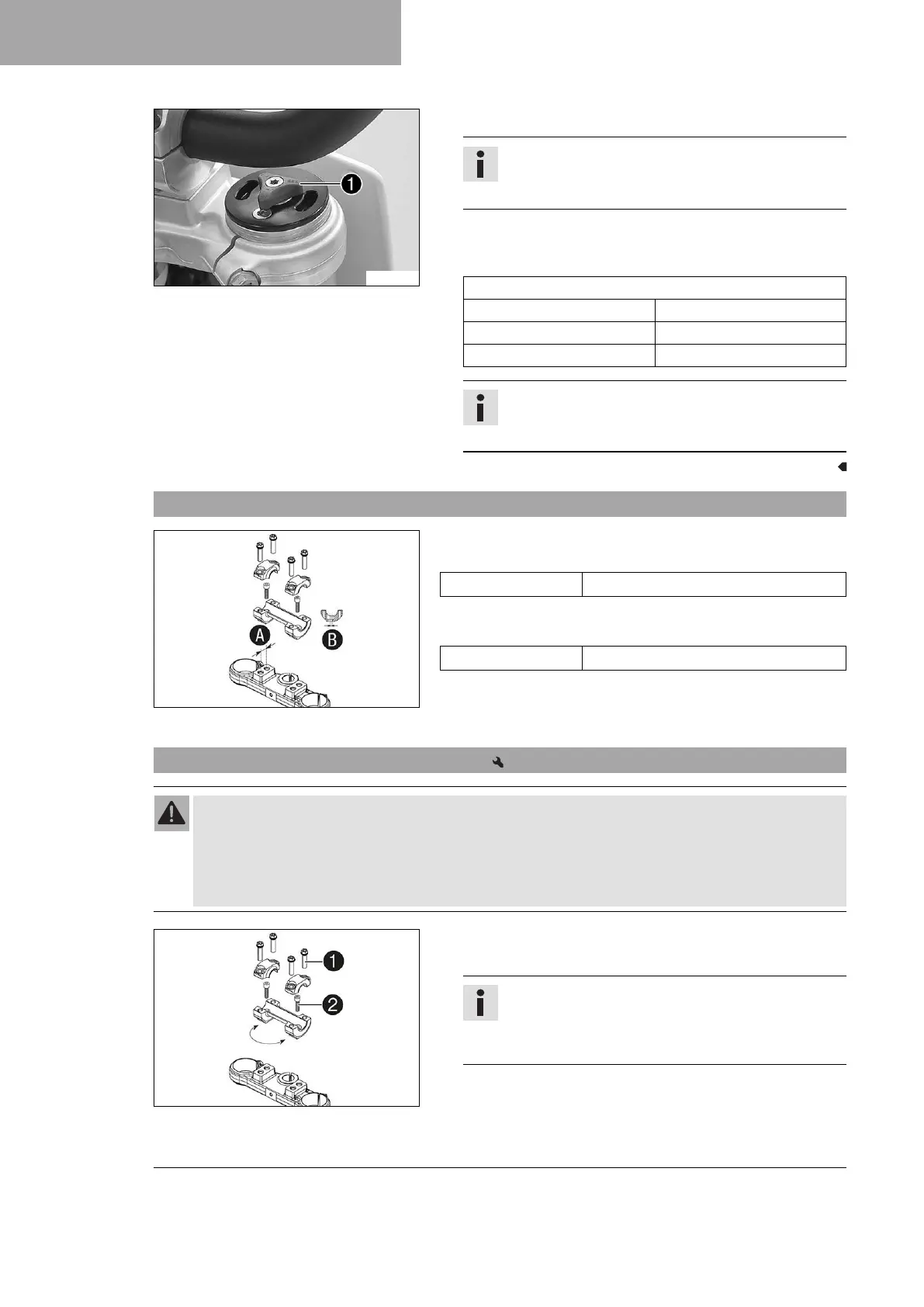

10 TUNING THE CHASSIS
40
S01479-10
–
Turn adjusting screw
1
clockwise all the way.
Info
Adjusting screw
1
is located at the upper end of the
right fork leg.
– Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Rebound damping
Comfort 15 clicks
Standard 12 clicks
Sport 10 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping.
10.15 Handlebar position
H01850-10
On the upper triple clamp, there are 2 holes at a distance of
A
to each other.
Hole distance
A
15 mm (0.59 in)
The holes on the handlebar support are placed at a distance
of
B
from the center.
Hole distance
B
3.5 mm (0.138 in)
The handlebar holder can be mounted in four different positions.
This allows the handlebar to be mounted in the most comfortable
position for the rider.
10.16 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
H01851-10
–
Remove screws
1
. Take off the handlebar clamps. Remove
the handlebar and lay it to one side.
Info
Protect the motorcycle and its attachments against
damage by covering them.
Do not kink the cables and lines.
–
Remove screws
2
. Remove the handlebar support.
