Husqvarna TC 50 User Manual

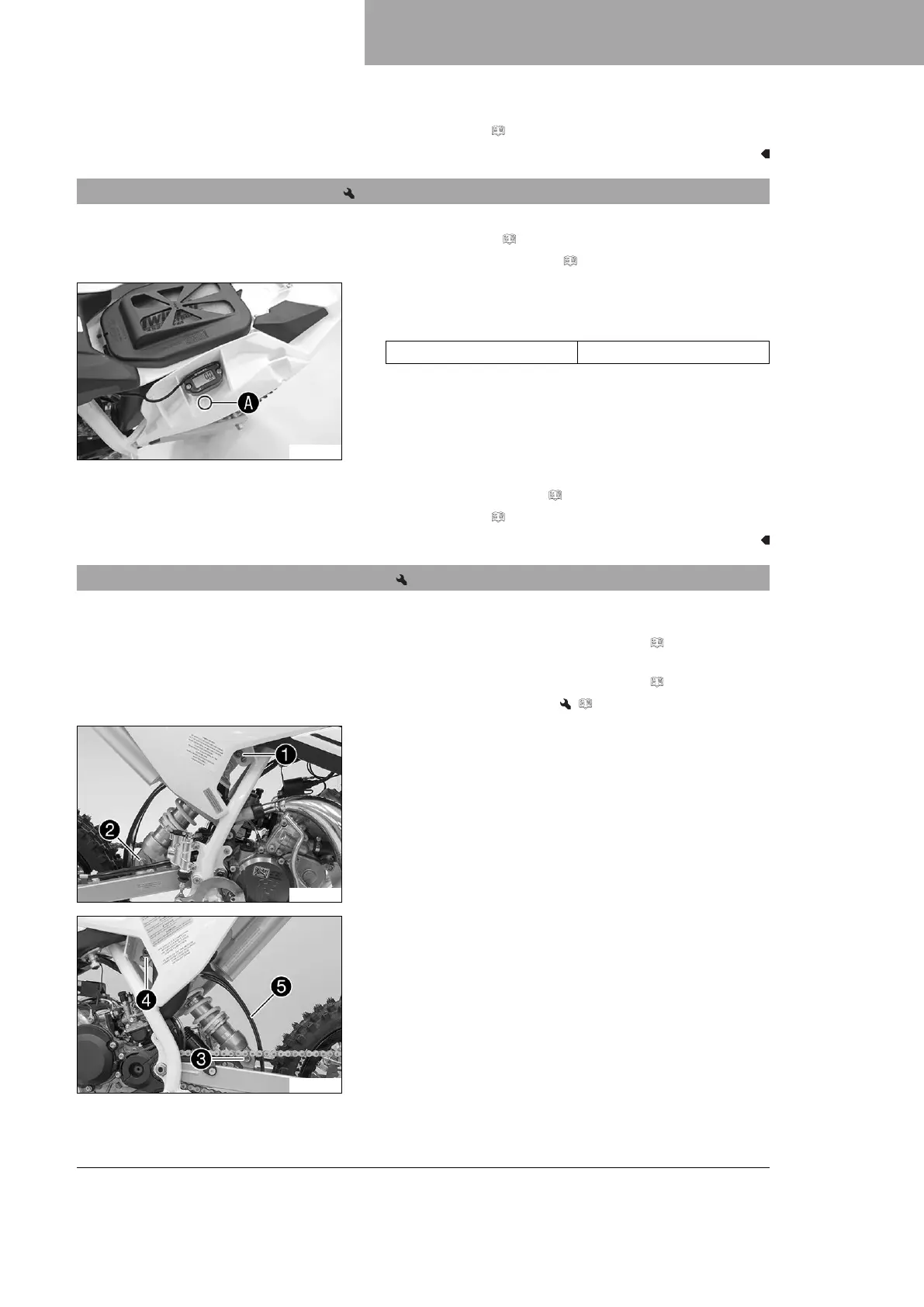

11 SERVICE WORK ON THE CHASSIS
61
Finishing work
– Mount the seat. ( p. 63)
11.25 Securing left side cover
Preparatory work
– Remove the seat. ( p. 63)
– Remove the left side cover. ( p. 59)
S01548-10
Main work
–
Drill a hole at marking
A
.
Guideline
Diameter 6.5 mm (0.256 in)
Finishing work
– Install the left side cover. ( p. 60)
– Mount the seat. ( p. 63)
11.26 Removing the shock absorber
Preparatory work
(TC 50)
– Raise the motorcycle with a lift stand. ( p. 43)
(TC 50 Mini)
– Raise the motorcycle with a lift stand. ( p. 43)
– Remove the rear wheel. ( p. 91)
K00676-10
Main work
(TC 50)
–
Remove nut
1
and
2
.
K00670-11
–
Remove screw
3
and lower the rear wheel with the
swingarm as far as possible without blocking the rear
wheel. Secure the rear wheel in this position.
–
Remove screw
4
, push splash protector
5
to the side,
and remove the shock absorber.
