6 CONTROLS 15

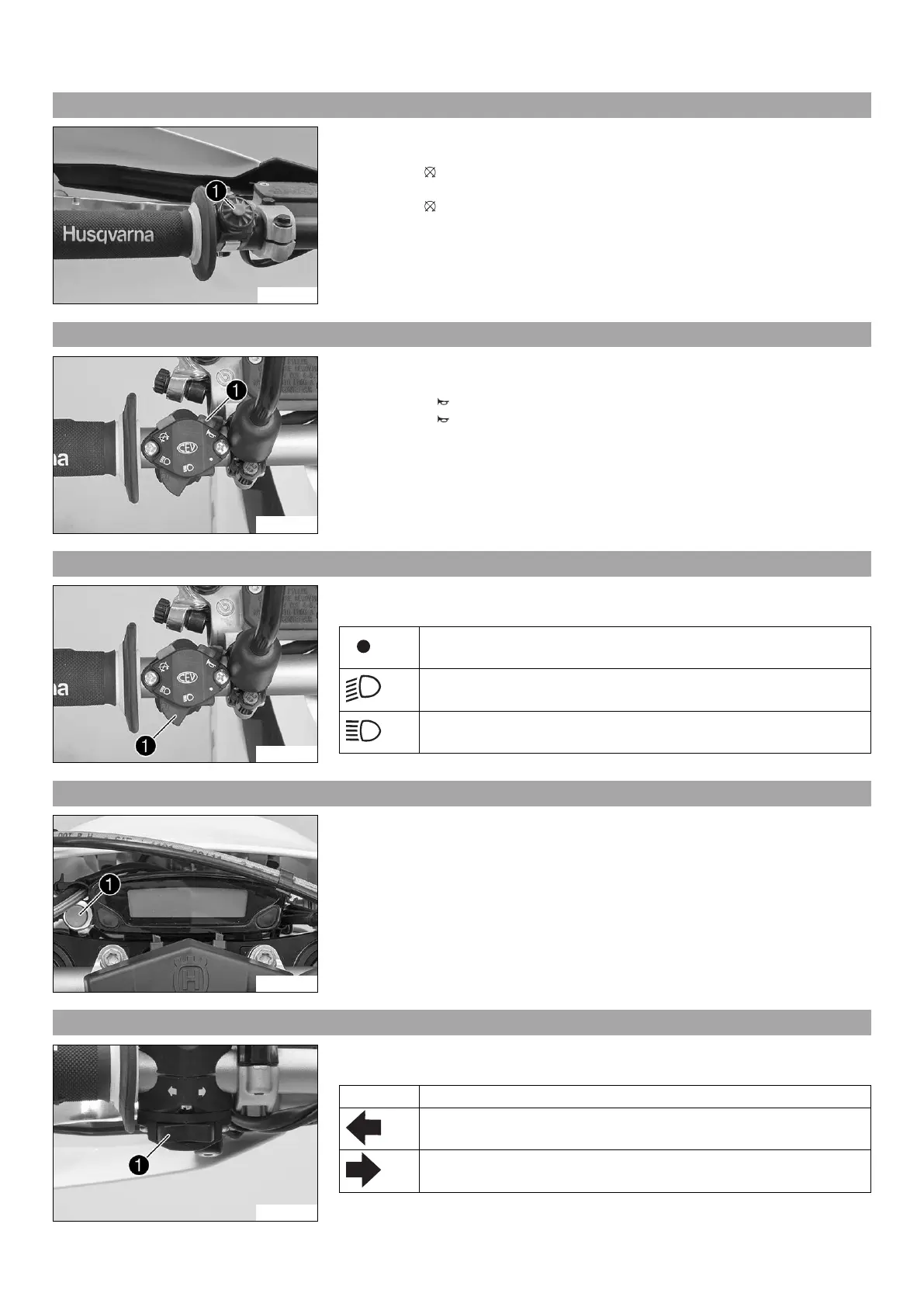

6.5 Kill switch (TE US)
B01827-10
The kill switch
is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – In this position, the ignition circuit is closed and the
engine can be started.
• Kill switch is pressed – In this position, the ignition circuit is interrupted, a running
engine stops, and a non-running engine will not start.
6.6 Horn button (TE EU/AU)
M00352-11
The horn button
is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – The horn is operated in this position.
6.7 Light switch (TE EU/AU)
M00352-12
The light switch
is fitted on the left side of the handlebar.
Possible states
Light off – The light switch is turned to the right. In this position, the light
is switched off.
Low beam on – The light switch is in the central position. In this position,
the low beam and tail light are switched on.
High beam on – The light switch is turned to the left. In this position, the
high beam and the tail light are switched on.
6.8 Light switch (TE US)
M00355-10
The light switch
is on the left of the speedometer.
Possible states
• Light off – Light switch is pressed in up to the stop. In this position, the light is
switched off.
• Light on – Light switch is pulled out to the stop. In this position, the low beam and
tail light are switched on.
6.9 Turn signal switch (TE EU/AU)
M00353-10
The turn signal switch
is fitted on the left side of the handlebar.
Possible states
Turn signal light off – The turn signal switch is in the central position.
Left turn signal on – The turn signal switch is turned to the left.
Right turn signal on – The turn signal switch is turned to the right.
