Hussmann CRFD - Refrigeration (Contd); T-STAT Location; Condensate Evaporator

Rev. 0508
5
Bulb
Schrader
Fitting
TXV

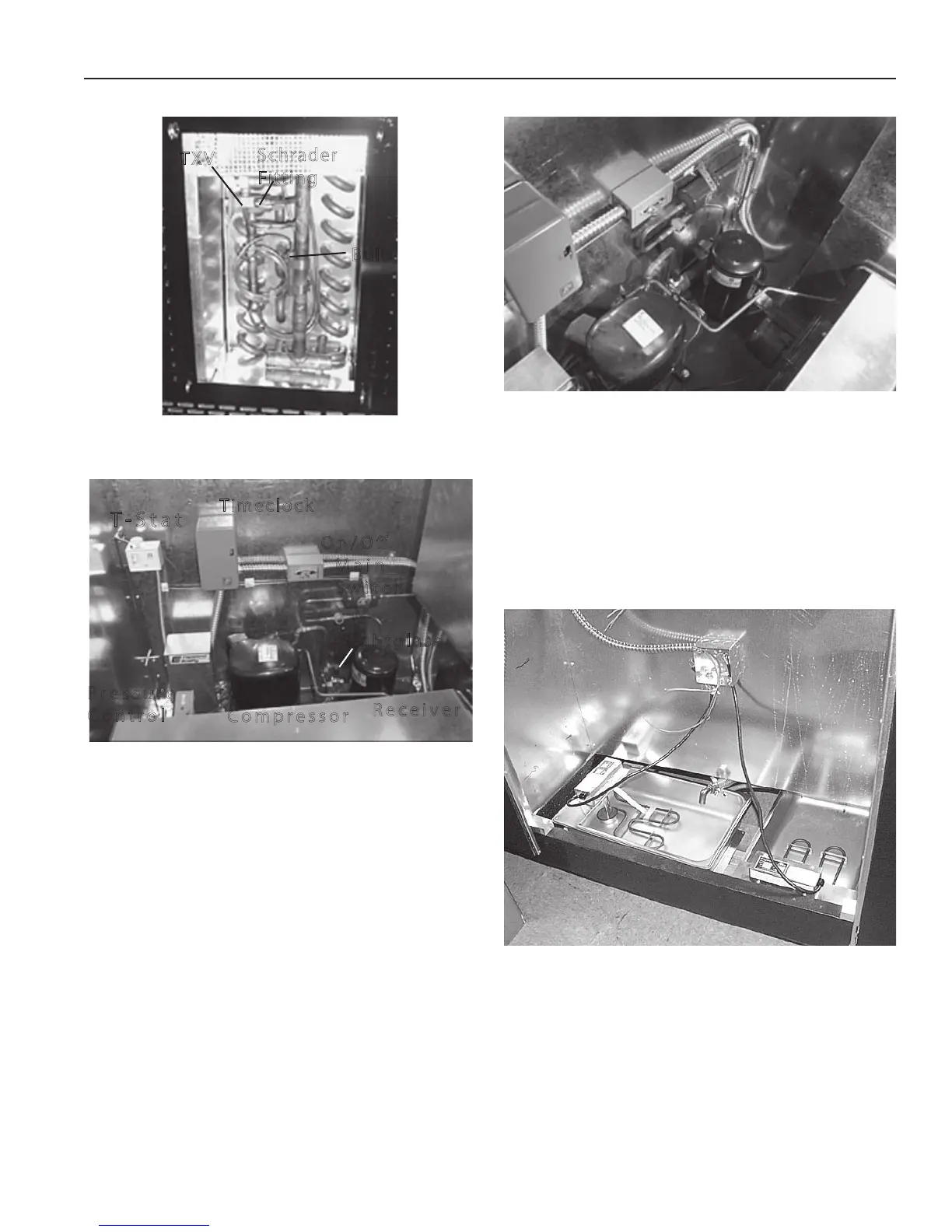

T-STAT Location
T-STATS are indicated in diagram below.
T - S t a t
T - S t a t
Timeclock
Timeclock
O n / O 
O n / O 
M a i n
M a i n
S w i t c h
S w i t c h
P r e s s u r e
P r e s s u r e
C o n t r o l
C o n t r o l
C o m p r e s s o r
C o m p r e s s o r
R e c e i v e r
R e c e i v e r
S ig h t g la s s
S ig h t g la s s
Condensate Evaporator
The condensate evaporator is a 5000 watt heater unit
located on the lower back of the unit, inside the condensate
pan. It is designed to evaporate water that comes from the
coil when the unit is defrosting. The unit is temperature
self regulating and should be constantly connected to
power in order to operate as required. Should the unit be
disconnected case ooding will occur.
The CRFD 1/2 is supplied with a 1500 watt, 208 volt
Evapoway condensate with oat switch.
Refrigeration (Cont'd)
