Hussmann IMPACT D5 - Specifications; Refrigeration Data; Physical Data; Defrost Data

3 of 6
P/N 0378427D
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
C
O
I
L
61
(1549)
81
3
/8
(2066)
45
5
/8
(1159)
23
(584)
D5
FAN
5
3
/4
(146)
3
1
/8
(79)
52
1
/4
(1429)
7
1
/2
(152)
46
1
/4 (1174)
27
1
/2 (699)
30
1
/8
(765)
4
1
/4
(108)
29
1
/2 (749)
4
1
/2
(114)
38
5
/8 (981)
6
3
/4 (171)
53
5
/8
(1360)
7
(178)
4 (102)

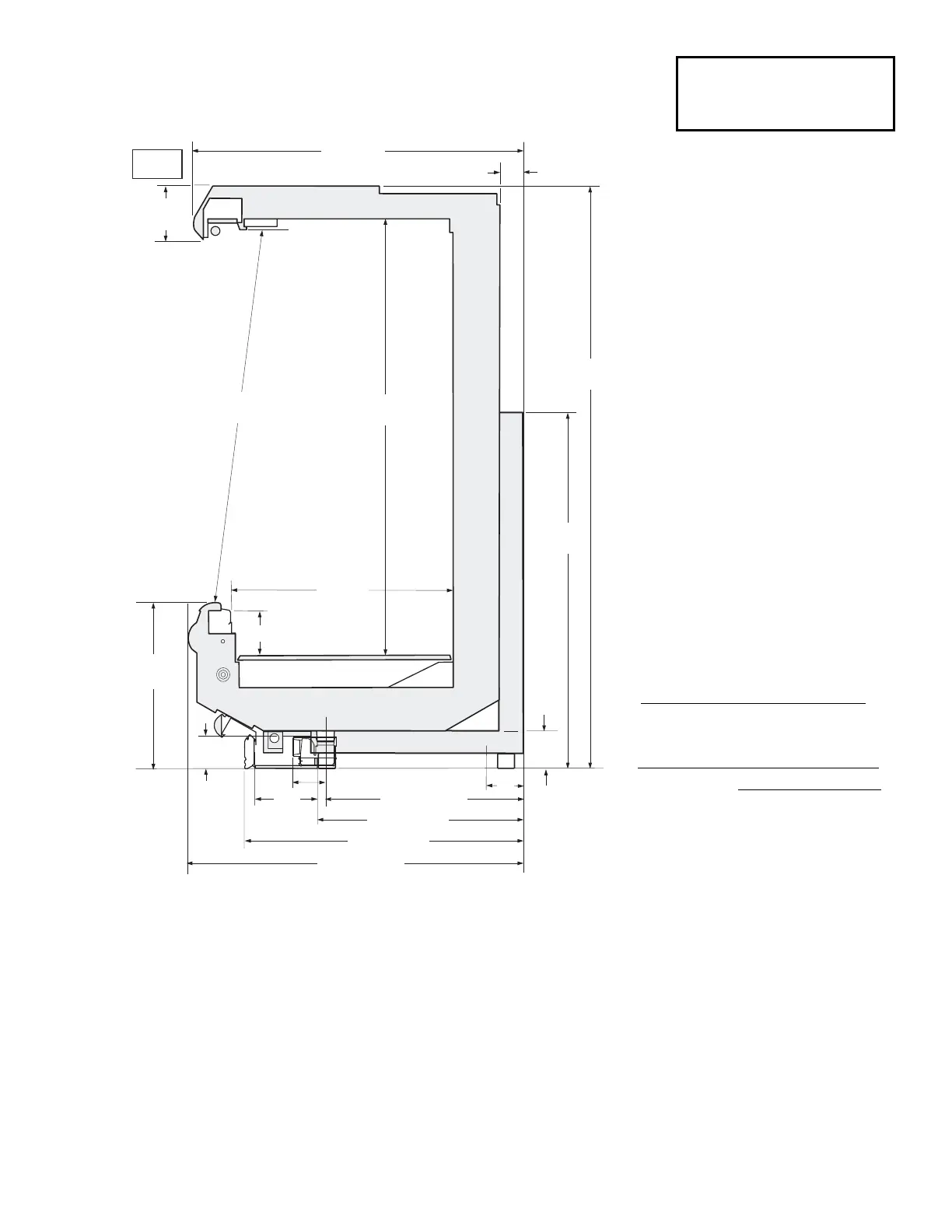

Impact D5
Dairy & Delicatessen
Dimensions shown as in. and (mm).
NOTE: The bumpers are 4 in. (102 mm) wide. The center of the top bumper
is 18
1
/8 in. (460 mm) from the floor and the center of the lower
bumper is 6
1
/8 in. (155 mm) from the floor.
Multi-deck, 5 Display Levels
NSF Certification
These merchandisers are manufactured to meet ANSI /National Sanitation
Foundation (NSF
®
) Standard #7 requirements.
REFRIGERATION DATA
Note: This data is based on store temperature
and humidity that does not exceed 75°F and
55% R.H.
D5 D5E
Discharge Air °F 31 32
Evaporator °F 21 24
Unit Sizing °F 19 22
Btu/hr/ft* D5 D5E
L
IT &UNLIT SHELVES
Parallel 1410 1355
Conventional 1500 1440
H
USSMANN PEG SHELVES (DELI ONLY)
Parallel 1530 1475
Conventional 1620 1560
*For all refrigeration equipment other than
Hussmann, use conventional Btu values.
DEFROST DATA
Frequency Hrs 66
Defrost Water (lb/ft/day) 10.50
(± 15% based on case configuration and
product loading).
O
FFTIME
D5 D5E
Temp Term °F 48 48
Failsafe Minutes 30 35
E
LECTRIC OR GAS
Not Recommended
Standard Defrost Thermostat
Close on rise: close 48°F — open 33°F
CONVENTIONAL CONTROLS
Low Pressure Backup Control
CI/CO** D5 D5E
14°F / 5°F 17°F / 7°F
Indoor Unit Only, Pressure Defrost
Termination** 48°F
**Use a Temperature Pressure Chart to
determine PSIG conversions.
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1
1
/2
Merchandiser Liquid Line (in.)
3
/
8
Merchandiser Suction Line (in.)
7
/8
Estimated Charge (lb)***
D5 D5E
8 ft 2.3 2.7
12 ft 3.3 3.9
***This is an average for all refrigerant types.
Actual refrigerant charge may vary by
approximately half a pound.
Length Added to Lineup by
Each End (in.) 1
1
/
2
Each Insulated Partition (in.) 1
1
/2
