Hussmann microSC MDN-BA - Page 34

4-4 SERVICE
P/N 9FQ-6-P110-075-00_B U.S. & Canada 1-800-922-1919 • Mexico 01 800-890-2900 • www.hussmann.com

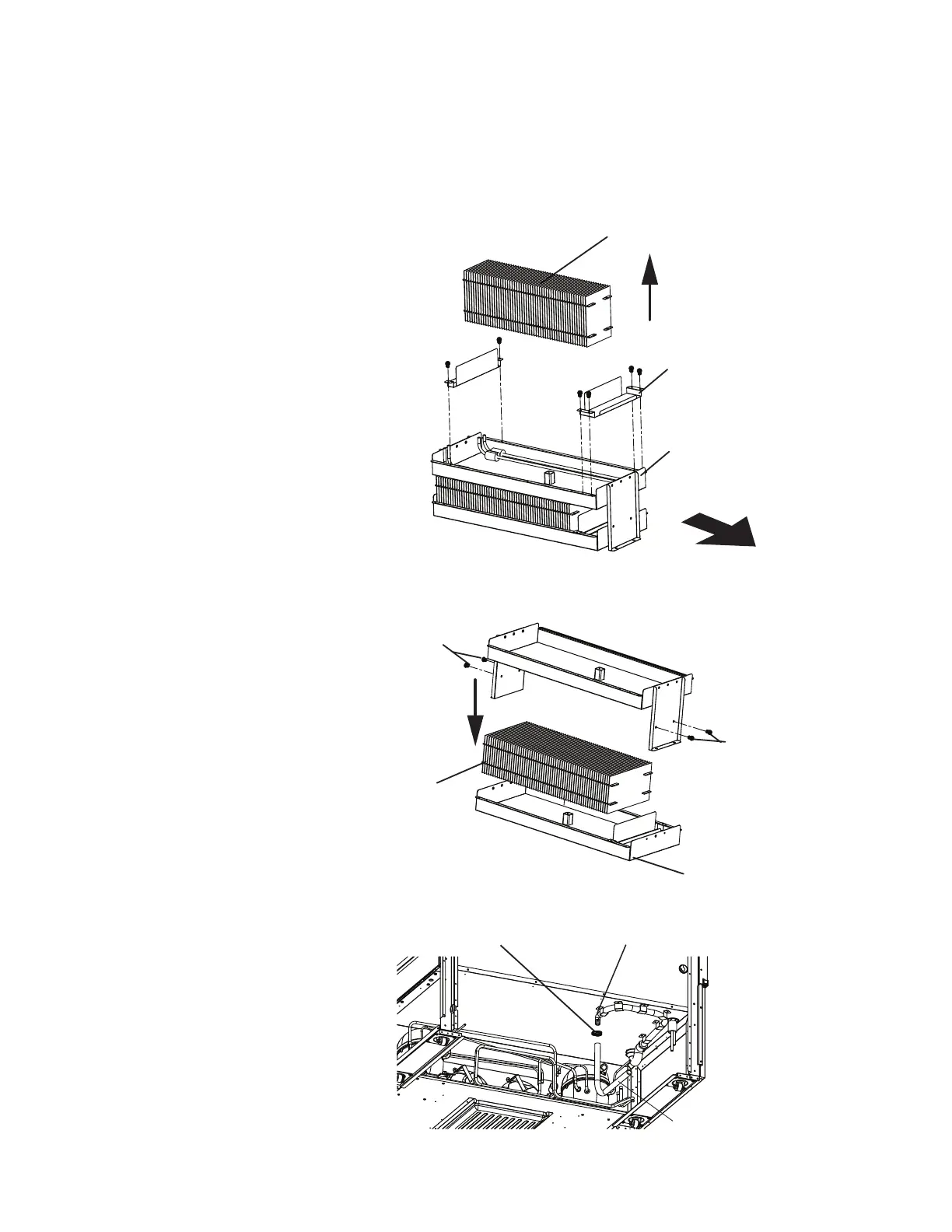

Evaporation tray assy
Lower moisture wicking plates
(Not needed after modication)
Screws
Screws
⑦
⑨
Upper moisture wicking plates
(Not needed after modication)
Refrigeration
System Tray
Bracket
Drain hose
⑥ Remove upper moisture wicking plates.
⑦ Remove 6 screws from the 2 brackets that attach to
the evaporation pipe. Then remove evaporation
tray assembly. (Do not remove the evaporation pipe.)
⑧ Remove 4 screws that attach to the
lower evaporation tray and
lower moisture wicking plate. Then remove the tray assembly
and the moisture wicking plate.
⑨ Attach a drain hose to the socket
on the upper evaporation tray.
Then apply a hose band to x.
⑧
Hose Band
Socket
