Hussmann microSC MDN-BA - Page 35

P/N 9FQ-6-P110-075-00_B 4-5
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Open Vertical Merchandisers
－ 58 －

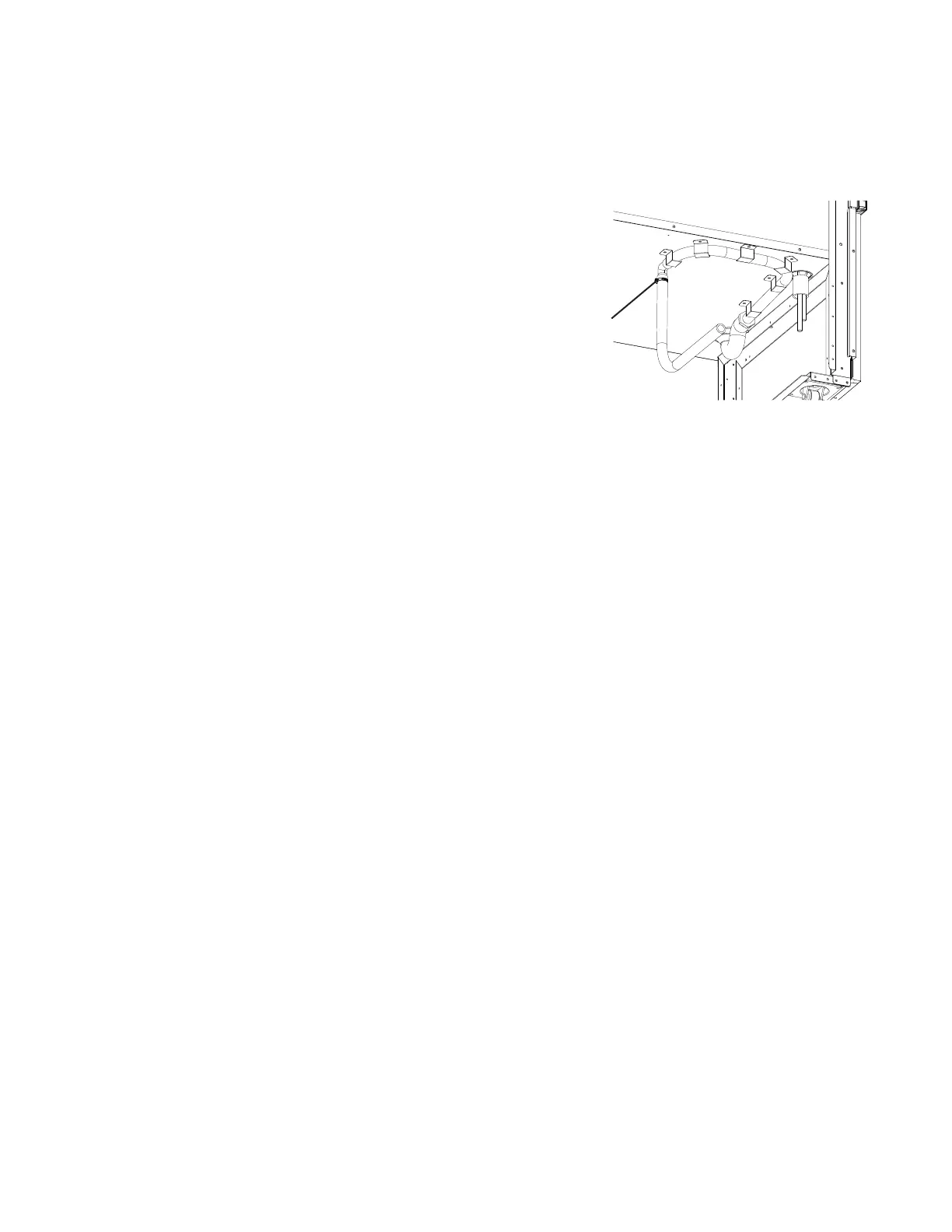

Caulking
Drain hose
Back guard
Parts List
No Part Name Part Code Quantity
１ Drain hose ４ＦＬ－２－６３６０－１９８－００
１p
２ Hose band ８２１－０－８２０６－０２７－００
１p
⑫ Mount the upper evaporation tray with the drain
hose onto the unit base. Assemble parts removed
by the steps taken in a reverse order.
⑬ Then remove back guard from the rear side of merchandiser.
Pass the drain hose through the hole.
⑭ Make sure the back guard is mounted properly.
● Handle the drain hose in a position lower than the evaporation trays.
If work in a position higher than the top of socket, water leak may occur.
● After this modication, the drain hose may be hooked when pull out the unit
from the merchandiser. Please pay attention
Important
⑩ Apply caulking on drain hose connection to prevent water leaks.
Apply caulk
