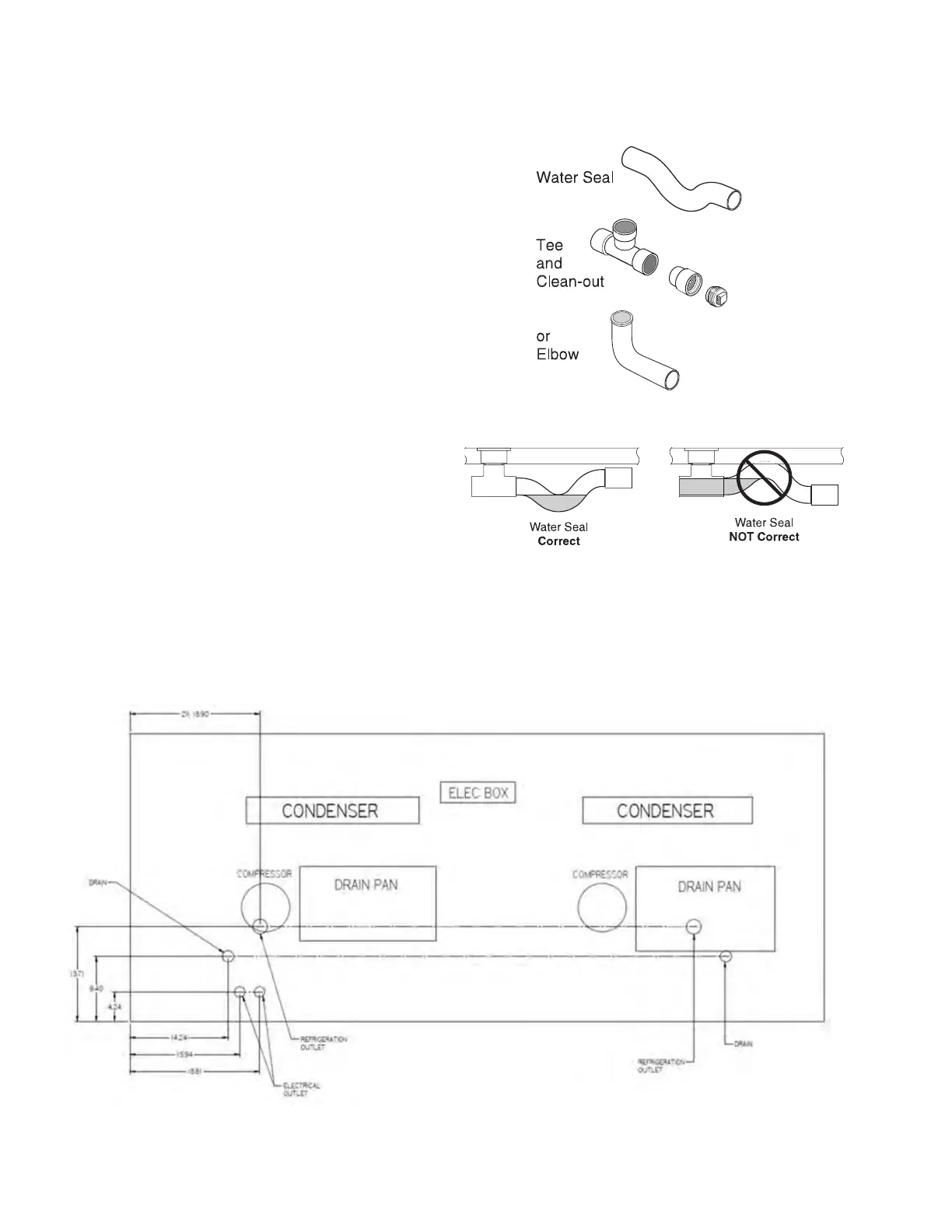

WASTE OUTLET AND WATER SEAL
These merchandisers have two waste outlets.
The condensate water outlet is located at each
end of the merchandiser. The outlet has a
factory installed, external water seal. For self-
contained models, this water seal may drain
into the condensate evaporator pan located
beneath the merchandiser, or directly to a floor
drain. The water seal is installed to prevent air
leakage and insect entrance.
For cases with evaporation pans:
Make sure the water level is similar in both
pans. During defrost cycle or off-time when the
compressor reaches setpoint, the water from the
evaporator goes to each evaporation pan.
NOTE: All lower base panels must be in place
when the refrigerator is operating. If not,
airflow from the condenser will be directed over
the evaporator pan and defrost water in the
pan may overflow.
