HUSTLER Super 104 - Page 43

125816 6-7 REV B
Center Deck Belt Routing & Tensioning
NOTE:
1. Spring length after tensioning new belt. Measured from outside of hook to outside of hook with deck set at 3¼” (82.6 mm) cut
height.

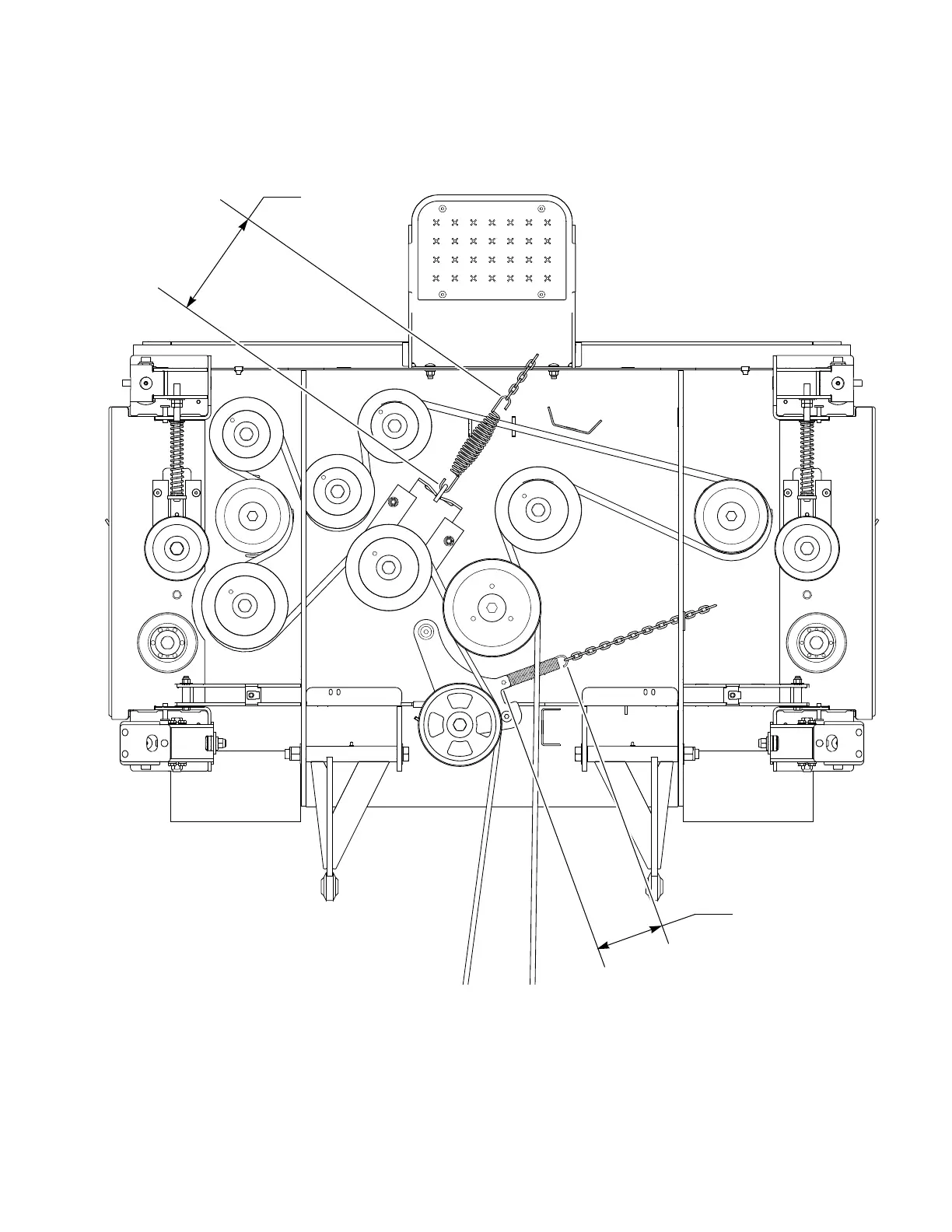

2. Route belts as shown.
Figure 6-15
8.2” – 9.2”
(208 – 234 mm)
9.3” – 10.3”
(236 – 262 mm)
