24 SLIT LAMP HS-5000 5X------------------- ----------------------------------------------------------------
z Place the head rest module(59) and make sure that its holes fit together with
those of the table top. Tighten the screw with the screw driver
z
Place the base with orthogonal movements on the guides situated on the
upper part of the table top, checking that the wheels are in line. Then Place the
crankcase(59) and make sure that its holes fit together with those of the
toothed guides(17). Tighten the screw with the screw driver(+)
z Assemble the microscope arm(45) on the Base with orthogonal move
ments(10).

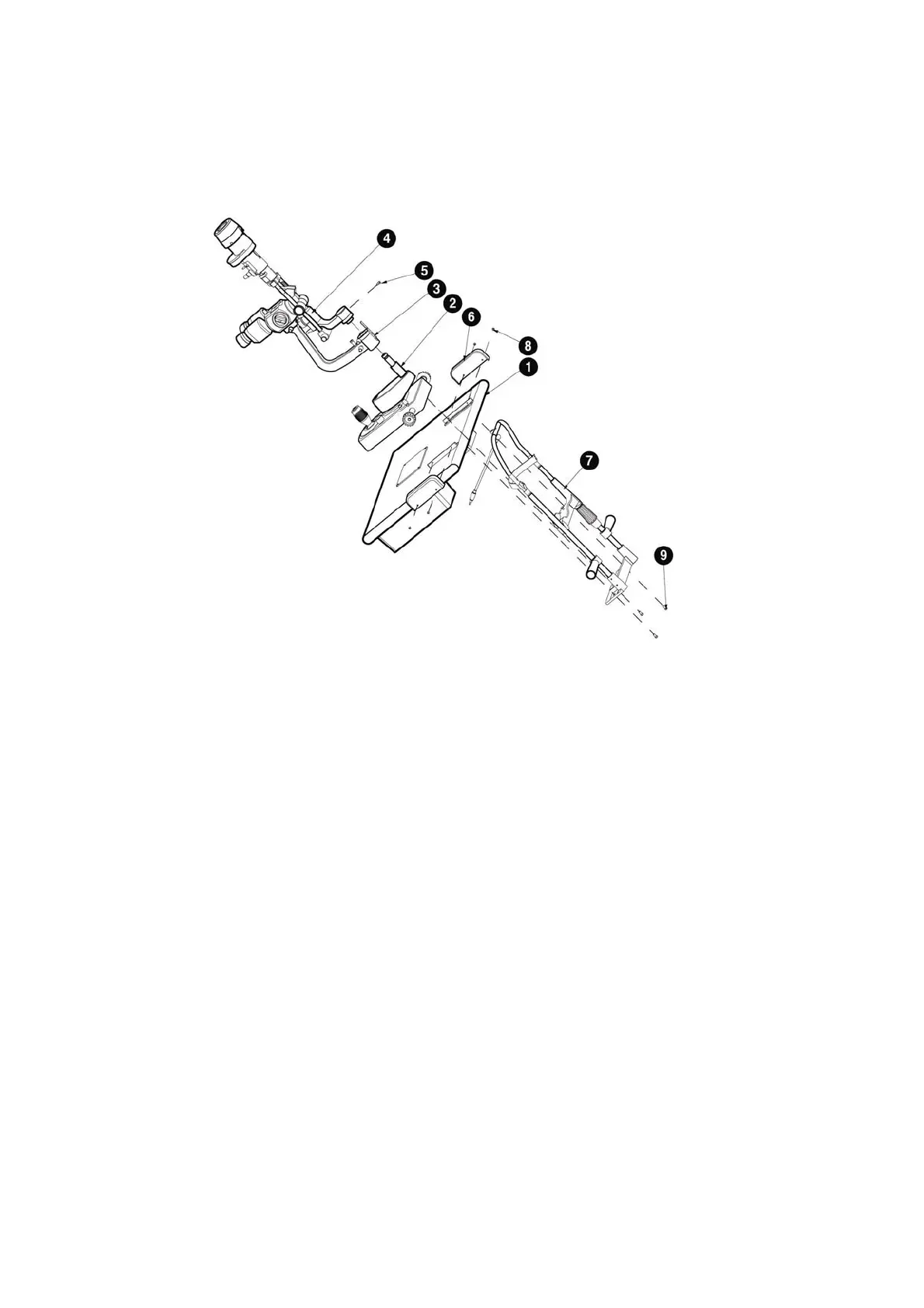

[ Figure 5. Assembling the instrument I]
