HWAM Vivaldi - Grate Cover Plate

E & OE Instructions Part number IN1141 Ed B
9
© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Nov 2006

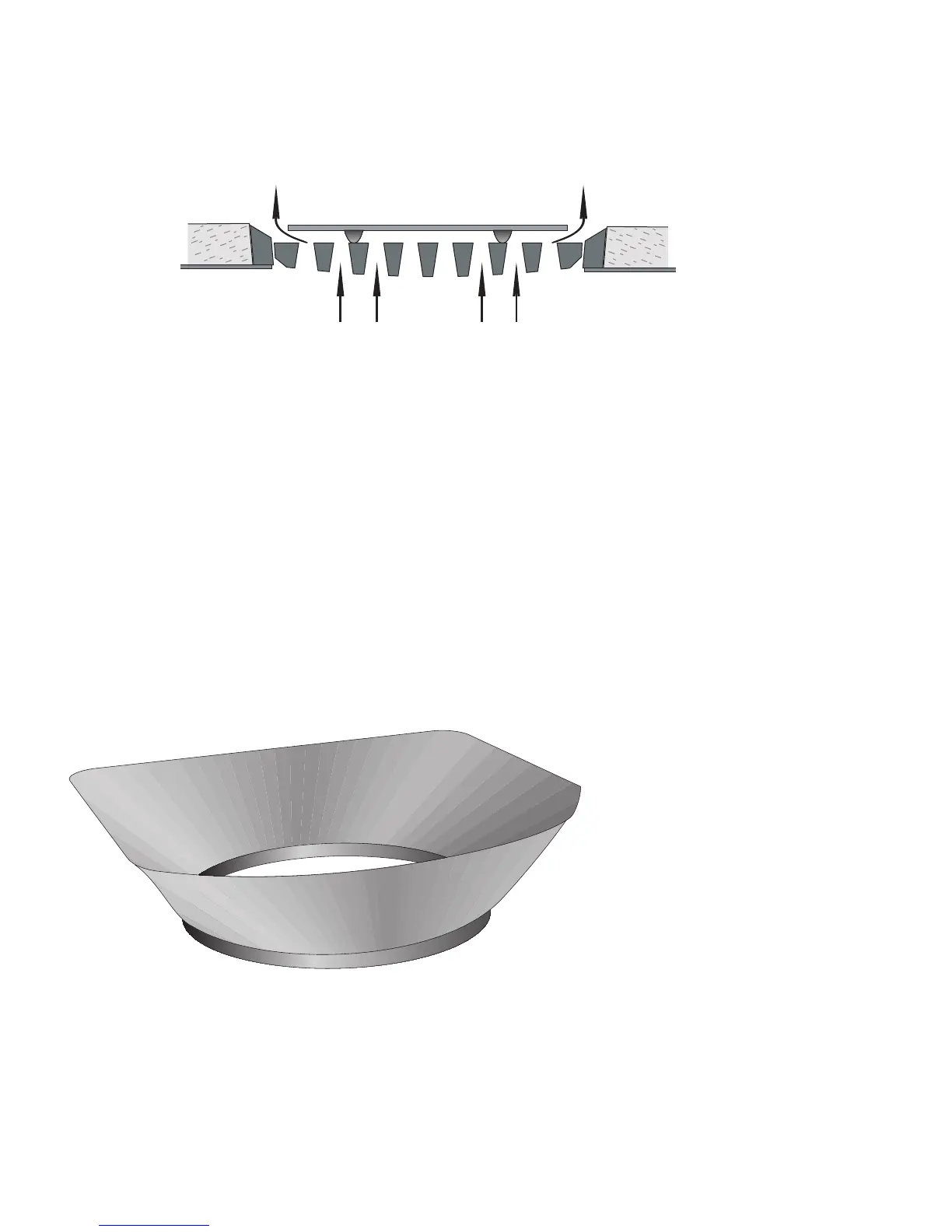

Grate Cover Plate
Your HWAM stove is supplied with a loose cover plate for the riddling grate. This is a 3 mm thick steel plate. It
is placed on top of the riddling grate and prevents the embers from falling into the ash pan. The cover plate is
raised approx. 8 mm above the grate, thus ensuring that the automatically controlled primary combustion air is
distributed evenly at the base of the combustion chamber.
Smokeless Fuel Hopper (optional accessory)
When burning smokeless fuels it is imperative that the grate cover plate (see above) is removed and the smokeless
fuel insert is placed on top of the grate. If you burn smokeless fuels without using the fuel hopper irreparable
damage may be done to the stove.
The air wash control for clean glass should be set to the minimum open position when burning smokeless fuel.
Do not over fill the insert with smokeless fuel.
Part No. HW99-0600
Beethoven, Dali, Monet, Mozart, Ravel & Vivaldi
