The H-18/22 SV hydraulic system does not require any special work on a new machine before its start-up. The hydraulic
tank is lled with Texaco Rando HD 46 hydraulic oil and all machine functions have been tested at the factory to ensure
proper operation upon initial start-up.
SECTION 5 - HYDRAULIC SYSTEM
FOR HYDRAULIC SCHEMATICS AND PLUMBING DIAGRAMS
SEE PDF ON ATTACHED CD.

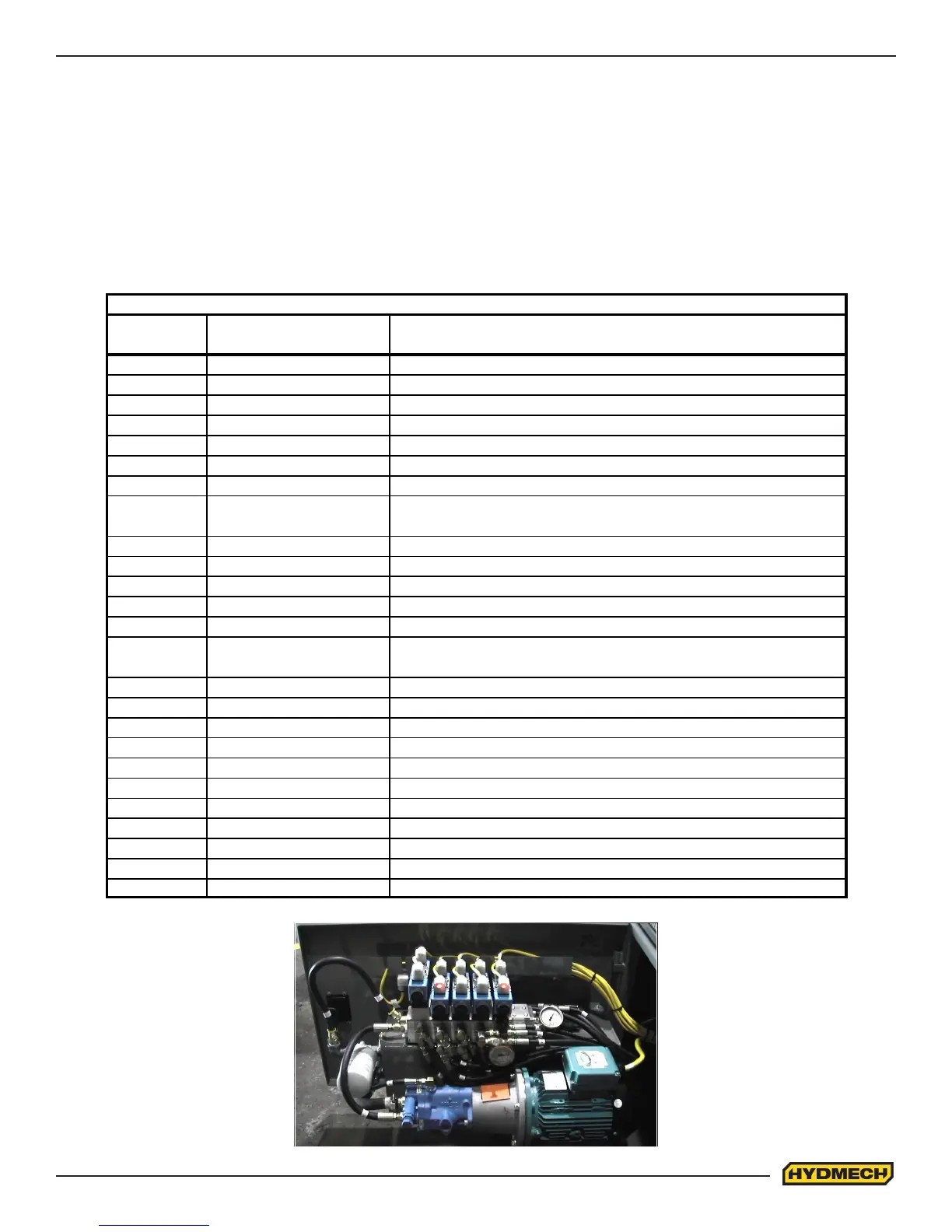

HYDRAULIC COMPONENT LIST
QTY (H18A)
QTY (H22A)
PART NUMBER
DESCRIPTION
1 H22-C41-00A MAIN HEAD CYLINDER
1 H22-C42-00 AUX HEAD CYLINDER
1 H14-C1-00A SHUTTLE CYLINDER
1 H14-C22-00 DATUM CYLINDER
1 H22SV-C31-00C FT VISE CYLINDER
1 H22-C31-00C SHT VISE CYLINDER
(2 or 3) H22SV-C23-00 BUNDLING CYLINDER
1
1
S25-C5-00 (H18)
H22-C5-00A (H22)
BLADE TENSION CYLINDER
1 MB6PA MANIFOLD BLOCK
1 DDF6-0-00FP DDF VALVE
2 363300 DOUBLE PILOT CHECK VALVE (DPCH-1)
4 363295 DIRECTIONAL VALVE (DCV3P-AB-T)
1 363290 DIRECTIONAL VALVE (DCV3P-AB-C)
1
2
363160 POPET VALVE (PV2P-A-C)
1 CHB-25C CUSHION BLOCK
1 362690 CHIP AUGER MOTOR (HM-01)
1 363155 (H22 Only) PRESSURE REDUCING VALVE (PRV-2)
1 362745 HYDRAULIC PUMP (HYP-1)
1 363105 RETURN FILTER ELEMENT (SF 6520)
1 363235 PRESSURE REDUCING VALVE (PBDB OBN E21)
1 363150 PRESSURE REDUCING VALVE VVP OPTION (PRV1-10-K-6T-12 )
1 JB-02A DOUBLE JUNCTION BLOCK VVP OPTION
1 363140 HYDRAULIC CARBIDE LOCK CARTRIDGE (PRV1-10-S-0-6)
2 SPCH-1 SINGLE PILOT CHECK VALVE
1
362700 (H22 Only)
BLADE BRUSH MOTO
H18ASV & H22ASV HYDRAULIC LIST
To Next Page
