Hydac HNS 526 - Operating Elements of the HNS 526

HNS 526 9
Version: 06.10.2014 HYDAC ELECTRONIC GMBH Part No.: 669869
E
■ Install the sensor at the installation location so that it can function correctly.
■ Plug the connector cable into the M12x1 (4-pole) connector.
Pin Colour coding* HNS 526-2 HNS 526-3
1 brown +U
B
+U
B
2 white SP2 I / U
3 blue 0 V 0 V
4 black SP1 SP1

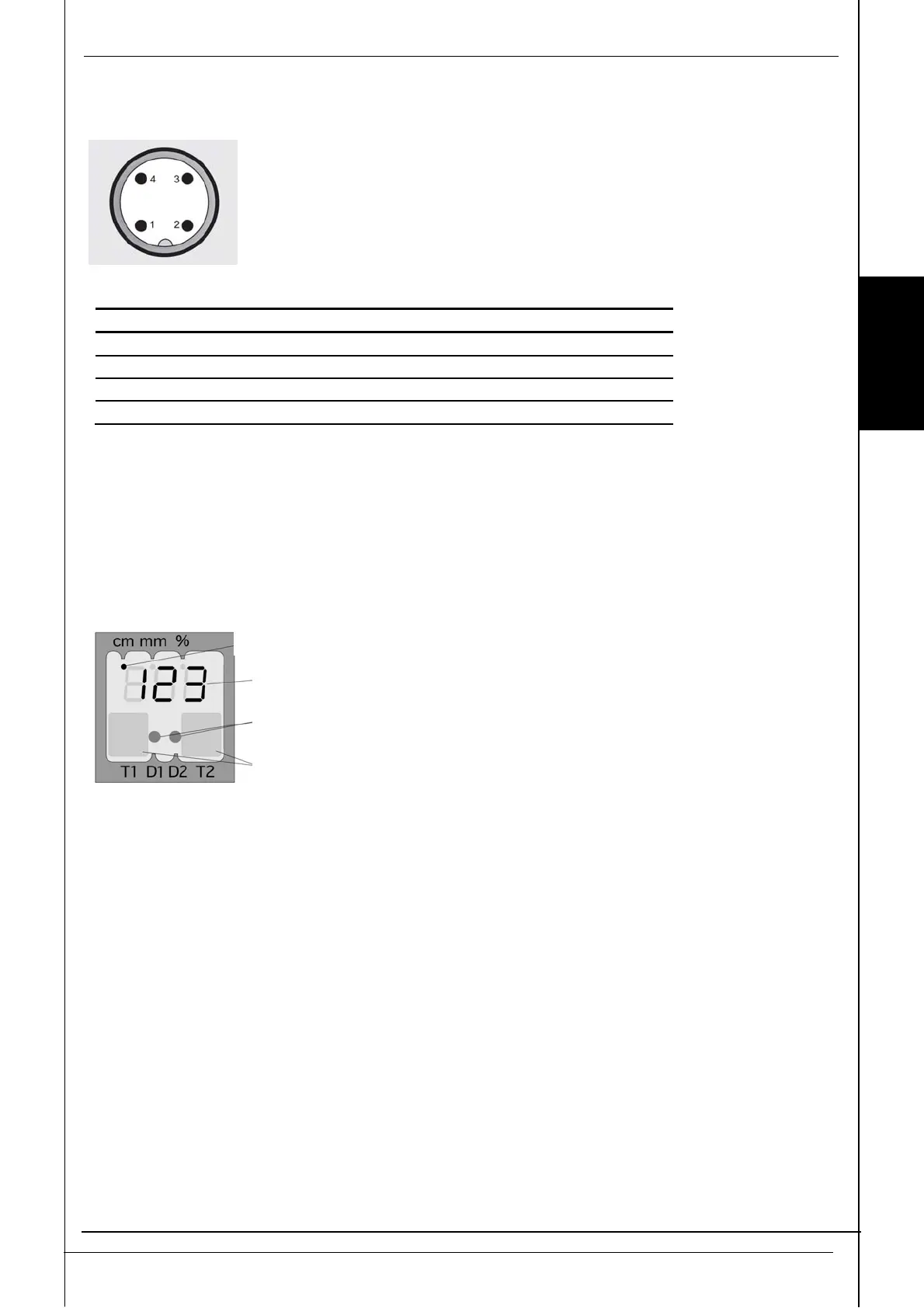

Fig.: Pin assignment (view onto sensor connector, colour coding
of the HYDAC connection cable)
* valid for HYDAC accessories ZBE 06-02 and ZBE 06-05.
5 Operating elements of the HNS 526
Use the keys to select the next menu point, or alternatively to adjust the values.
T1
•
To scroll through the menu
•
Increase the value
•
Hold the key down to
fast-scroll through the
parameter values
T2
•
To select the menu point
•
To confirm value
3-digit LED display
LED D1 and D2
Buttons T1 and T2
