7.1.2 Window function setting (Fno / Fnc))
The window function enables a range to be monitored. An upper and a lower switch point
which defines the range can be assigned to each switching output.
The relevant output will then switch when the level enters this range.
When the level leaves this range, i.e. when the switch-back point has been reached, the
output switches back. The lower switch-back value is just below the lower switch value. The
upper switch-back value is just above the upper switch value. The range between the switch
value and the switch-back value forms a safety margin which prevents unwanted switching
operations from being triggered (such as those triggered by the pulsations of a pump).

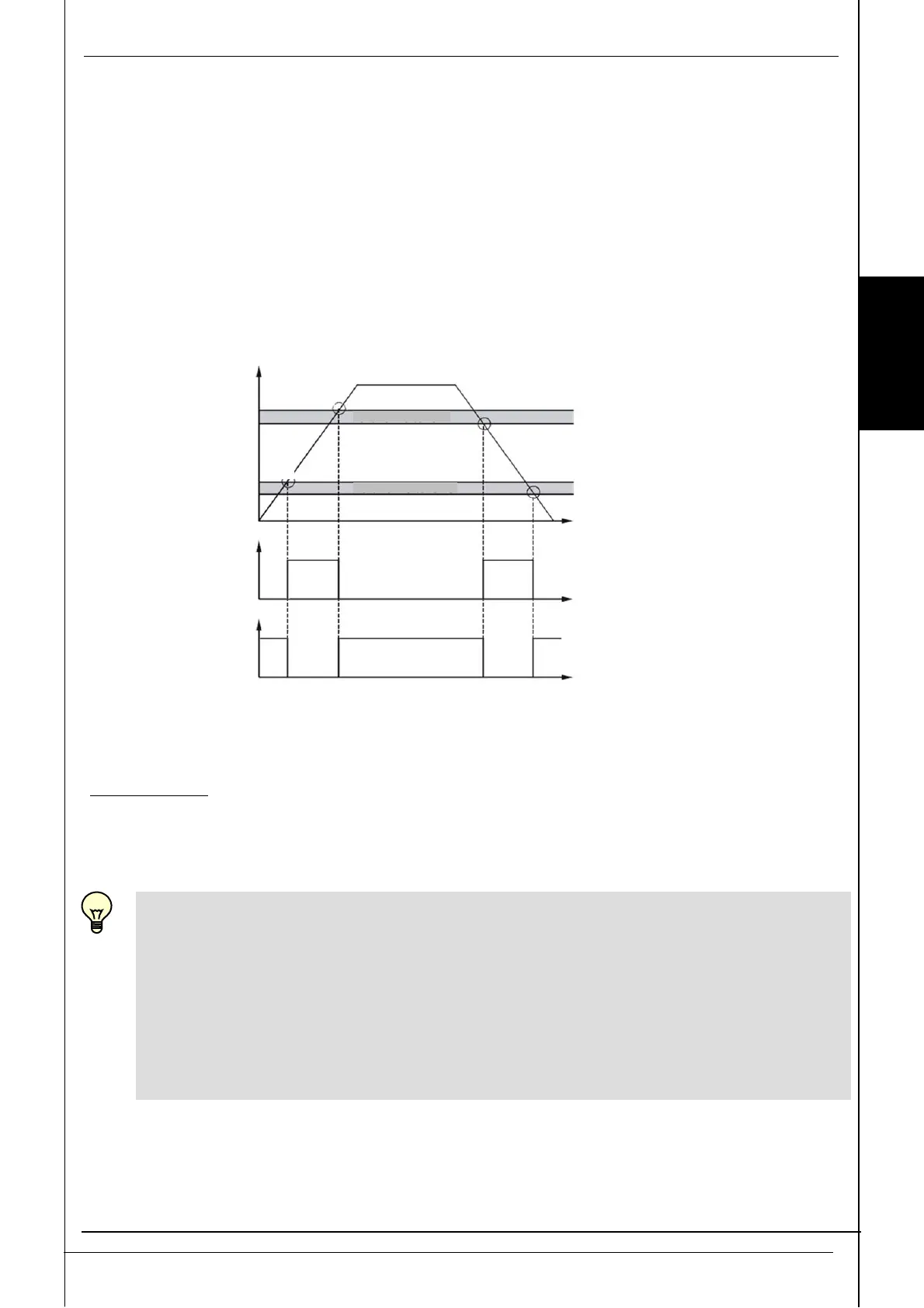

Example for switching output 1 (N/C and N/O function):
Abbreviations: "FH1", "FH2" = upper switch value 1 / upper switch value 2
"FL1", "FL2" = lower switch value 1 / lower switch value 2
"FNO" = N/O when window function is active
"FNC" = N/C when window function is active
Notes:
■ It is only possible to set the switch point (SP) if it is higher than the respective
switch-back point (RP). In the case of low SPs we recommend setting the RP first.
■ The window function only works properly (switching on and off) if all switch values
(including the safety margin) are higher than the blind zone and below the
maximum scanning range.
