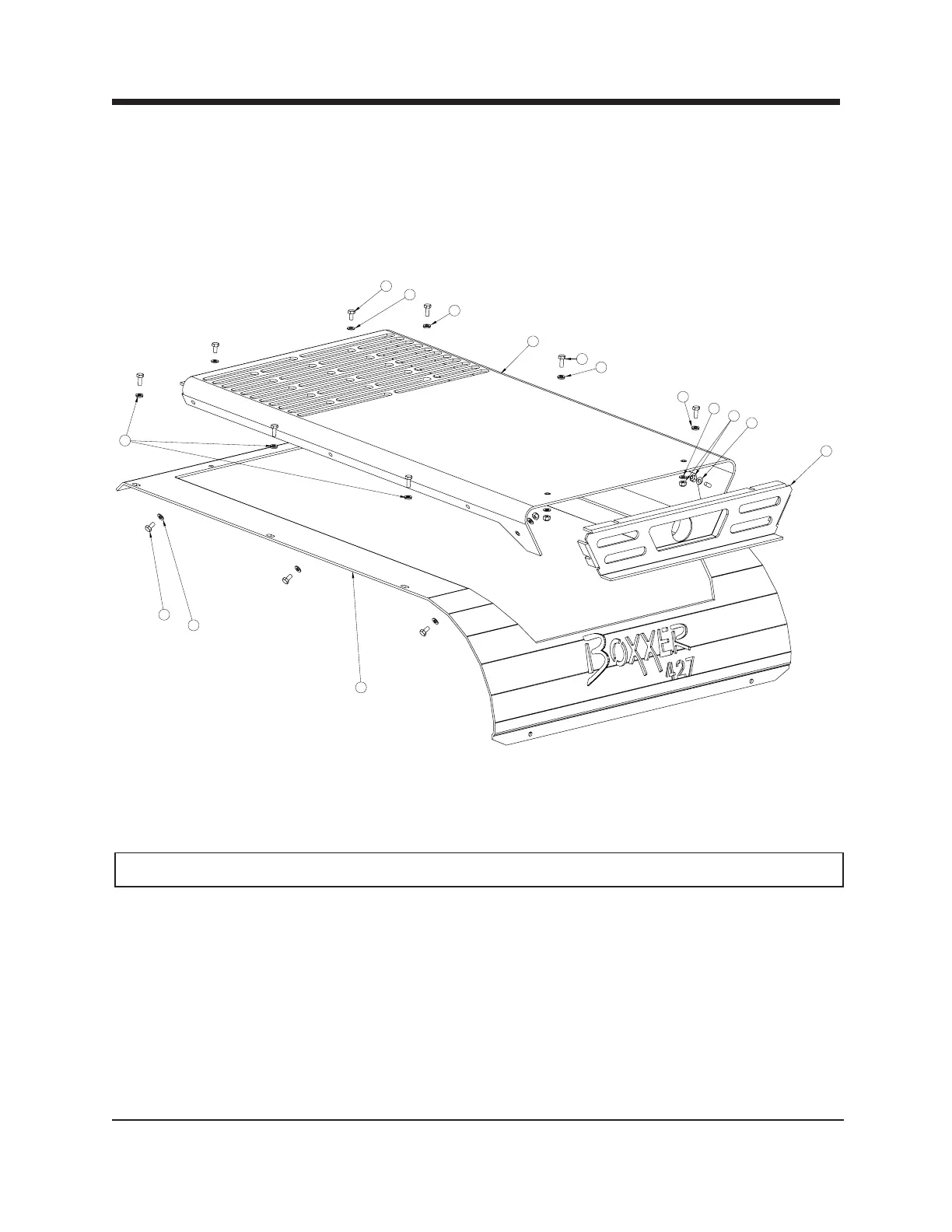

Figure 1-31 Top Cover Assembly
D-5586 Rev A
Top Cover Assembly Parts List
Item Part Number Description Qty
4
5
2
3
5
6
5
4
5
1
7
8
8
8
8
1 000-041-416 Cover, Top Machine - Boxxer 427 1
2 000-041-422 Cover, Brow - Boxxer 427 1
3 000-100-153 Panel, Brow End - Weldment - Boxxer 427 1
4 000-143-166 Screw, #10-24UNC x 0.38" Lg. Hex Head 8
5 000-174-001 Washer, #10 Flat 12
6 000-094-034 Nut, #10-24UNC Nylock 4
7 000-143-126 Screw, #10-24UNC x 0.50" Lg. Hex Head 6
8 000-174-036 Washer, #10 Flat Rubber Backed 6
