Boxxer 427 Page 1-83

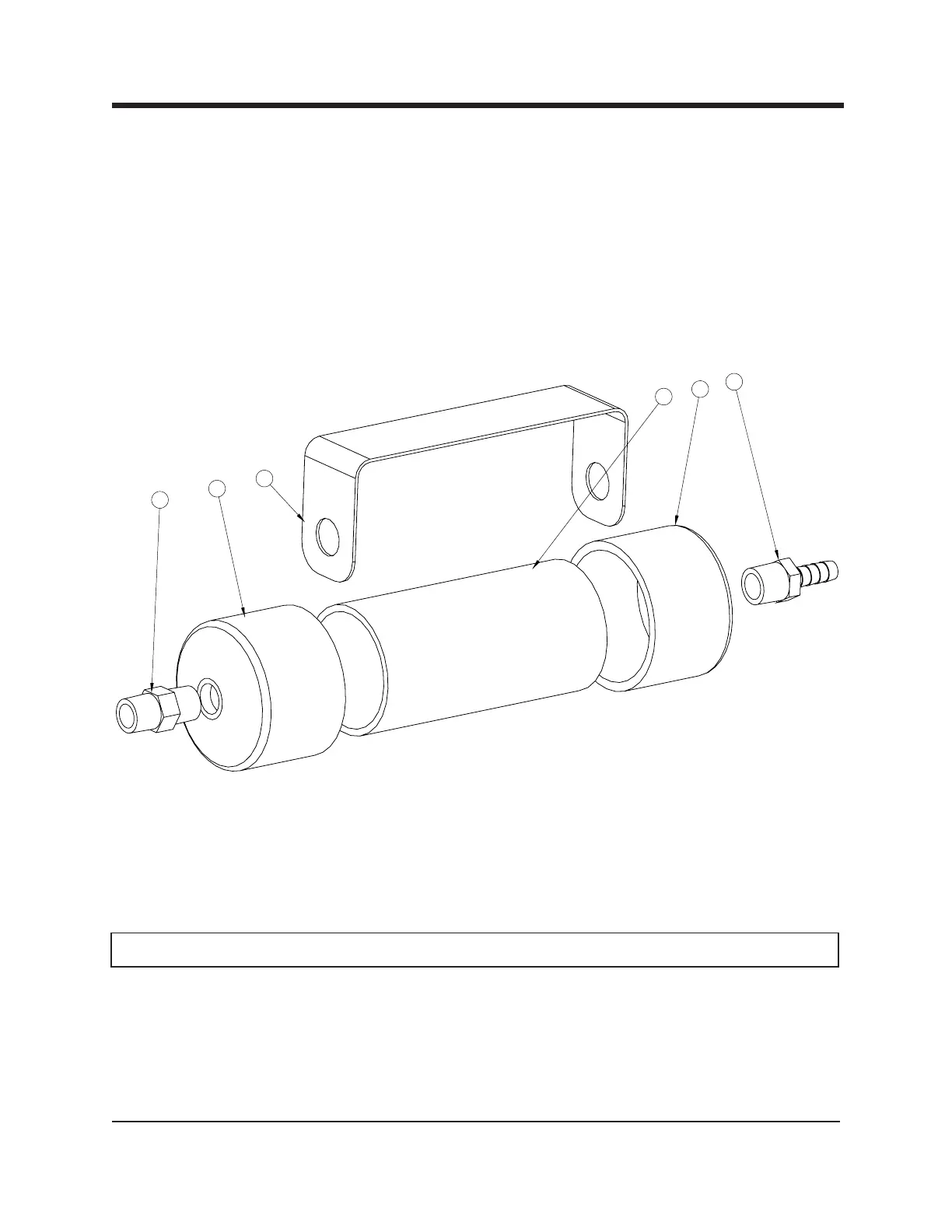

Figure 1-41 Diffueser Filter Assembly
C-6554 Rev -
5
4
2
3
4
1
Diffuser Filter Assembly Parts List
Item Part Number Description Qty
1 000-052-074 Nipple, 3/8" NPT Hex 1
2 000-033-131 Clamp, Diffuser - Boxxer 427 1
3 000-125-222 Tube, Diffuser - Boxxer 427 1
4 000-027-115 Cap, 2" PVC Modified For Diffuser - Boxxer 427 2
5 000-052-104 Insert, #66 (3/8" NPT x 3/8" Barb) 1
