5.7.3.

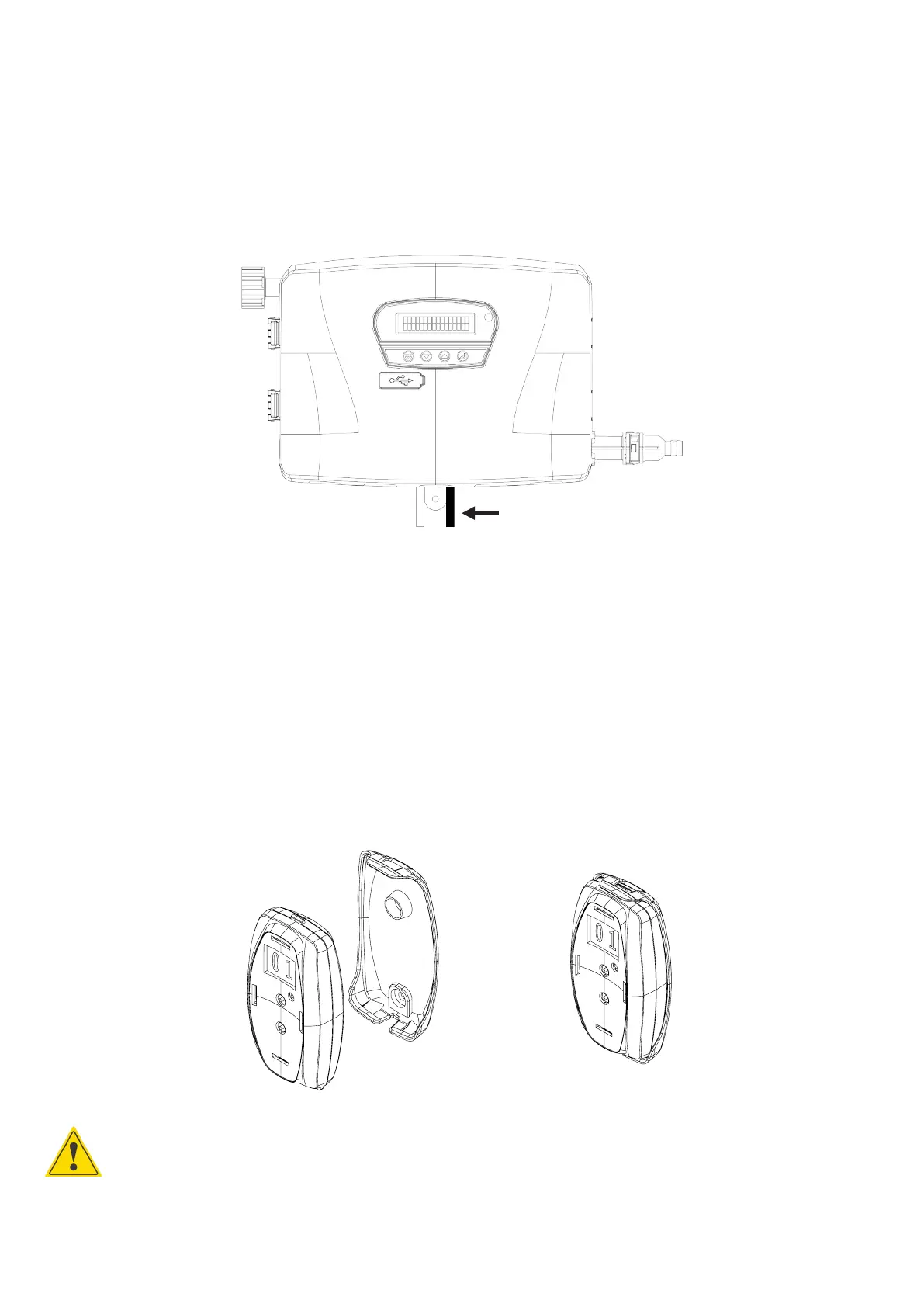

There is a handy wall bracket that allows the remote select to be mounted and removed as necessary. The wall bracket
can be installed using the double sided tape provided (front of machine) or using screws (wall), not supplied.
CAUTION
Wires left hanging loose may be a tripping hazard. Ensure all cables are secure. Be sure the tubing will be out of
the way of walkways and will not impede motion required in the area. Creating a low place in the run of tubing will
minimize drainage from the tubing.
5.7 Installation Step 7: Remote Select (optional)
5.6 Installation Step 6: Power
5.6.1.
Connect black power cable to power supply, ensuring correct polarity is followed; Brown is live and Blue is neutral.
5.6.2.
It is a legal requirement to allow disconnection of the appliance from the supply after installation. The disconnection
may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the
wiring rules.
5.7.1.
The remote select is typically located on the front of the laundry machine. This allows the machine operator to change
the formula as required. Once the formula has been selected the wash program can then be started.
5.7.2.
If purchased with the EvoClean, the remote formula select is installed using the flat flexible white cable already connected
to the EvoClean.
