Page 7 Hydro Systems Co. 2018
5.2 Installation Step 2: Incoming Water Supply
5.2.1.
Connect incoming water supply to EvoClean using fittings provided. This will either be a ¾’’ Female BSP swivel, or
15mm push-fit. Ensure the incoming water supply hose is supported so as not to create unnecessary force on the inlet.
5.2.2.
It is a legal requirement, if the unit is supplied from the water mains, that a backflow device is installed offering protection
equal or higher than the chemical class being used. This is to prevent back siphoning of non-potable substances into
the water mains.

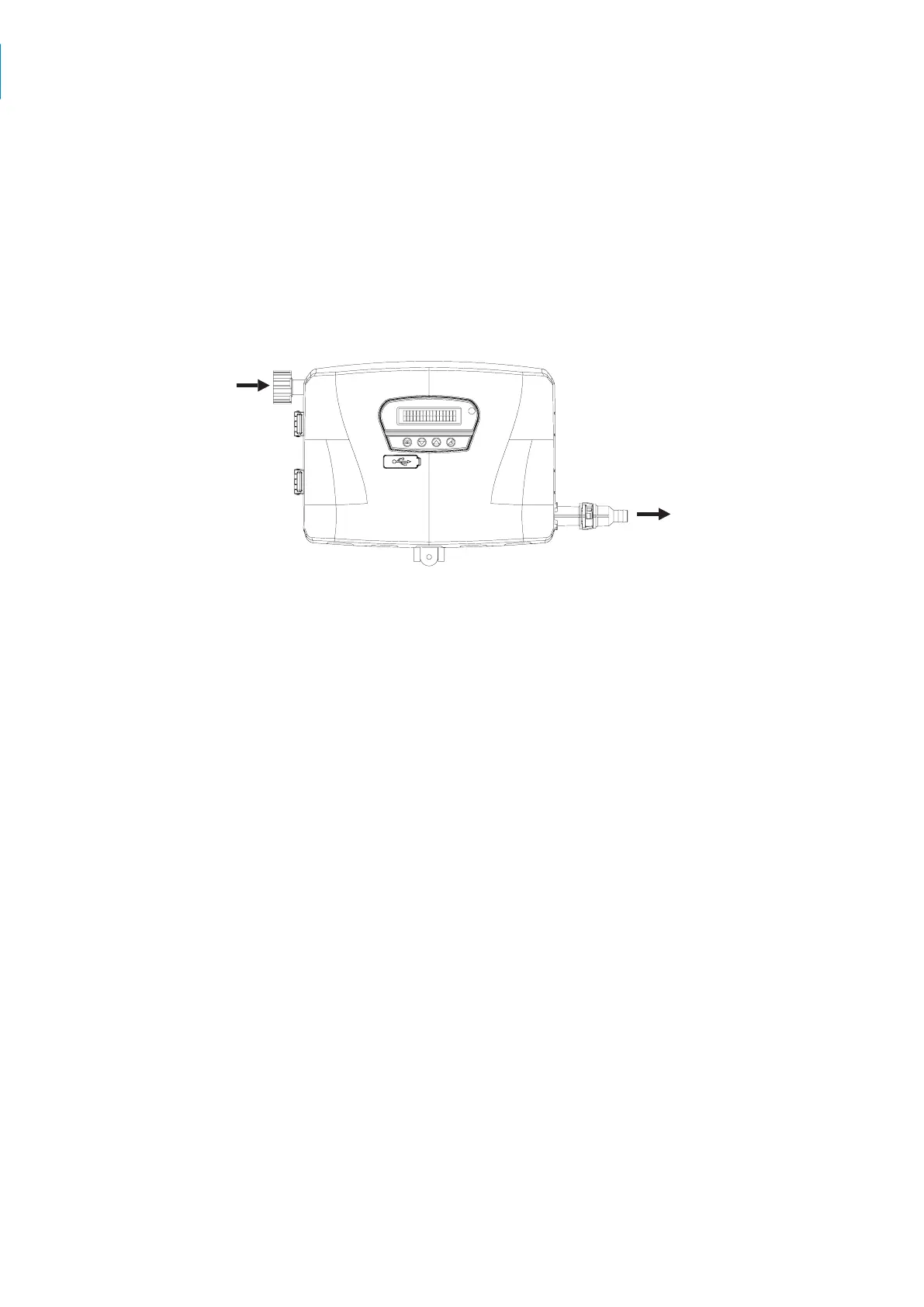

Note: It is possible to have the water inlet on either side of the dispenser but the outlet will always need to be on the right.
Water Outlet
Water Inlet
5.2.3.
Hose sets used to connect the EvoClean to the mains water supply must also be compliant with IEC 61770.
5.3.1.
Connect outlet (see above) to the washing machine using 12.7mm (½’’) or 13mm ID Flexible braided PVC Hose.
5.3.2.
Secure PVC hose to barb with cable tie.
Note: It is recommended that the delivery hose between the Evoclean and the washing machine be as short as possible. Any
vertical routes should be kept to a minimum.
5.3 Installation Step 3: Route Discharge Hose to Machine
To Next Page
