Page 6 Hydro Systems Co. 2018
5. installation and connection

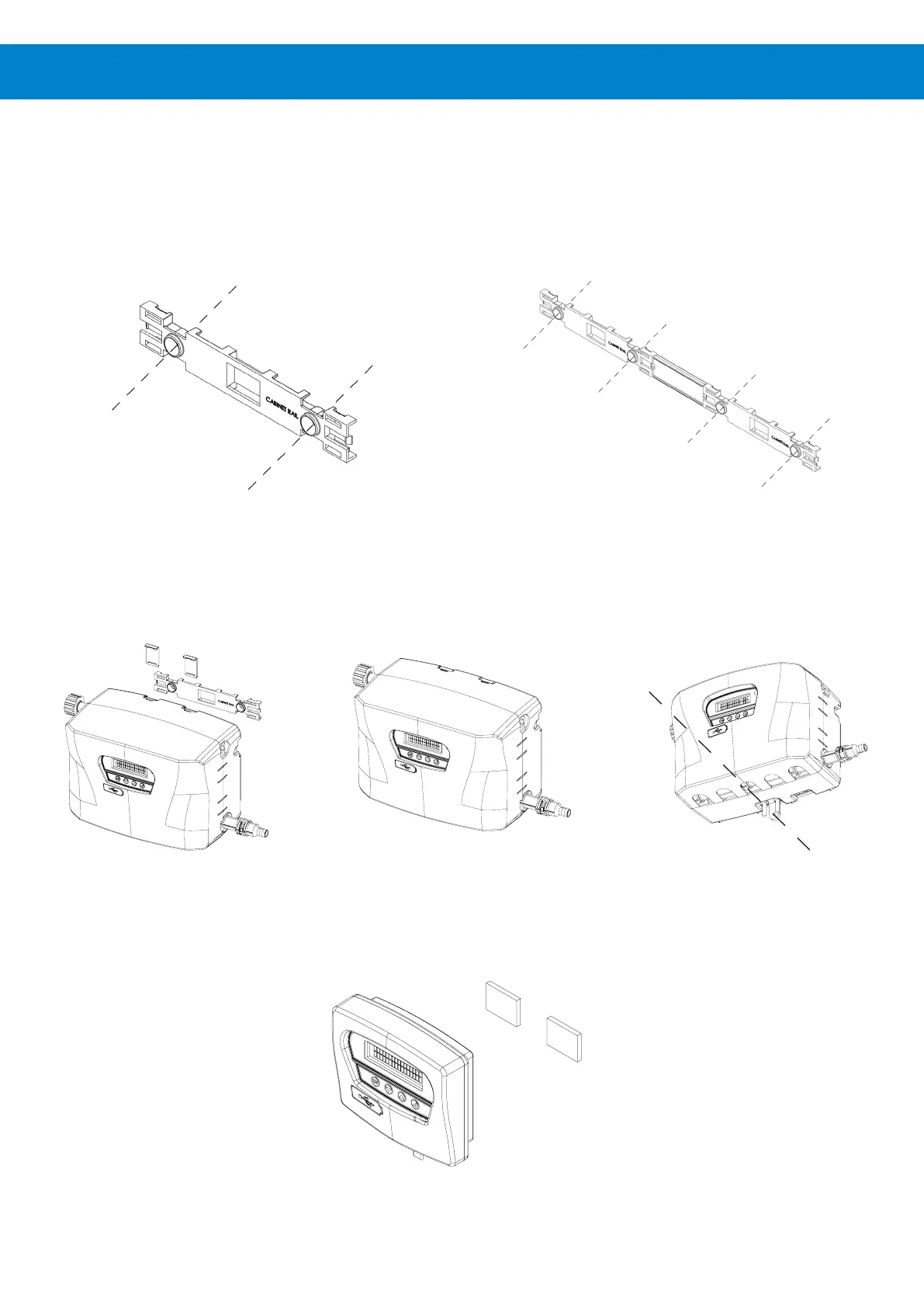

5.1 Installation Step 1: Site Survey and Mounting Kit
5.1.1.
Choose a location near to the laundry machine. Use the mounting bracket to mark the appropriate locations for the
mounting hardware. Use the mounting bracket as a hole template to mark the securing holes.
Mounting bracket: 4 product unit (Left), or 6/8 product unit including joins (Right)
5.1.2.
Wall anchors are provided, please ensure they are appropriate to the wall/surface being mounted to.
5.1.3
Mount the dispenser onto the mounting bracket. Push down the clips to secure the unit.
5.1.4.
Secure the dispenser at the bottom, with the remaining screw provided.
5.1.5.
If the unit is configured with the off-board controller, this can be mounted using the hook and loop tape supplied.
Note: Please secure any cables so as not to create a hazard for the operator.
