D.2120
®
Dura-Ware : 2120 Siphon Jet Toilet - On Floor - Floor Outlet
Acorn Engineering Company • 15125 Proctor Avenue • P.O. Box 3527 • City of Industry, CA 91744-0527 U.S.A.
Tel: (800) 488-8999 • (626) 336-4561 • Fax: (626) 961-2200 • www.acorneng.com • E-mail: info@acorneng.com
Please visit for most current specifications.www.acorneng.com
FLUSH VALVE OPTIONS (Must Specify)
*REFER TO ACORN DURA-WARE ACCESSORIES FOR FLUSH
VALVE COVER #2802, BOX #2803-1 AND PANEL #2898*
o -FV Flush Valve, Mechanical (N/A for ADA)
o -FVBO Flush Valve by Other
o -FVH Flush Valve, Hydraulic (N/A for Top Supply)
o -FVL Flush Valve, ADA Lever Handle
o -MVCFV Time-Trol Flush Valve (N/A for Top Supply)
FIXTURE MOUNTING AND WASTE (Must Specify)
-3 On-Floor, Floor Outleto
MODEL NUMBER AND OPTIONS SELECTION:
SUPPLY (Must Specify)
-T Top (Exposed)o
-W Wall (Concealed)o
BASE MODEL NUMBER
2120 Siphon Jet Toiletq
FLUSH VALVE GPFs (Must Specify)
o -1.28 GPF (HET)
o -1.6 GPF (Not Available in California)
o -3.5 GPF (Not Available in California)
WALL THICKNESS AND TYPE (Must Specify)
Thickness: ___________ Type: o Concrete o Block o Steel
3
3
2
3
4
"
(70)
15"
(381)
29"
(737)
14"
(356)
9"
(229)
18
3
4
"
(476)
4
1
4
"
(108)
4
1
4
"
(108)
2
1
3
4
5

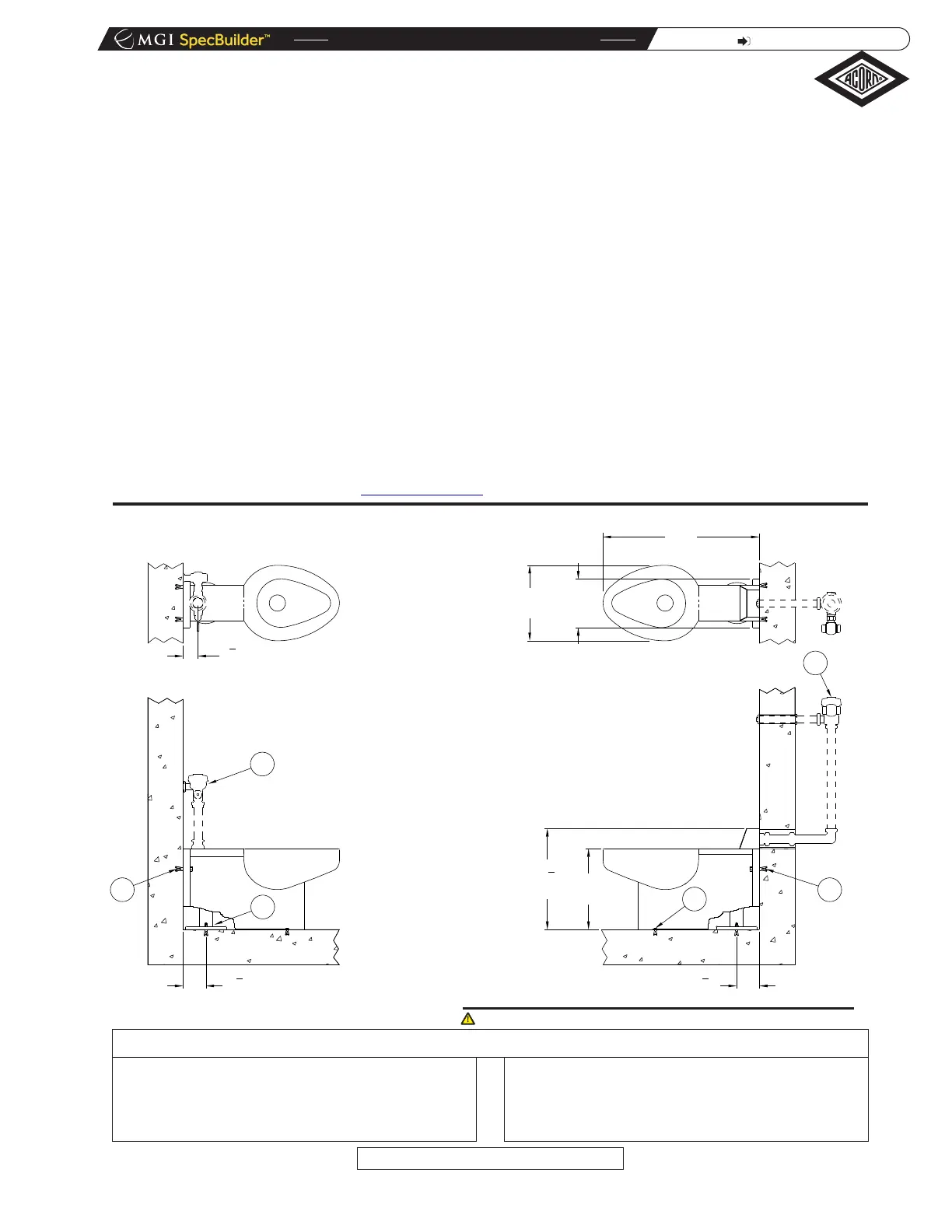

2120-W-32120-T-3
5
NOTES:
1. Optional -FV Flush Valve For
Concealed -W Wall Supply
2. Optional -FV Flush Valve For
Exposed -T Top Supply
3. Toilet Recessed Gasket Waste
Outlet
4. Floor Fasteners
5. Wall Mounting Hardware,
By Others
Get Started www.mgispecbuilder.comConfigure products and create specs with ease.
TOILET SEAT OPTIONS
o -HPS High Polish Integral Seat
o -HS-OFLC Hinged Seat, Open Front Less Cover
o -HS-OFWC Hinged Seat w/ Cover
o -PFS Punched for Seat by Others
TOILET OPTIONS
o -FT Flood-Trol (N/A with Top Supply)
o -FTA Flood-Trol Auto-Reset (N/A with Top Supply)
o -FTE Flood-Trol Electronic
o -FVT Flush Thru Wall Connector
o -TSC Toilet Shipping Cover
PRODUCT OPTIONS
o -ADA 18” Integral Seat Height
o -BCN Blind Cap Nuts (4)
o -BL Bedpan Lugs
o -CN Cap Nuts (4)
o -EG Enviro-Glaze Color Specify:__________
Toilet Interior & Exterior
o -EGE Enviro-Glaze Color Specify:__________
Toilet Exterior Only
o -FG 14 Gage Housing
o -TF Transformer, 120VAC to 24VAC (-MVCFV option)
o -VAC AcornVac System
