Hypertherm HyPro2000 Field Service Bulletin

20 Field Service Bulletin

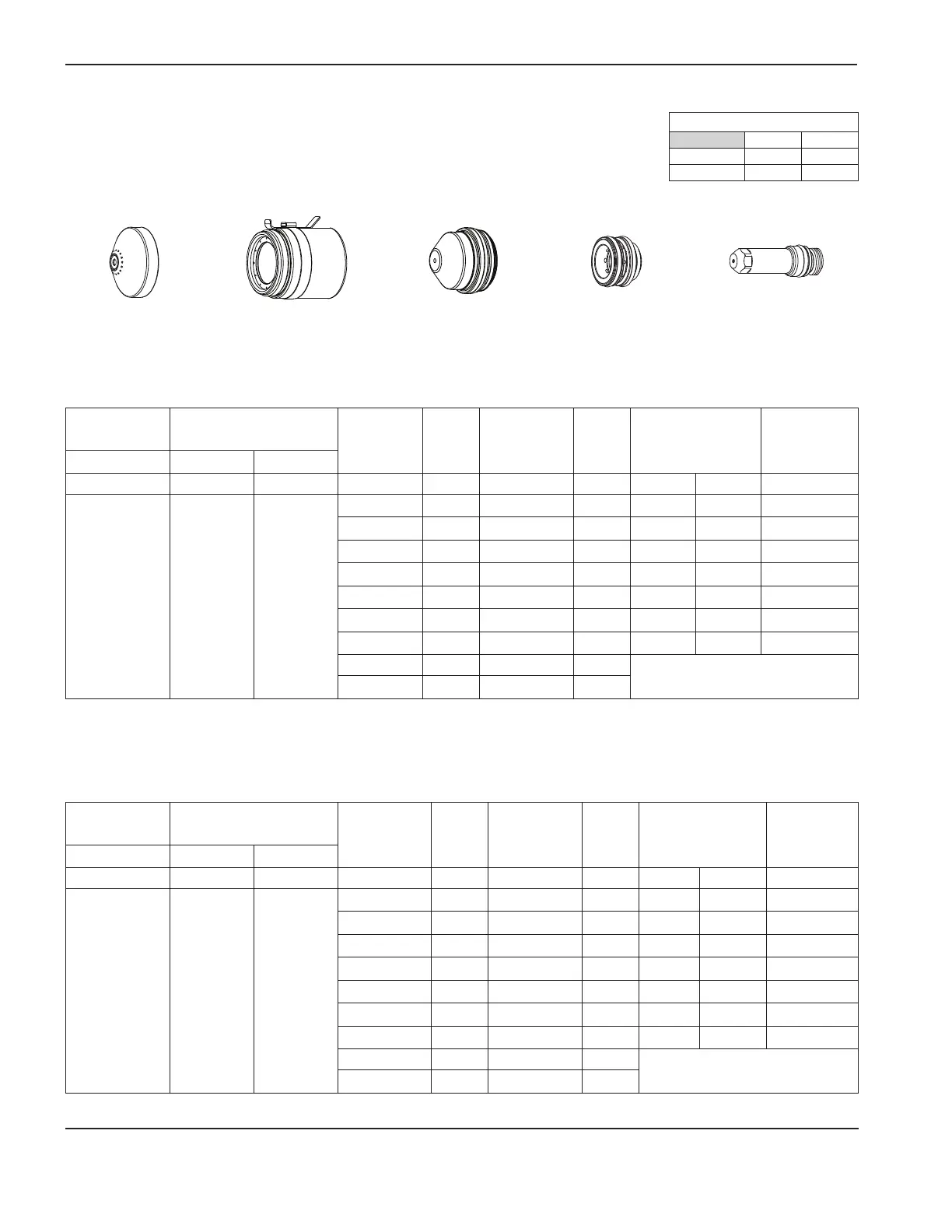

HyPro2000 — HT2000 TORCH UPGRADE
Mild steel
Air Plasma / Air Shield
130 A Cutting
Metric
English
Test Prefl ow
Flowrates
Test Cutfl ow
Flowrates
Material
Thickness
Arc
Voltage
Torch-to-Work
Distance
Cutting
Speed
Initial Pierce Height
Pierce Delay
Time
Prefl ow % Plasma % Shield (psi)
Air Air Air mm Volts mm mm/m mm factor % seconds
45 77 24
3 139 3.0 5350 6.0 200 0.1
4 137 3.0 4630 6.0 200 0.2
6 142 3.4 3865 6.8 200 0.3
10 148 4.1 2445 8.2 200 0.5
12 149 4.1 2045 8.2 200 0.5
15 153 4.4 1445 8.8 200 0.8
20 159 4.6 815 10.5 230 1.2
25 167 4.6 415
Edge Start
32 174 5.1 250
Flow rates – lpm/scfh
Air Air
Preflow 26 / 56 68 / 145
Cutflow 44 / 93 68 / 145
Test Prefl ow
Flowrates
Test Cutfl ow
Flowrates
Material
Thickness
Arc
Voltage
Torch-to-Work
Distance
Cutting
Speed
Initial Pierce Height
Pierce Delay
Time
Prefl ow % Plasma % Shield (psi)
Air Air Air in Volts in ipm in factor % seconds
45 77 24
0.135 140 0.12 220 0.24 200 0.1
3/16 136 0.12 160 0.24 200 0.2
1/4 144 0.14 150 0.28 200 0.3
3/8 148 0.16 100 0.32 200 0.5
1/2 149 0.16 75 0.32 200 0.5
5/8 154 0.18 50 0.36 200 0.8
3/4 158 0.18 35 0.42 230 1.2
1.0 167 0.18 15
Edge Start
1-1/4 174 0.20 10
220536 220487220936
220935
(No IHS tab)
220488220892
