4-2 powermax190c Service Manual
PARTS LIST
2

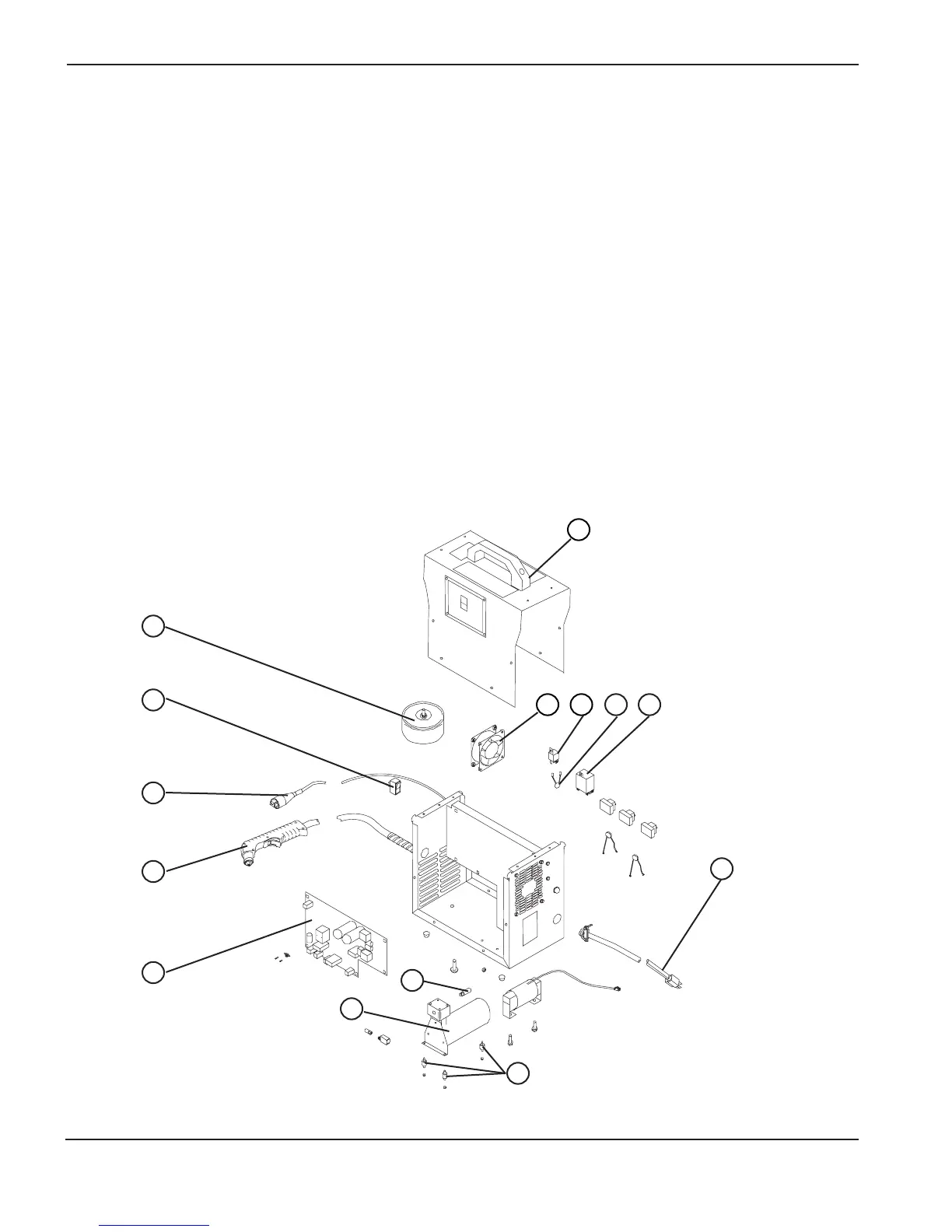

Powermax190c 120V Power Supply – 070068
Index No. Part No. Description Ref. Desig. Quantity
1 060136 Cover Assembly: Powermax190c 1
2 060006 Fan: Powermax190c 120/60 FM 1
3 060076 Relay: Powermax190c/350 30A 12V SPST CR2 1
4 060078 Thermistor: Powermax190c R1 1
5 060135 Relay: Powermax190c CR1 1
6 060138 Linecord: Powermax190c 120V 1
7 060134 Shock Absorber: Powermax190c 3
8 060131 Compressor AC1 1
9 011088 Filter: Powermax190c Compressor 1/8 NPT 1
10 060144 PCB Assy: Powermax190c 120V PC1 1
060155 Thermostat:PMX190C-120V NC 180F 1
11 070065 PAC105 Hand Torch Assembly (See page 4-4) 1
12 060133 Cable with clamp: Powermax190c work 1
13 060132 Switch: Powermax190c On/Off S1 1
14 060141 Transformer: Powermax190c 120/1/60 T1 1
1
2
3
4
5
6
7
8
10
11
12
13
14
9
