PARTS LIST
powermax190c Service Manual
4-5
4

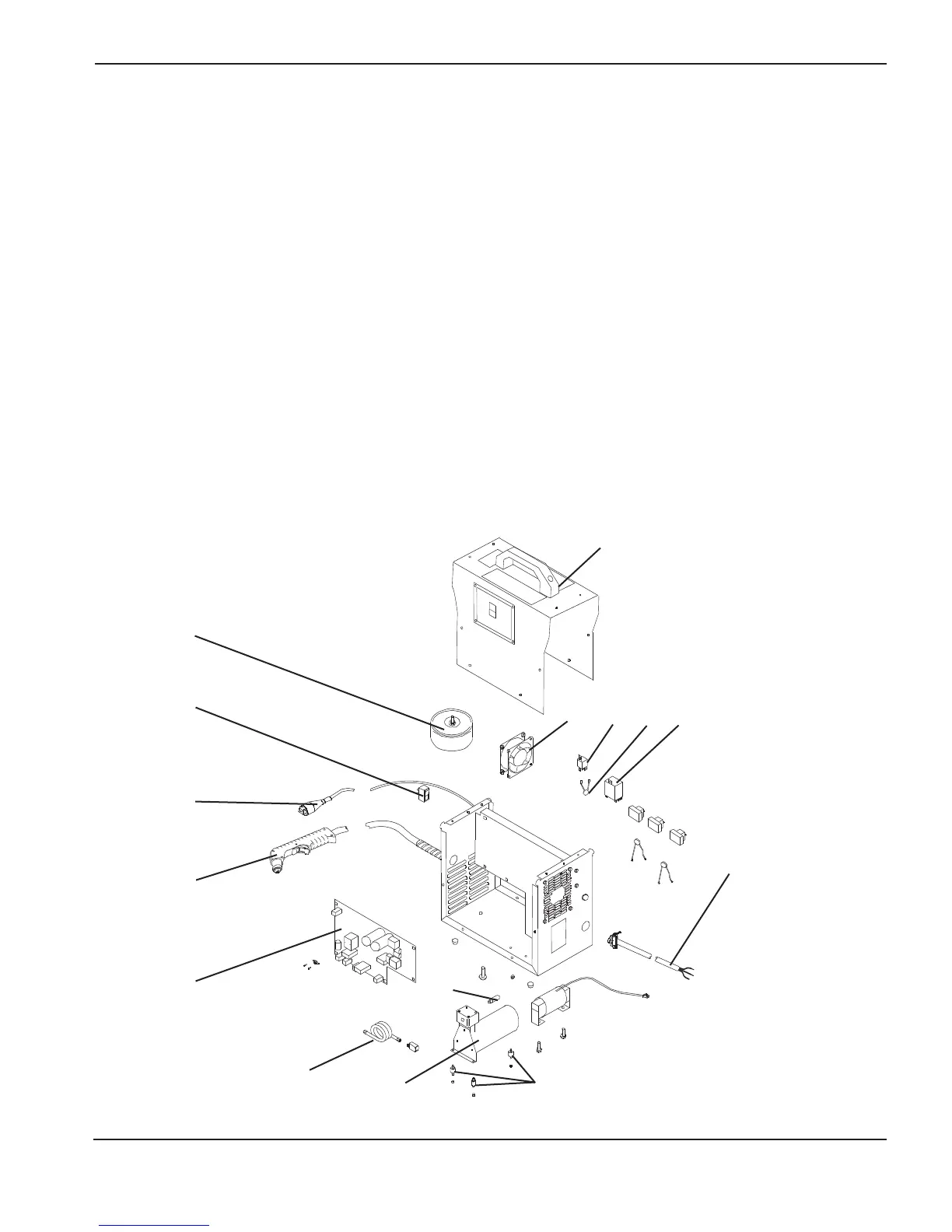

Powermax190c 230V Power Supply – 070786
Index No. Part No. Description Ref. Desig. Quantity
1 060153 Cover Assembly: Powermax190c - 230V (CE) 1
2 060142 Fan: Powermax190c 230/50 FM 1
3 060217 Relay: Powermax190c/350 30A 12V SPST CR2 1
4 060078 Thermistor: Powermax190c R1 1
5 060135 Relay: Powermax190c CR1 1
6 060145 Linecord: Powermax190c 230V 1
7 060134 Shock Absorber: Powermax190c 3
8 060215 Compressor AC1 1
9 128862 Compressor Cooling Coil 1
10 011088 Filter: Powermax190c Compressor 1/8 NPT 1
11 060218 PCB Assy: Powermax190c 230V PC1 1
060154 Thermostat:PMX190C-230V [CE] NC 195F 1
12 070065 PAC105 Hand Torch Assembly (See page 4-4) 1
13 060133 Cable with clamp: Powermax190c work 1
14 060151 Switch: Powermax190c On/Off, 230V, 2-pole S1 1
15 060143 Transformer: Powermax190c 230/1/50 T1 1
060161 Inductor: Powermax 190c
a
c
b
i
j
k
l
m
n
o
h
g
f
ed
To Next Page
