HYPERVOLT Home 2.0 - Reconnecting and Refitting LED Plate

12
Installation: Refitting the LED Plate
STEP 7

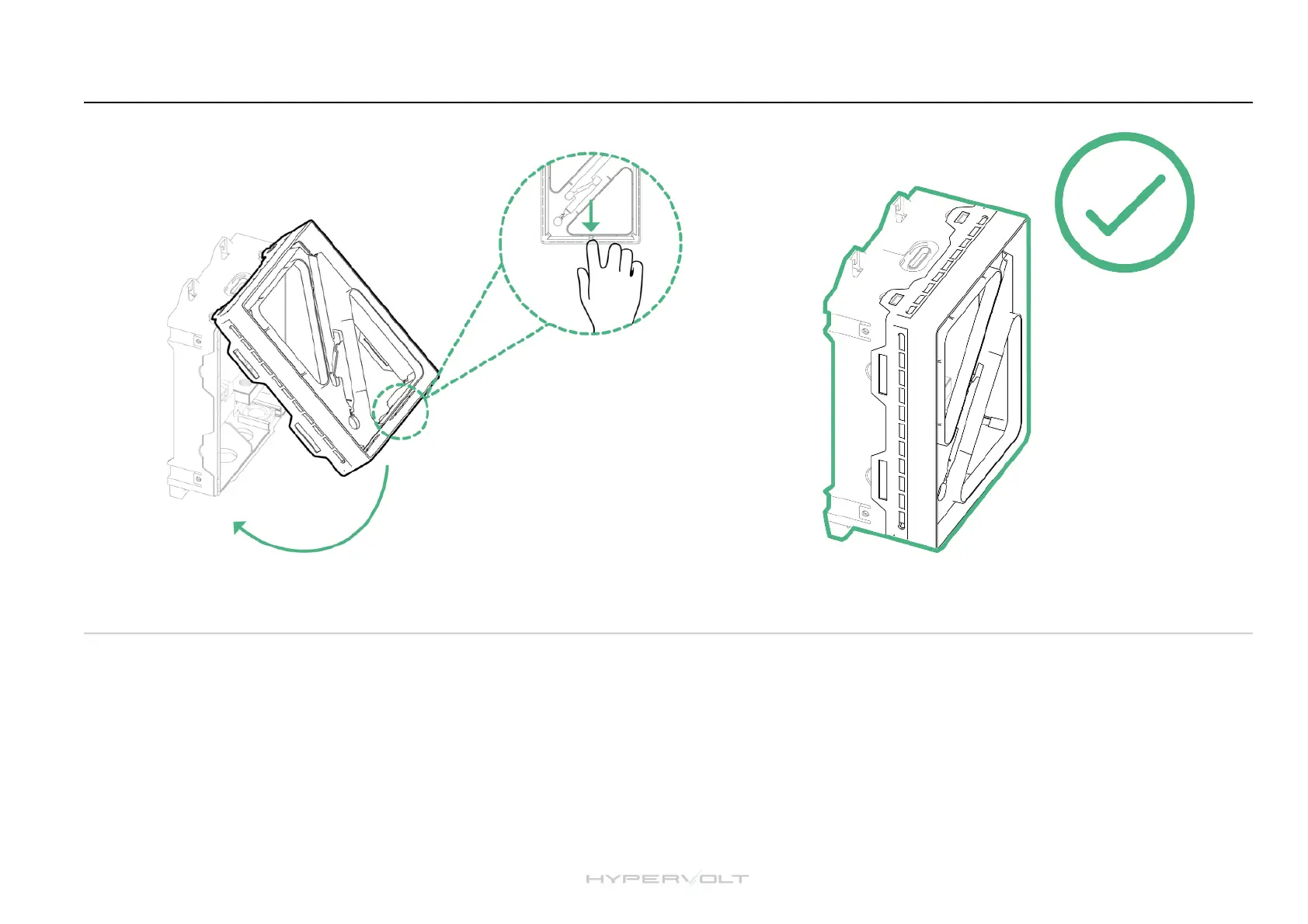

Once you have finished wiring in your Hypervolt charger, you will need to re-fit the LED plate (B). First reconnect the square white LED cable connector back together,
it should click. Put the top two tabs of part (B) over their locators on the top side of the back box (A). Now pull down on the middle bottom edge of part (B) and click
the bottom into place. Take care not to trap any cabling between parts A & B.
