STEP 3

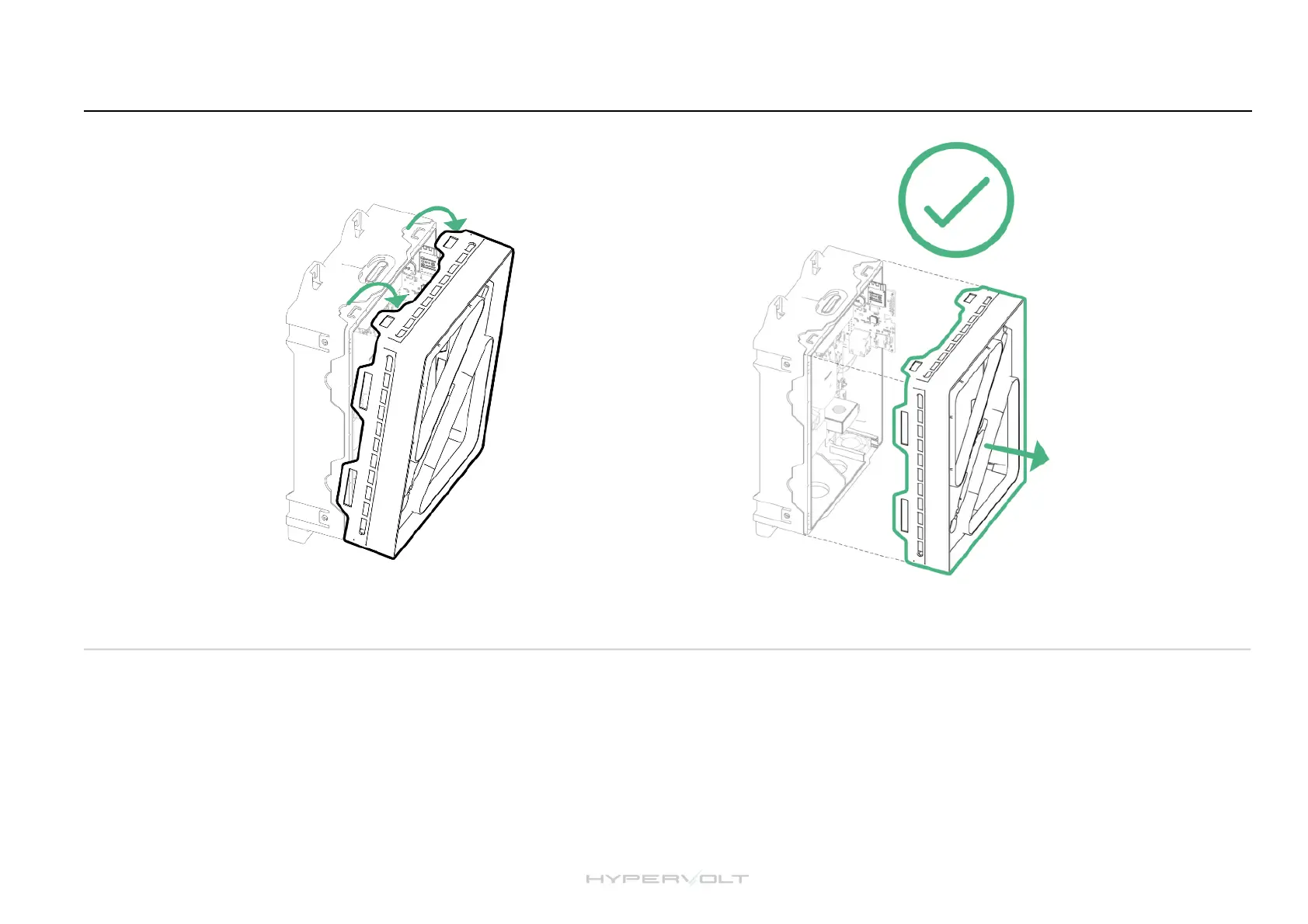

The Hypervolt has a removable LED plate which should be removed to access the connections and then replaced before the front enclosure (C) is fitted.!
To remove simply pull up on the top two tabs and unhook the plate. !
Separate the square white cable joint behind pressing down on the latch to release it. The unit will be shipped with this connector already disconnected however still
take care on first removal just in case.!
Put the LED Plate back in the box to keep it save until you refit it.!
