HyperX cloud ii User Manual

Microphone Transducer type: Condenser (back electret)
Operating principle: Pressure gradient
Polar Pattern: Cardioid
Power supply: AB powering
Supply voltage: 2V
Current consumption: Max 0.5 mA
Nominal impedance: ≤2.2 k ohm +/- 30%
Open circuit voltage at f = 1 kHz 20 mV / Pa
Frequency response: 50 – 18,000 Hz (microphone)
T.H.D: 2% at f = 1 kHz
Max. SPL: 105dB SPL (THD ≤ 1.0% at 1KHz)
Microphone output: -39+/-3dB
Dimensions: 6*5mm
Length mic boom: 150MM(include gooseneck)
Capsule diameter: 6mm

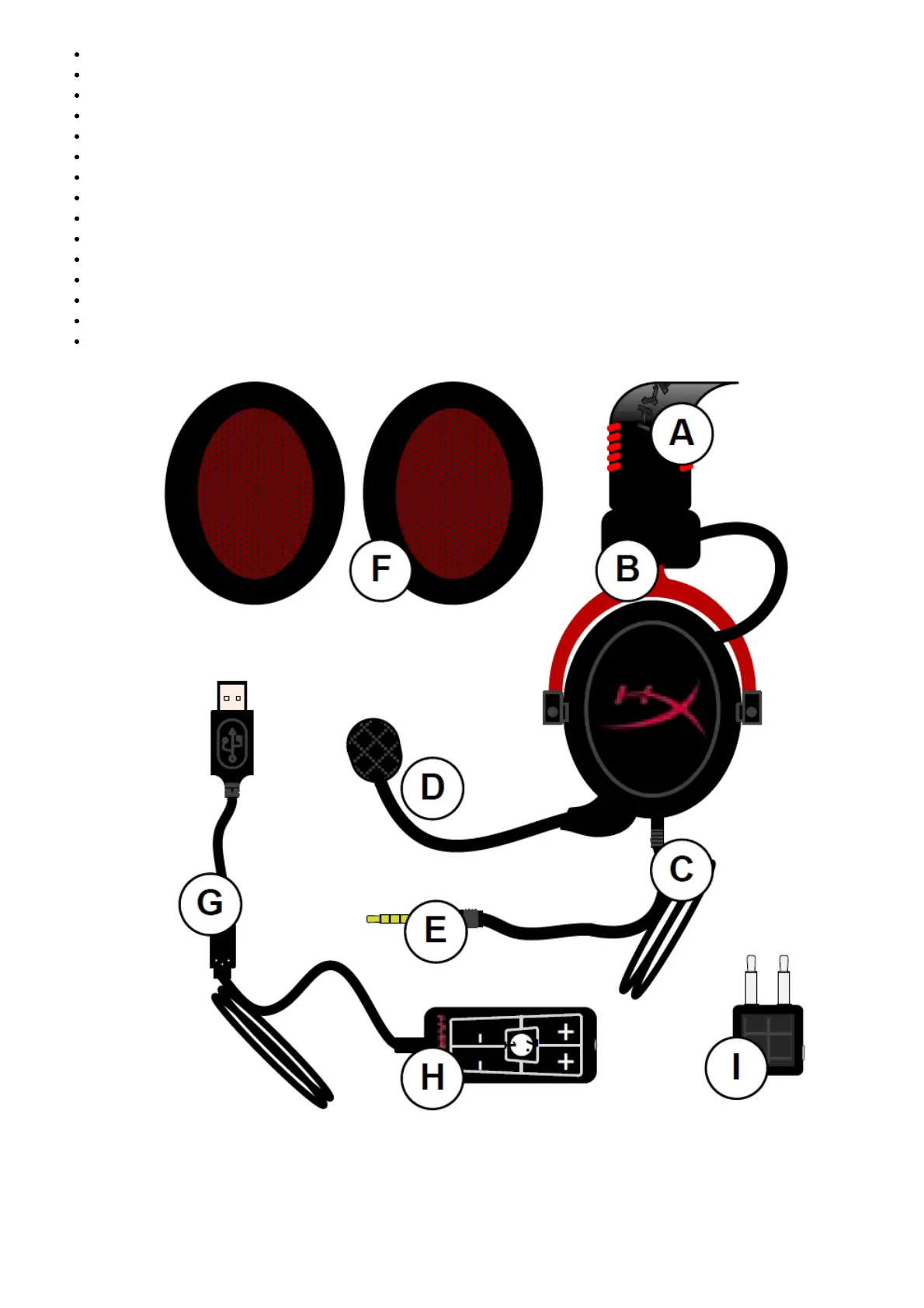

Overview
A. Leatherette headband w/ HyperX logo
B. Aluminum arm to adjust headband
C. Attached cable w/ 3.5mm input jack
D. Detachable microphone with adjustable arm and condenser
E. 3.5mm audio input jack

HyperX cloud ii Specifications

General

Cable length	1 m
Headset type	Binaural
Product type	Headset
Plug and Play	Yes
Product color	Black, Red
Wearing style	Head-band
Control unit type	External control unit
Recommended usage	Gaming
Compatible products	PC\\r Mac\\r PS4\\r Xbox One
Registered	No
Memory layout	1 x 0 MB
Power handling	0.15 W
Internal memory	0 MB
Transducer type	Back electret condenser
Capsule diameter	6 mm
Current consumption	0.5 mA
Operating principle	Pressure gradient
Module configuration	(N/A) (N/A)
Open circuit voltage	20 mV/Pa
Power supply voltage	2 V
Audio output channels	7.1 channels
Extension cable length	2 m
Microphone boom length	150 mm
Sound pressure level (nominal)	98 dB
External control unit interface	USB
Weight (with microphone and cable)	350 g
Impedance	60 Ω
Driver type	Dynamic
Driver unit	53 mm
Magnet type	Neodymium
Ear coupling	Circumaural
Headphone frequency	15 - 25000 Hz
Total Harmonic Distortion (THD)	2 %
Material	Memory foam, Plastic
Connectivity technology	Wired
Microphone type	Boom
Microphone frequency	50 - 18000 Hz
Microphone sensitivity	-39 dB
Microphone connectivity	3.5 mm
Microphone direction type	Cardioid
Microphone input impedance	2200 Ω
Quantity	1
Headband pressure	5 N

Weight and Dimensions

Weight	320 g
