HyperX cloud ii User Manual

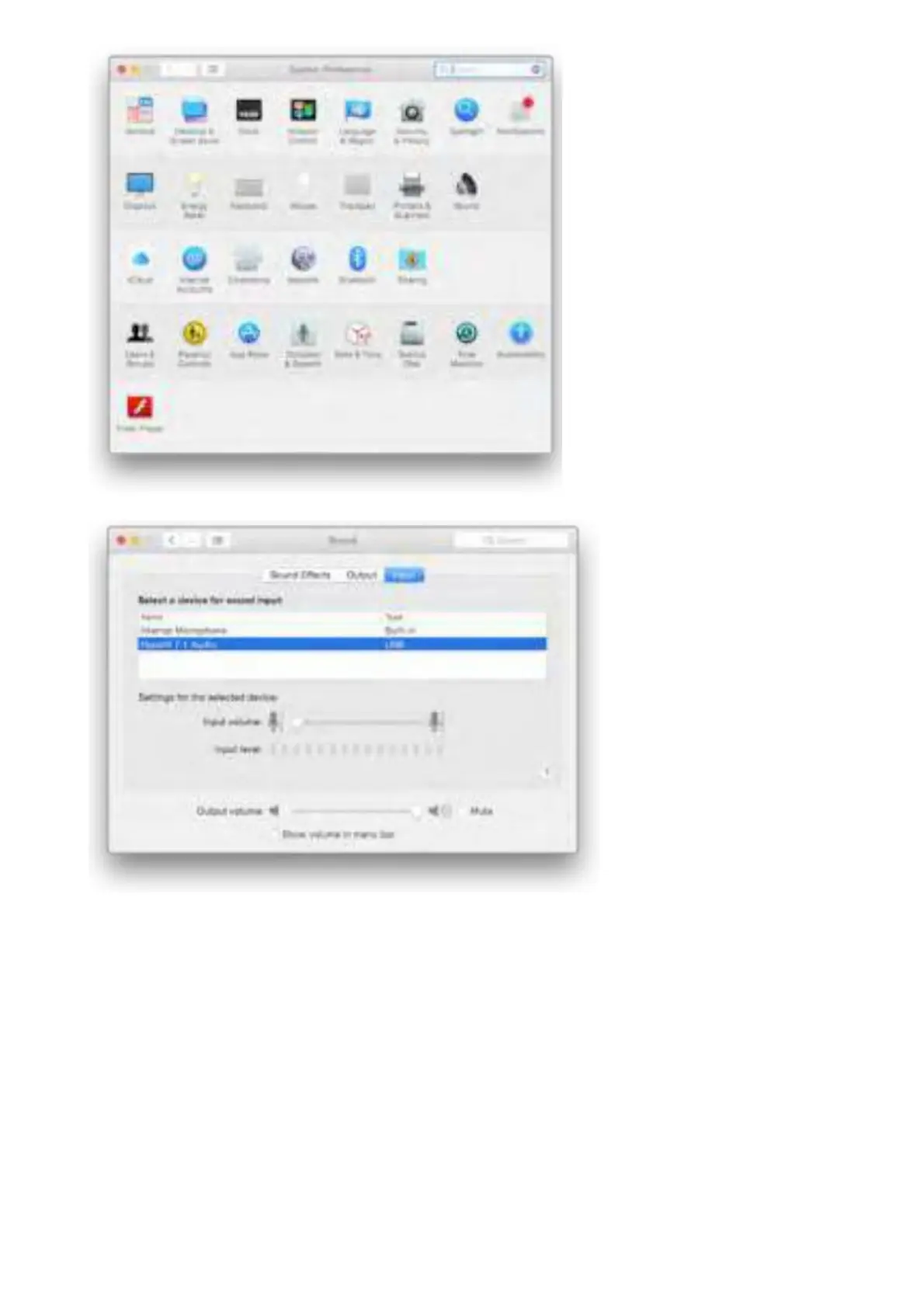

3. Click on the Input tab and select “HyperX 7.1 Audio” for default sound input.
4. Click on the Output tab and select “HyperX 7.1 Audio” for default sound output.
Usage (PlayStation® 4)
For optimal use with PlayStation® 4 (PS4®), unplug the headset jack from the USB control box and connect audio
jack on the headset directly to the PS4 game controller and follow these steps:
1. Turn on your PS4® game console.
2. Navigate to the Settings Menu and select it.
3. Highlight the ‘Devices’ menu option and select it.
4. Scroll down to ‘Audio Devices’ and select it.
5. Choose ‘Output to Headphones’ and select ‘ All Audio.’
PlayStation 4
(USB Control Box not needed)

HyperX cloud ii Specifications

General

Cable length	1 m
Headset type	Binaural
Product type	Headset
Plug and Play	Yes
Product color	Black, Red
Wearing style	Head-band
Control unit type	External control unit
Recommended usage	Gaming
Compatible products	PC\\r Mac\\r PS4\\r Xbox One
Registered	No
Memory layout	1 x 0 MB
Power handling	0.15 W
Internal memory	0 MB
Transducer type	Back electret condenser
Capsule diameter	6 mm
Current consumption	0.5 mA
Operating principle	Pressure gradient
Module configuration	(N/A) (N/A)
Open circuit voltage	20 mV/Pa
Power supply voltage	2 V
Audio output channels	7.1 channels
Extension cable length	2 m
Microphone boom length	150 mm
Sound pressure level (nominal)	98 dB
External control unit interface	USB
Weight (with microphone and cable)	350 g
Impedance	60 Ω
Driver type	Dynamic
Driver unit	53 mm
Magnet type	Neodymium
Ear coupling	Circumaural
Headphone frequency	15 - 25000 Hz
Total Harmonic Distortion (THD)	2 %
Material	Memory foam, Plastic
Connectivity technology	Wired
Microphone type	Boom
Microphone frequency	50 - 18000 Hz
Microphone sensitivity	-39 dB
Microphone connectivity	3.5 mm
Microphone direction type	Cardioid
Microphone input impedance	2200 Ω
Quantity	1
Headband pressure	5 N

Weight and Dimensions

Weight	320 g
